DVB-S DVB-S2 to asi 7in1 receiver (6*DVB-S DVB-S2+ASI IN,ASI out)

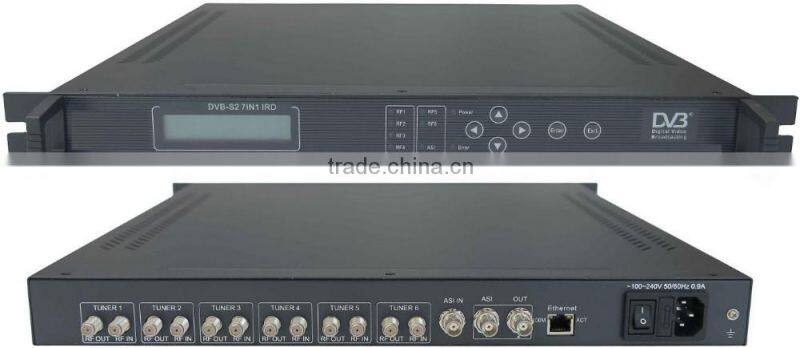

6*DVB-S/S2+ASI IRD with multiplexer
Overview
6*DVB-S/S2+ASI IRD with Multiplexer can receive 6 channels DVB-S/S2 signal (RF) and one ASI signal to multiplex, and output 2 DVB transport streams (TS/ASI). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling.
Technical Specification
Input |
6×RF |
6*DVB-S/S2 Transponders input |
ASI |
BNC interface |
|
Frequency |
DVB-S/S2 950MHz~2150MHz |
|
Symbol Rate |
1~45Mbaud/s |
|
Output |
2×ASI |
DVB standard, BNC interface, MPTS |
In-built multiplexer |
7in1 multiplexer |
|
Error Correction Coding |
RS coding 188/204 |
|
Multiplexer |
6 RF+1 ASI multiplex to ASI out |
|
Output LEV |
≥115dBmV |
|
Impedance |
75Ω |
|
Edit |
PSI/SI, PID value, program name, program number |
|
NIT |
Generate and insert |
|
Control |
NMS (Ethernet Port), Keyboard + LCD |
|
General Features |
Size |
482mm×280mm×44mm |
Temperature |
0~45°C (Operation); -20~80°C (Storage) |
|
Power |
220VAC (±10%), 50/60Hz |
|
Order Guide
2113 |
6×RF (DVB-S/S2)+ASI in, ASI out |
2133 |
DVB-S/S2 8in1 IRD with multiplexer(8 DVB-S/S2 RF IN,ASI out) |
Network Management Software

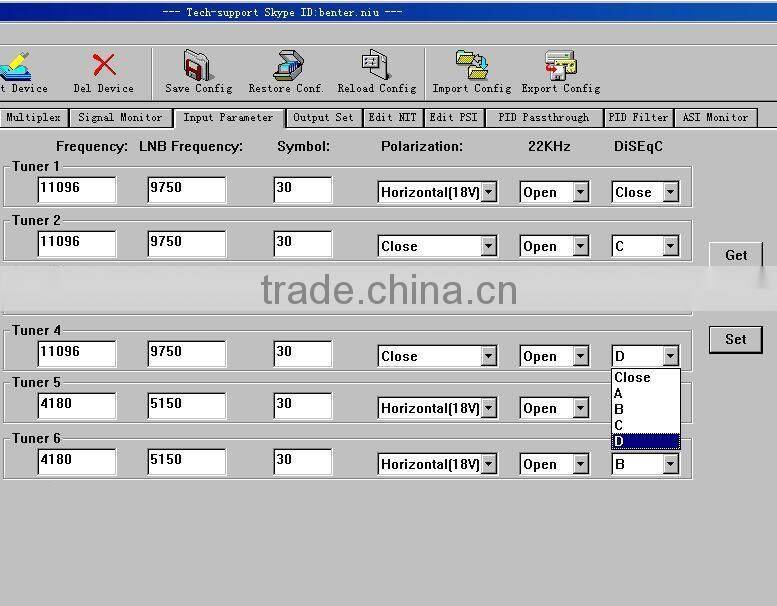

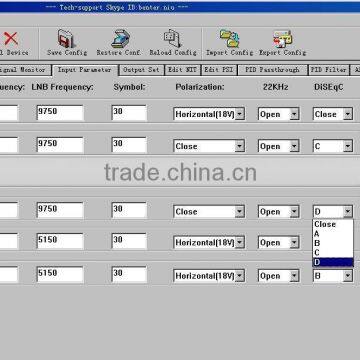

Satellite dvb-s/s2 frequency setting:

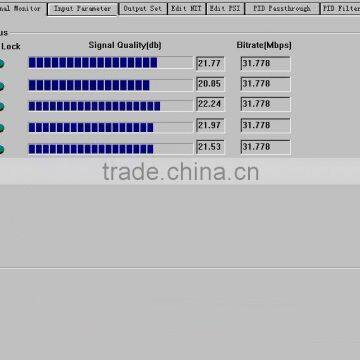

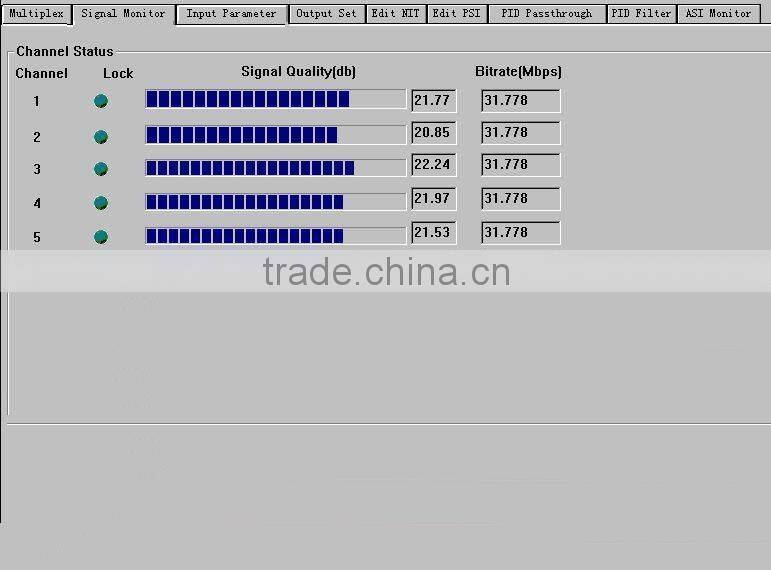

Satellite dvb-s/s2 input signal monitor:

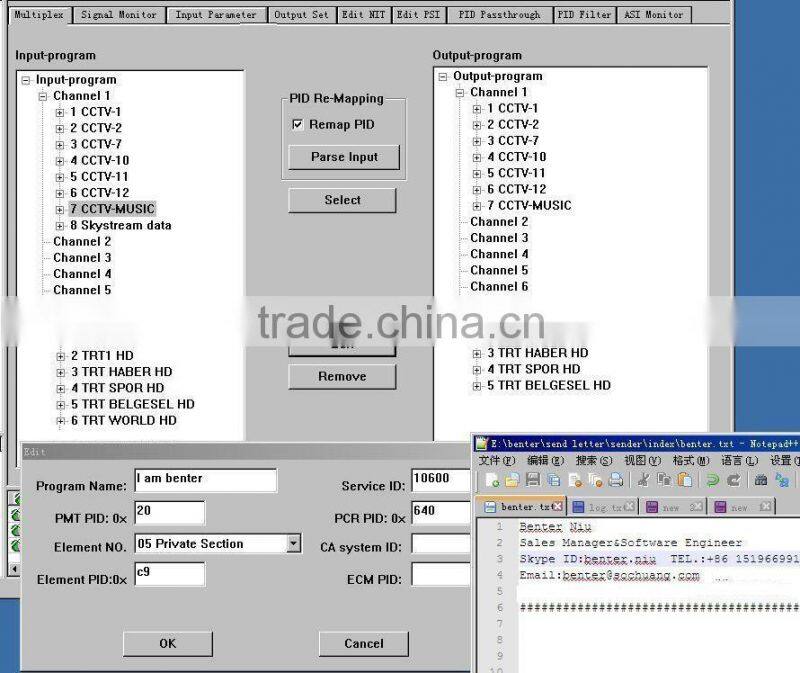

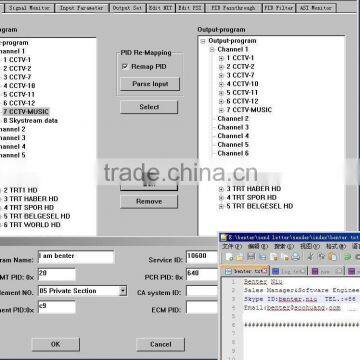

Programs multiplexer:

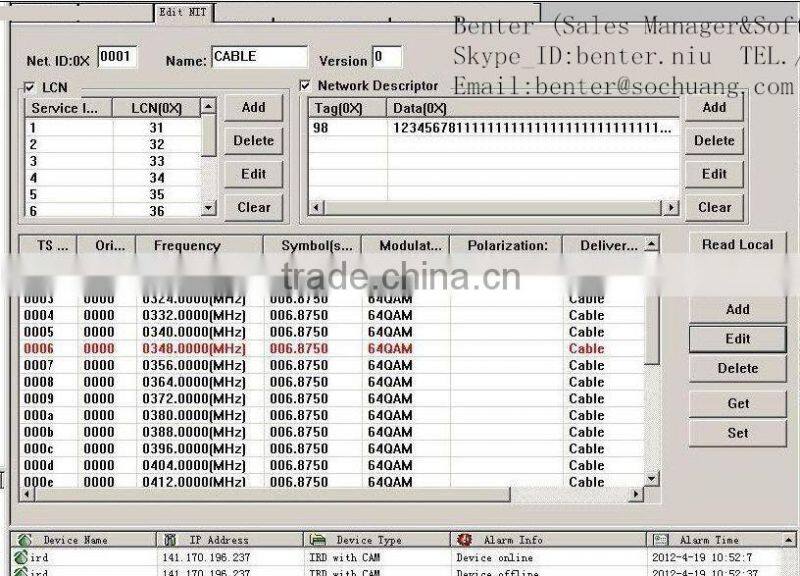

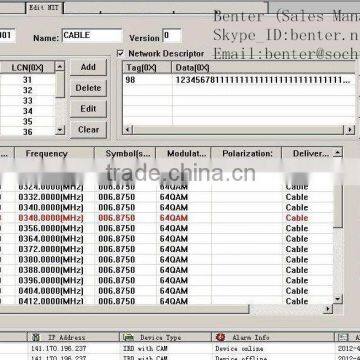

NIT edit:
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
