China Automatic 3d Wood Door Making Cnc Router , Wood Carving Machine With Aluminium Composite Panel for Sale

China Automatic 3d Wood Door Making Cnc Router , Wood Carving Machine With Aluminium Composite Panel for Sale photo-1
China Automatic 3d Wood Door Making Cnc Router , Wood Carving Machine With Aluminium Composite Panel for Sale photo-2
China Automatic 3d Wood Door Making Cnc Router , Wood Carving Machine With Aluminium Composite Panel for Sale photo-3

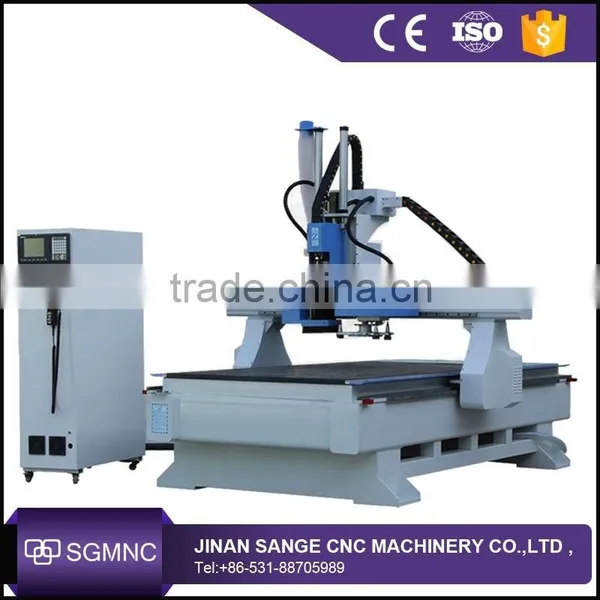

China Automatic 3d Wood Door Making Cnc Router , Wood Carving Machine With Aluminium Composite Panel for Sale photo-4

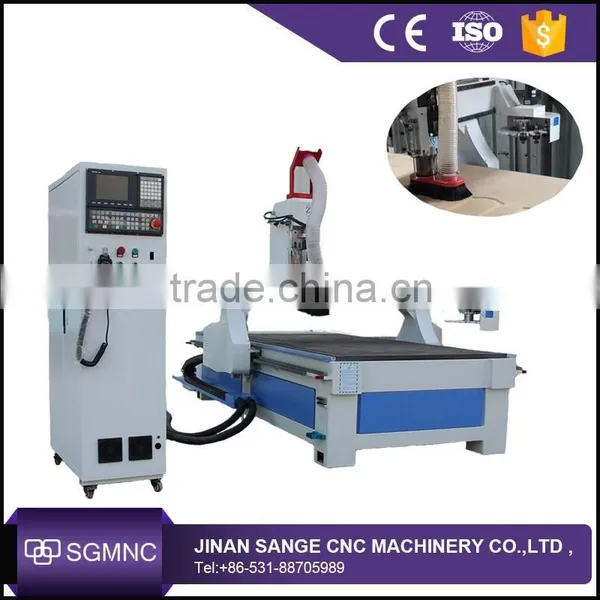

China Automatic 3d Wood Door Making Cnc Router , Wood Carving Machine With Aluminium Composite Panel for Sale photo-5

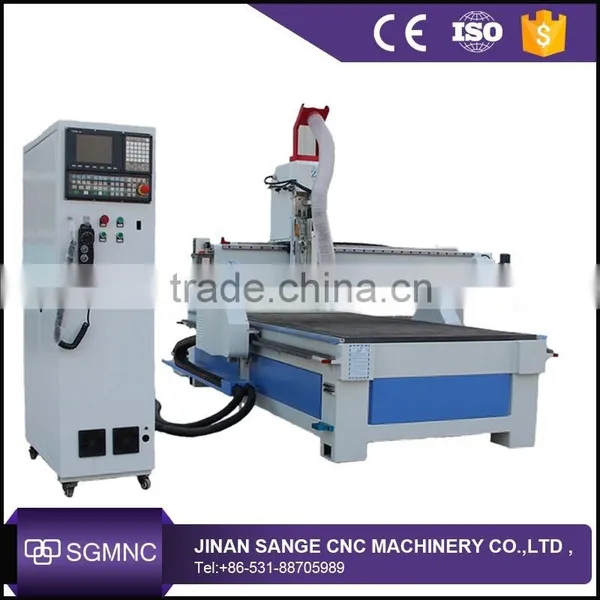

China Automatic 3d Wood Door Making Cnc Router , Wood Carving Machine With Aluminium Composite Panel for Sale photo-6
US$ 8,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name Sange
Model Number SG-13225-3
Voltage 3phase AC380V/50HZ
Power(W) 4.5KW
Dimension(L*W*H) 1300*2500*200mm
Weight 1800KG
Certification CE ISO9001,FDA,SGS,CIQ
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

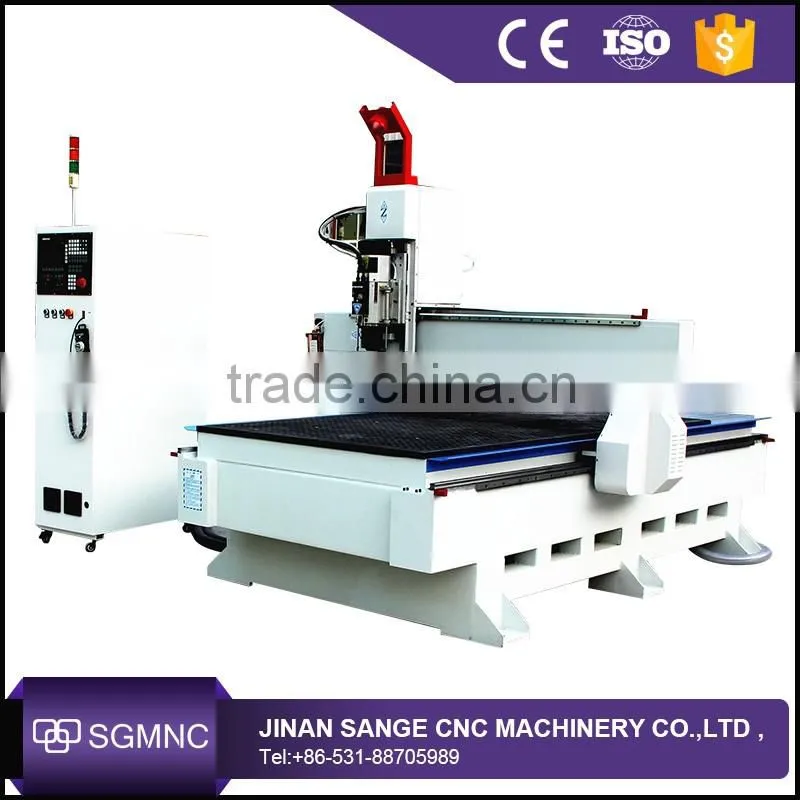

China automatic 3d wood door making cnc router , wood carving machine with aluminium composite panel for sale



This 1325 atc cnc router specailized in processing kinds of furnitures(wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF),with 8 tools can automatic change tools easily,save the changeing tools' time.

China automatic 3d wood door making cnc router , wood carving machine with aluminium composite panel for sale



parameter of wood carving machine

Model
1325 atc wood carving machine
Working Area
1300*2500*200mm
Table Size
1300*2500mm
Transmission
X/Y rack and pinion drive, Z ball screw drive
Motor
Japan YASKAWA servo motor and driver
Spindle
9kw Italy air cooling spindle
Speed
24000rpm/min
Rails
Taiwan CSK /HIWIN square rails
Table Type
vacuum absorption t-slot table with 135 vacuum holes
Travel Speed
0-40m/min
Working Speed
0-25m/min
Reposition Accuracy
0.005mm
Control System
Taiwan Syntec
Command code
G code,HPGL,U00,mmg,plt,
Design software
ARTCAM/TYPE3/ CAD/CAM
Working Voltage
AC380v 3phase/50HZ
Temperature
0-45℃
Automatic tool changer
Disc 8 pieces tool changer



Main Features

1)This wood carving machine’s bed structure using generous walled tube T-type structure,tempering and vibration aging treatment with import 5 axis metal milling precision machining centers.

2)The whole structure with side mount rails,with high performance and precision,dust-proof design of the whole structure of the rack rails with sub-type structure ,rail replacement without professionals,more convenient.

3)Three spindles can automatic change to save time and only set origin one time,avoid tool marks.

China automatic 3d wood door making cnc router , wood carving machine with aluminium composite panel for sale



China automatic 3d wood door making cnc router , wood carving machine with aluminium composite panel for sale

welcome to visit our factory
