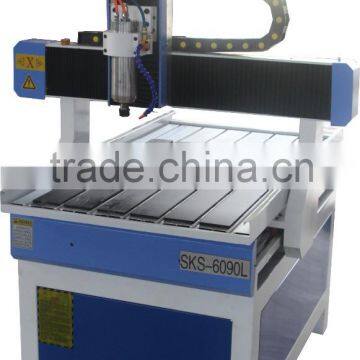

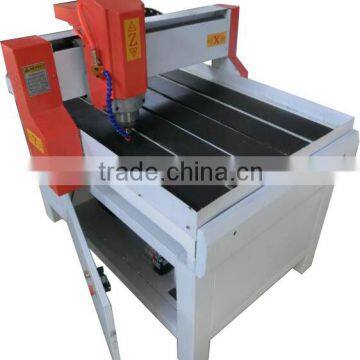

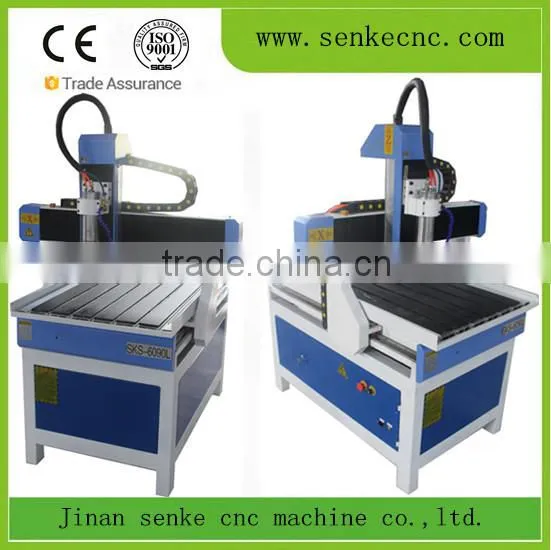

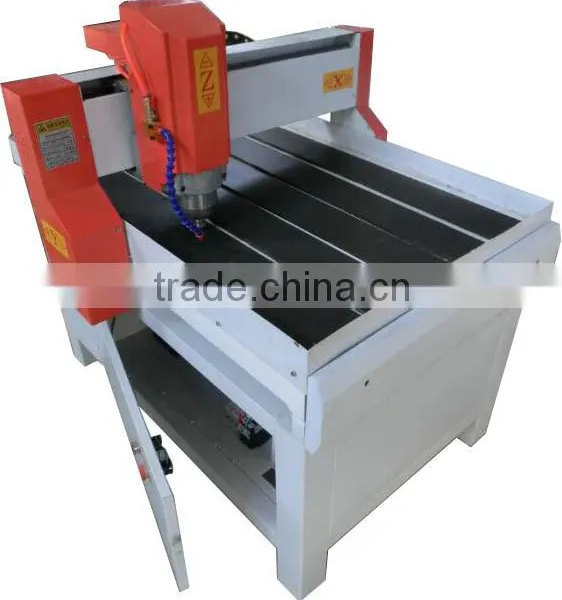

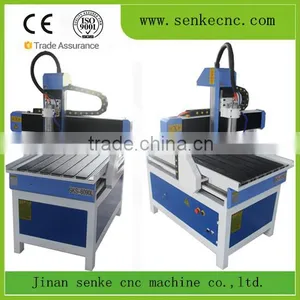

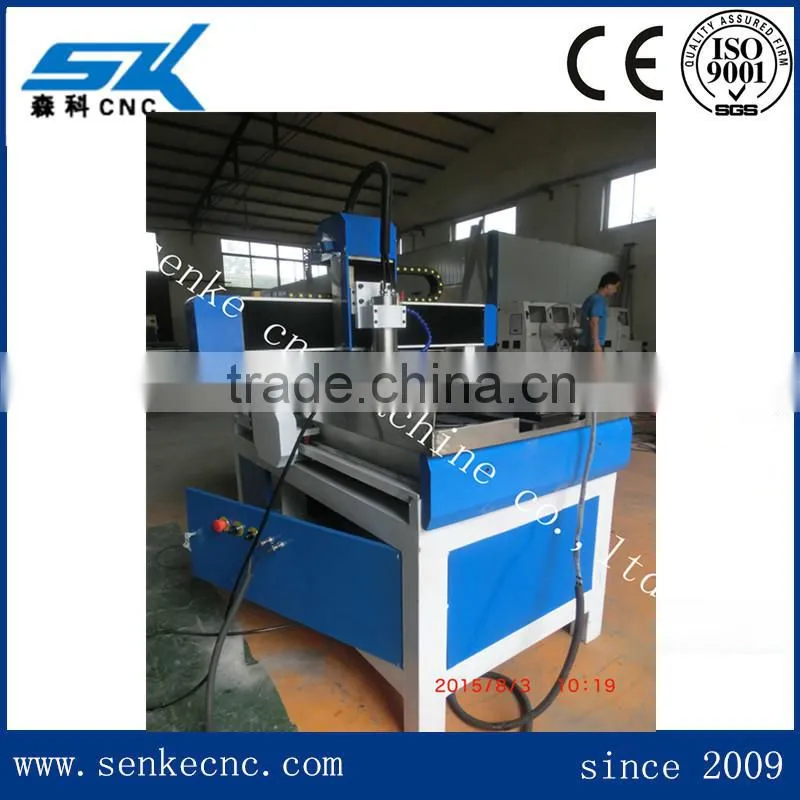

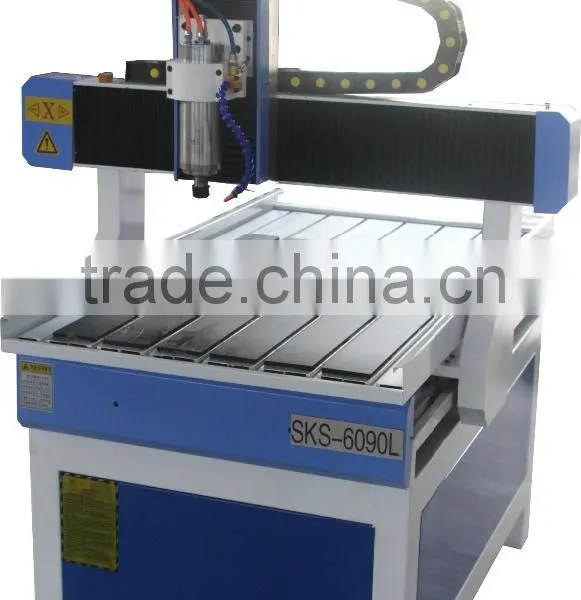

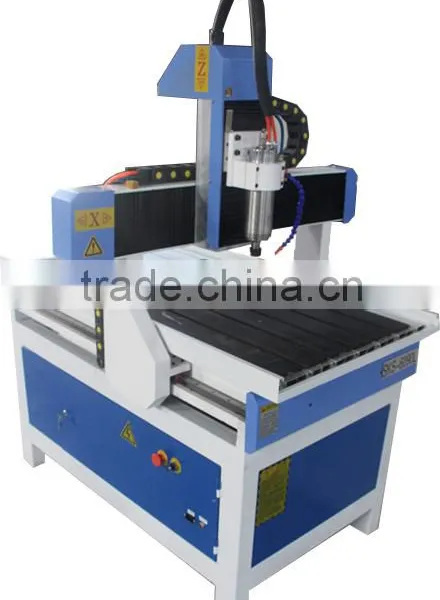

Automatic 3d wood carving cnc router copper sheet engraving machine from Senke manufacture
Features:
1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.
2. Use high speed drive motor,also servo motors for optional
3. Memory function ensures the processing point when the blade is broken or having to postpone the process.
4. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD, CAM. It achieves 2D and 3D works easily.

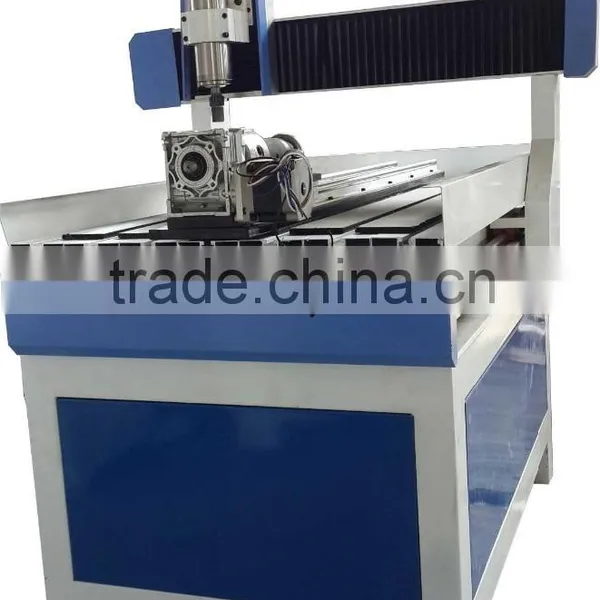

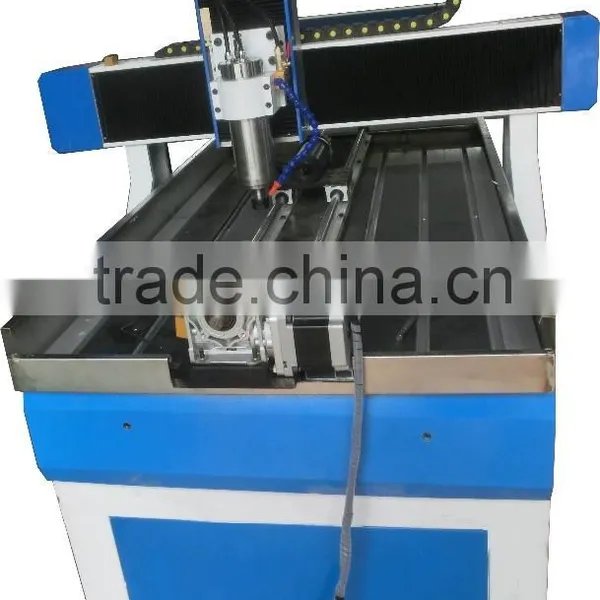

Machine parts
Technical parameters:
Model |
SKA-6090L |
Working area (X*Y*Z) |
600*900*150MM |
Body structure |
Whold steel welded body |
X, Y Structure |
Round rails |
Z Structure |
Taiwan TBI ball screw |
X, Y Resolution |
<0.03mm |
Max Moving Speed |
15000mm/min |
Max Engraving Speed |
8000mm/min |
XYZ traveling positioning accuracy |
±0.01mm |
XYZ repositioning accuracy |
±0.01mm |
Spindle power |
2.2 kw water cooling spindle |
Spindle Speed |
0-24,000rpm |
Voltage |
220v/380v(choice) |
Drive type |
Stepper motors and drivers |
Working Dictate |
G Code |
Operating system |
DSP control |
Interface |
PCI card |
Table |
t-slot table with clamps |
Package size |
1.3*1.3*1.7M |
G.W |
220KGS |
Applicable industry:
Jade or marble engraving, also for Sign board process, mould, bronzing ,badge, pattern mould, art carve, sign and label etc
Musical instrument industry,can engrave 3D surface of large scale musical instrument and the contour cutting
These are our customers feedback to our machine and service. they are so really that is possible you can contact them to ask any quesiton about our machines and service:
1) Two years warranty under machine normal use and we supply maintenance for life freely.
2) 24 hours technical support by phone, email ,MSN,Skype or Remote.
3)Free training to make sure you can master the operation of machine,also we will send manual,instruction,teach video with machine together.
4)English vesion operation manual,popular and easy to understand and handle
