4IN1 H.264 HDMI to encoder DVB-T Modulator (4HDMI+ASI in,DVB-T+ASI out)
hd HDMI to encoder DVB-T Modulator (4HDMI+ASI in,DVB-T+ASI out)
4IN1 H.264 HDMI DVB-T(DVB-C)(DTMB) Modulator
Overview
4IN1 H.264 HD DVB-T Modulator supports 4×HDMI input and 1×RF DVB-T output. It integrates encoder and modulator. After coded and modulated, the input signal can be directly output or mixed output with original TV signal. It suits 1U rack and can be configured by front panel LCD and NMS (network management software).
Technical Specification
Input |
4×HDMI 1.3, support 1080p |
|
Encoding |
Video |
4:2:0 encoding H.264 HP@L4 MP@L3 |
H.264 Adaptive Field Frame (AFF) | ||
H.264 Field-Based (FB) | ||
|
full HD:1920×1080×60/50i/p,1280×720×60p/50p; SD:720*576i(PAL),720*480i(NTSC) | ||
Standard: ISO/IEC14496-10 (H.264/MPEG-4 AVC) | ||
bitrate :1.0~15Mbps continuously adjustable per channel | ||
Audio |
HDMI:embedded audio |
|
Sampling:32KHz, 44.1KHz, 48KHz | ||
Code Rate:64, 128, 192, 256, 384Kbps | ||
DVB-T |
Frequency |
36~900MHz, 1KHz step |
Constellation |
QPSK, 16 QAM, 64 QAM |
|
Baudrate |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
Protection Interval |
1/32, 1/16, 1/8, 1/4 |
|
Output Level |
60~90dB |
|
Bandwidth |
6M, 7M, 8M |
|
Transmode |
2K, 8K |
|
MER |
>=42dB |
|
Level Attenuation |
0~30dB |
|
Control |
IP remote |
NMS (Ethernet Port, RJ-45), 10/100m base-TX, |
Front panel |
Keyboard + LCD |
|
General Features |
Size |
482mm×280mm×44mm |
Temperature |
0~45°C (operation); -20~80°C (storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
Order Guide
4202 |
4IN1 H.264 HDMI encoder DVB-T Modulator(4HDMI in,DVB-T out) |
4161 |
HD H.264 Encoder DVB-T modulator(AV/HDMI IN,DVB-T RF out) |
4208 |
8IN1 MPEG-2 AV encoder DVB-T Modulator(8AV in,DVB-T out) |
Network management software

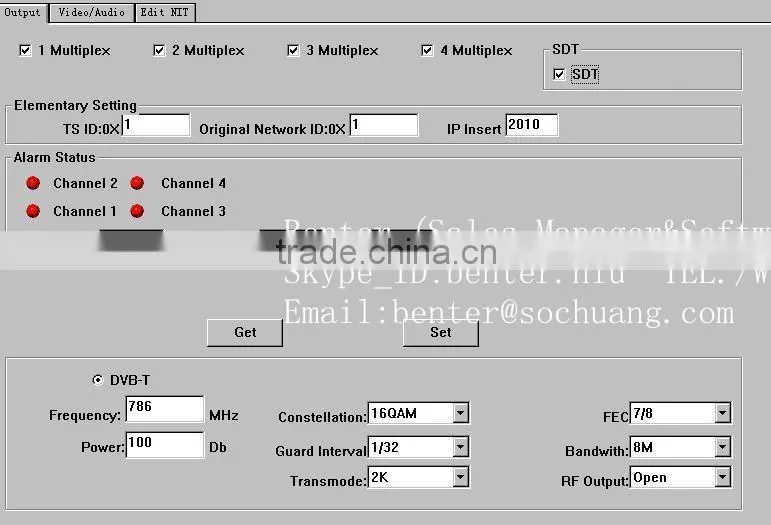

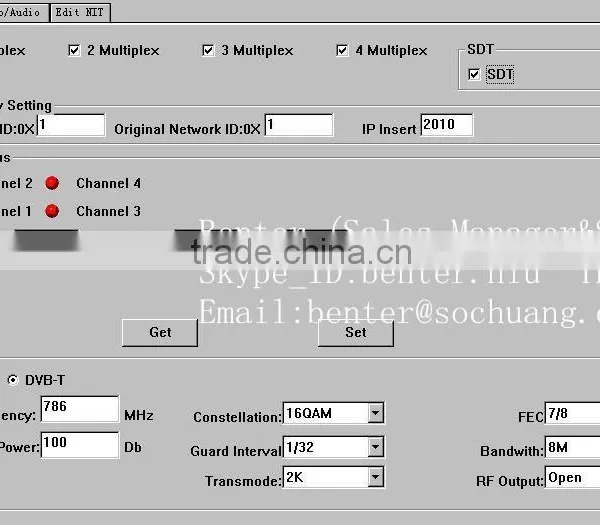

Output setting:

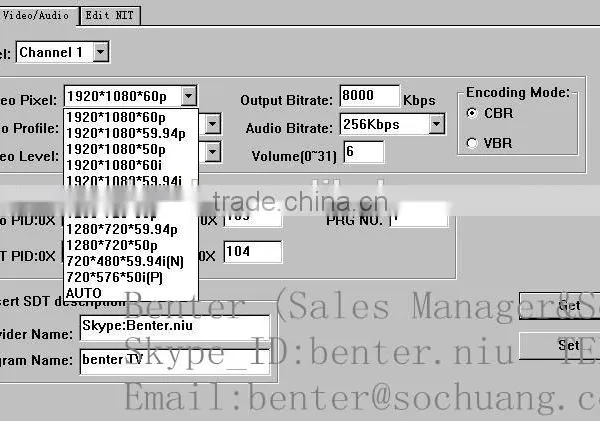

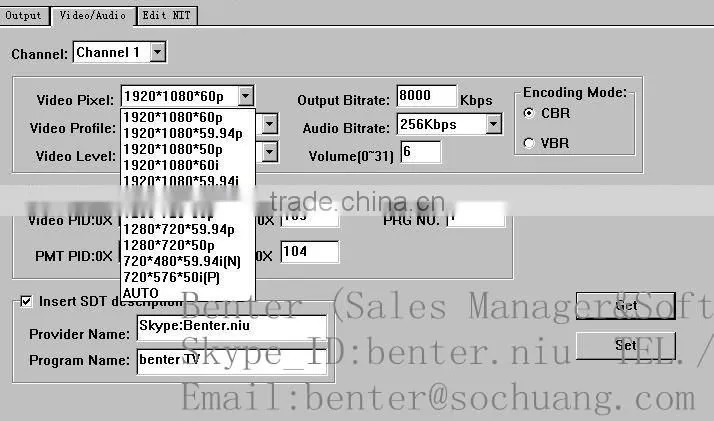

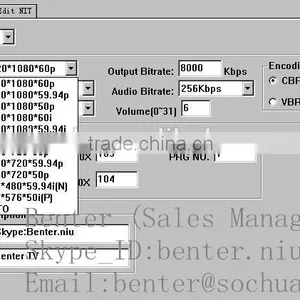

video,audio setting:
NIT edit (LCN):
Developing :
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
