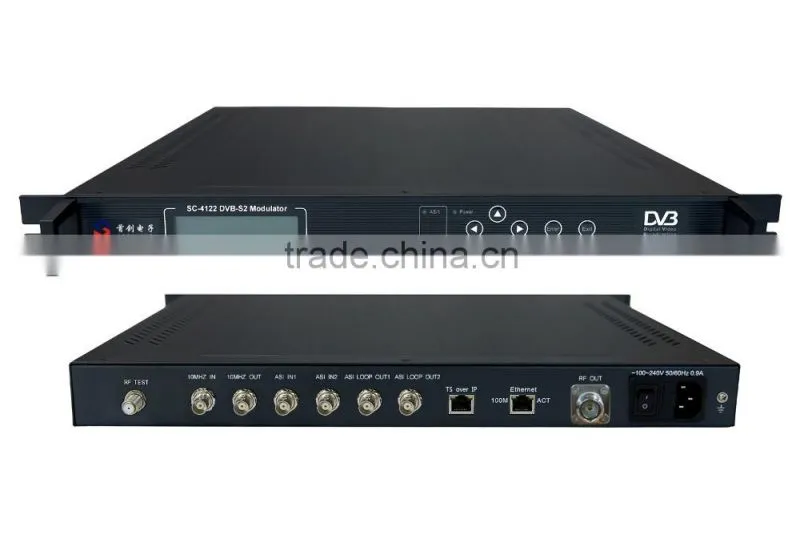

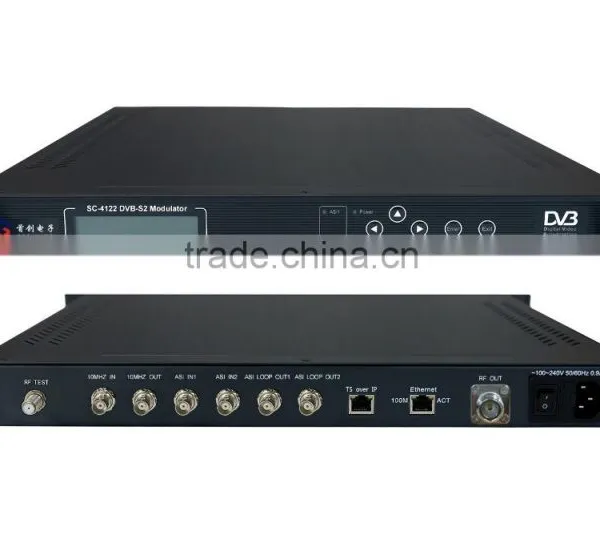

SC-4122 DVB-S/S2 IP Modulator

SC-4122 DVB-S/S2 IP Modulator thumbnail-1
SC-4122 DVB-S/S2 IP Modulator photo-1
US$ 1 - 1,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
SoChuang
Model Number:
SC-4122
Contact Supplier Request Quote Chat Now
Chengdu Sochuang Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name SoChuang
Model Number SC-4122



IP DVB-S/S2 Modulator



Product Description

 SC-4122 DVB-S/S2 IP Modulator

Overview

DVB-S2 modulator supports 2×ASI and 100M IP input and outputs DVB-S2 RF signal by 8PSK/QPSK modulation. It uses advanced frame structure, channel coding modulation technology. Compared with DVB-S modulator, it increase 50% of the transmission capacity under same condition and it has stronger reception capacity under same spectral efficiency. This modulator complies with DVB-S2 EN302 307 and DVB-S (EN300 421) standard. It suits 1U rack and can be configured by front panel LCD and NMS (network management software). Its high-integrated and cost-effective design makes it widely used in varieties of digital wireless and satellite broadcasting distribution systems.

Features

u  Comply with DVB-S2(EN302 307) and DVB-S (EN300 421) standard

u  2×ASI and 100M IP input

u  Support input and output signal real time monitoring

u  LCD/Keyboard control by front panel and network management by Ethernet

Technical Specification

Input

ASI

ASI (DVB standard, BNC interface)

IP

100M IP, TS over UDP

Package Format

188/204bytes

Output

Modulation Mode

QPSK/8PSK

Frequency Range

950-2150MHz

Symbol Rate

17.2-40Mbaud/s

Error-Correcting Codes

FEC: 1/2 3/5 2/3 3/4 4/5 5/6 8/9 9/10

Input Rate

1.0-108Mbps

Channel Data Rate

1-56Mbps

MER

>38dB

BER

0

Level Attenuation Range

0-20dB(0.5dB step)

Impedance

75Ω

Control

Ethernet Port

10/100M RJ45

General Features

Size

482mm×280mm×44mm

Temperature Range

0~45°C (Operation); -20~80°C (Storage)

Power

100-240VAC, 50Hz, 25W

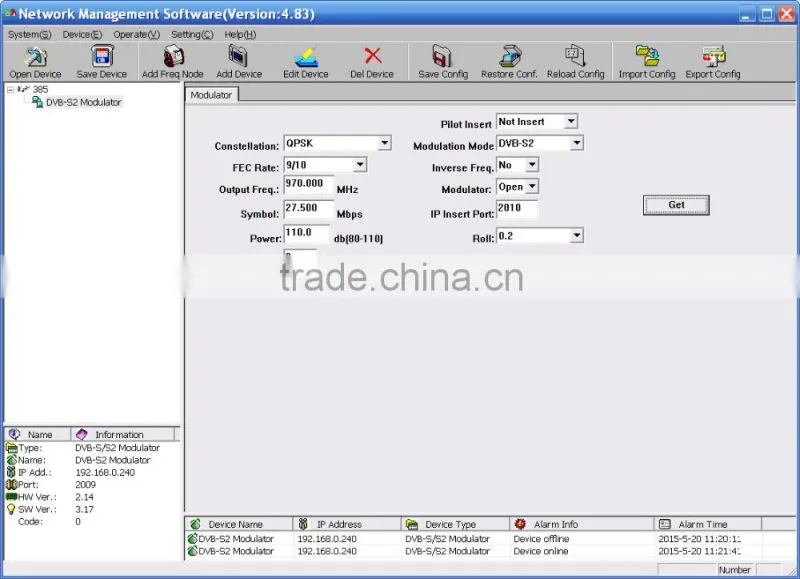

Network Mangement

 SC-4122 DVB-S/S2 IP Modulator

Packaging & Shipping



Company Information







Exhibition Photos



Certifications



FAQ



Our Services



l  Free pre-sales and after-sales technical support

l  3 years warrantly

l  Remote online support and training

l  Hardware/Software upgrade support
