1212 CNC router 4 axis SKA-1212 wood cnc router / industrial wood cutting machine 3D
Features:
1.Integrally cast lathe bed,solid and stable,high rigidity and long service time.
2. Imported high accuracy ball screw ensures more stable movement and high accuracy.
3. Aluminum decorated appearance,beautiful shape and magnificent looking.
4. Water-cooling brushless spindle/ air cooling spindle,low noise,vigorous cutting strength and long time mass processing
Technical parameters:
Discrip Discription |
Parameter |
|||
SKA-3030 |
SKA-3636 |
SKA-6090 |
Option |
|
Working Area (X*Y*Zmm) |
300*300*100mm |
360*360*100mm |
600*900*100mm |
customized |
Z Structure |
Ball Screw |
|||
X, Y Resolution |
<0.01mm |
|||
Max Moving Speed |
8000mm/min |
|||
Max Engraving Speed |
6000mm/min |
|||
XYZ traveling positioning accuracy |
0.03/300mm |
|||
XYZ repositioning accuracy |
0.03mm |
|||
Spindle power |
0.8kw/1.5kw/2.2kw(can be choices) |
|||
Table style |
Fixture |
|||
Spindle Speed |
0-18,000rpmrpm |
|||
Dust collection |
Can add or not |
|||
Voltage |
AC220V/50Hz |
|||
Drive type |
Stepper/Option:servo |
|||
Working Dictate |
G Code ,HPGL |
|||
Operating system |
NC-Stuido/Dsp option System |
|||
Interface |
USB |
|||
Flash memory |
128M(U Disk) |
|||
Software Compatability |
Type3/Ucancam Artcam |
|||

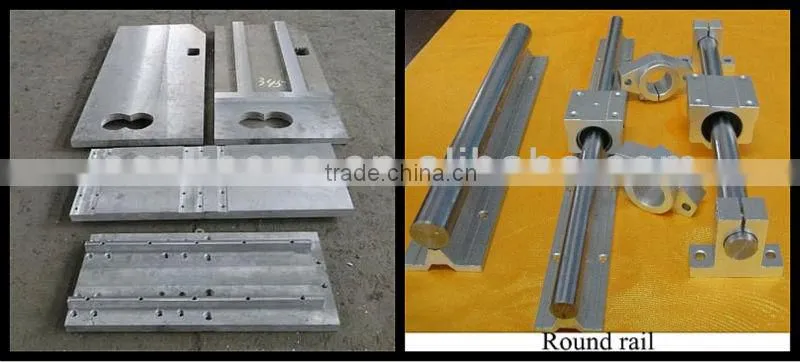

Machinery parts shows:
1. cutter holder watercooling spindle
Hardware parts and Taiwan Ball screw
Stepper drivers and motors as standrand.
3.NC-studio or DSP control systerm can optional
All necessary accessories included
Applicable industry
Advesting industry,artcraft industry,various types of man-made plate,LED,light box,building modes,rulers badges,department cards etc
Appllicable materials
wood,pvc board,MDF board,PCB board,aluminum industry,3D technology,breastplate,indoor&outdoor decoration etc
Guarantee & After Sales Service:
1.One and a half years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2.Free training course at our plant.
3.24 hours on line service (MSN,Skype,Email ) every day, free technical support.
4.Machine has been adjusted before delivery , operation disk was included
Packing--Standard Exported wooden Box
Note:
AII THE PARTS OF MACHINE CAN DO SOME CHANGES TO MEET YOUR REQUIREMENTS ,such as the motor (step motor or servo motor optional), spindle (air cooled or water-cooled optional ),rail (Round rail or Square rail optional ) and the table of the machine (Vacuum table,T-shot table,Combination of T-shot &Vacuum table)
Tanks for your valuable time,for more details of machine,just contact us anytime,it would be our greatly honor serve for you,thanks.:-)
