SC-1115 Iptv Mpeg4/h.264 Encoder Iptv Streaming Encoder

SC-1115 Iptv Mpeg4/h.264 Encoder Iptv Streaming Encoder thumbnail-1
SC-1115 Iptv Mpeg4/h.264 Encoder Iptv Streaming Encoder photo-1
US$ 1 - 2,400 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
SoChuang
Model Number:
SC-1115
Contact Supplier Request Quote Chat Now
Chengdu Sochuang Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name SoChuang
Model Number SC-1115

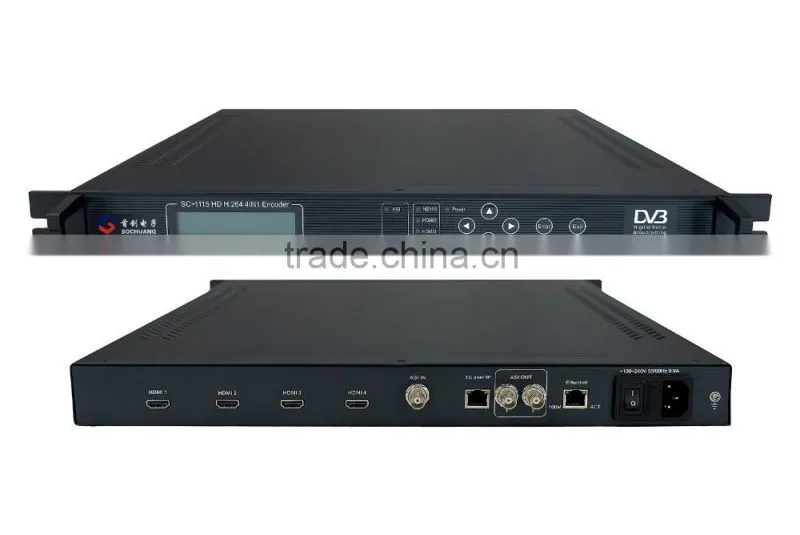

 SC-1115 iptv mpeg4/h.264 encoder iptv streaming encoder

 H.264/MPEG-4 AVC 4in1 HDCP Encoder



Overview

H.264/MPEG-4 AVC 4in1 HDCP Encoder  is a user-friendly, powerful encoder with multi-service capability, flexibly delivering multiple full and low resolution services to a range of devices. It supports multiple HD formats including 1080i*50/60, 720p*50/60. Besides it supports TS(UDP) over IP output, with 4 HDMI inputs. Definitely, it conforms to the H.264 standard.



Features

. Low bit rate

. H.264 compression

. ASI x2 and 100M IP output

. 4 HDMI inputs

. Support multiple HD formats including 1080i*50/60, 720p*50/60

. LCD+keypad/NMS management

. H.264/AVC High Profile Level 4.0 video encoding support, advanced video pretreatment algorithm



Technical Specification

Input

4×HDMI

High Definition Multimedia Interface

ASI

DVB standard, BNC interface

Video Coding

4:2:0 encoding H.264 HP@L4 MP@L3

H.264 Adaptive Field Frame (AFF)

H.264 Field-Based (FB)

full HD: 1920×1080×60/50i/p, 1280×720×60p/50p

Standard

ISO/IEC14496-10 (H.264/MPEG-4 AVC)

Audio

Bit rate

128, 160, 192, 224, 256, 320, 384Kbps

Property

MPEG-1 Layer2

Sample Bit rate

32KHz, 44.1KHz, 48KHz

Output

2×ASI

DVB standard, BNC interface

IP

IP/UDP (TS over IP), SPTS/MPTS/Unicast/Multicast

Output Bit rate

1 to 20Mbps (4:2:0) per channel

Control

NMS (Ethernet port, RJ-45), Keyboard + LCD

General Features

Size

482mm×410mm×44mm

Temperature Range

0~45°C(Operation); -20~80°C(Storage)

Power

100-240VAC, 50Hz, 25W





Network Mangement

 SC-1115 iptv mpeg4/h.264 encoder iptv streaming encoderSC-1115 iptv mpeg4/h.264 encoder iptv streaming encoderSC-1115 iptv mpeg4/h.264 encoder iptv streaming encoderSC-1115 iptv mpeg4/h.264 encoder iptv streaming encoderSC-1115 iptv mpeg4/h.264 encoder iptv streaming encoderSC-1115 iptv mpeg4/h.264 encoder iptv streaming encoderSC-1115 iptv mpeg4/h.264 encoder iptv streaming encoder



Packaging & Shipping



 SC-1115 iptv mpeg4/h.264 encoder iptv streaming encoder







Company Information













Exhibition Photos









Certifications









FAQ









Our Services



l  Free pre-sales and after-sales technical support

l  3 years warrantly

l  Remote online support and training

l  Hardware/Software upgrade support
