Overview

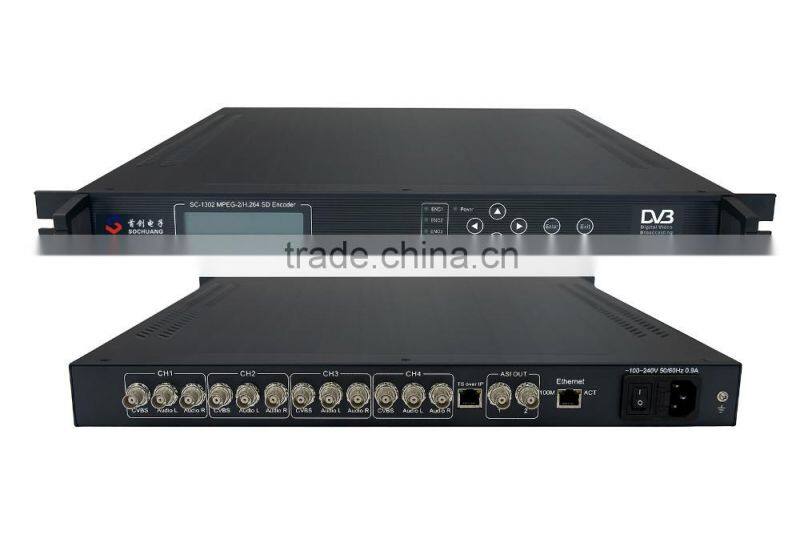

SC-1302 SD 4-channel MPEG2/H.264 IPTV encoder has 4 channels analog composite video (4×CVBS) and 4 pairs of unbalanced audio (mono or stereo) input, supporting MPEG-2/H.264 video and MPEG-1 audio encoding, to generate DVB transport stream (TS/ASI) and 4×SPTS (TS over IP) output. It use Magnum chipset and can support low bitrate. Besides, this encoder suits 1U rack and provides front panel LDC operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.
Features
u Magnum, supporting low bitrate
u MPEG-2/H.264 video and MPEG-1 audio encoding
u 4×CVBS and 4 pairs of unbalanced audio (4×AV) input
u PID program name and program number edit

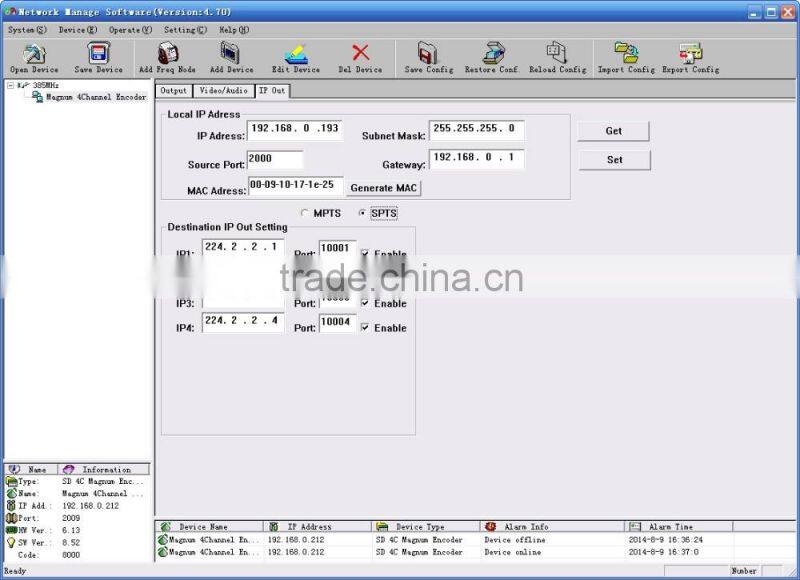

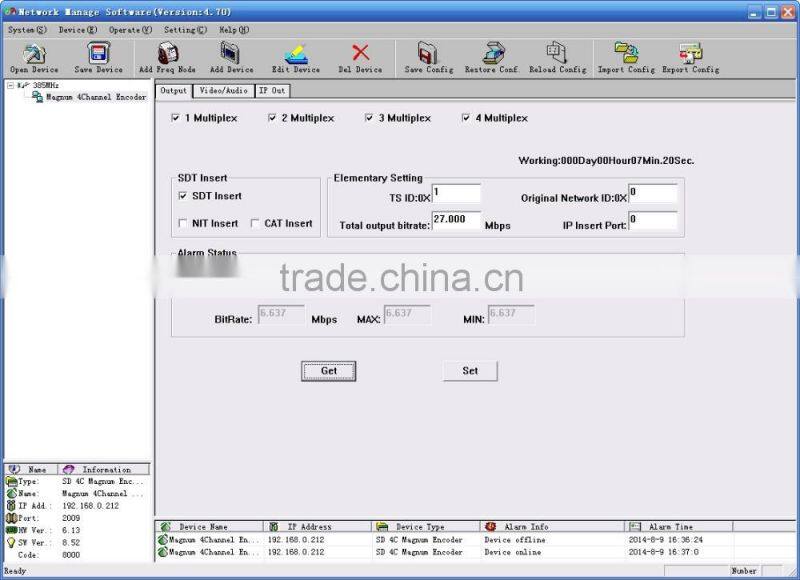

u LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
Input |
Video |
4×CVBS, BNC interface |
Audio |
4 pairs of unbalanced audio, BNC interface |
|
Video Coding |
Encoding |
MPEG-2/H.264 full D1 |
Pixel |
PAL: 720×576, NTSC: 720×480 |
|
Frame Rate |
25, 29, 97, 30fps |
|
Aspect Ration |
4×3, 16×9, 1×1 |
|
Bit Rate |
0.5~7.5Mbps per channel |
|
Resolution |
352×240, 320×240, 320×180, 192×192, 160×120 |
|
Audio Coding |
Sampling |
32KHz, 44.1KHz, 48KHz |
Bit Rate |
32, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320, 384, 448, 512, 576, 640Kbps |
|
Property |
MPEG-1 Layer 2/HE-AAC/LC-AAC |
|
Output |
2×ASI |
DVB standard, BNC interface |
IP Out |
IP/UDP (Unicast/Multicast), network RJ-45 10/100 M base-Tx |
|
Control |
NMS (Ethernet Port), Keypad + LCD |
|
General Features |
Size |
482mm×280mm×44mm |
Temperature Range |
0~45°C (Operation); -20~80°C (Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
