Best Engraving Machine Medals 4 Axis CNC Router 2200W With 3d Patterns Cnc Router

Best Engraving Machine Medals 4 Axis CNC Router 2200W With 3d Patterns Cnc Router thumbnail-1
Best Engraving Machine Medals 4 Axis CNC Router 2200W With 3d Patterns Cnc Router thumbnail-2
Best Engraving Machine Medals 4 Axis CNC Router 2200W With 3d Patterns Cnc Router thumbnail-3
Best Engraving Machine Medals 4 Axis CNC Router 2200W With 3d Patterns Cnc Router thumbnail-4
Best Engraving Machine Medals 4 Axis CNC Router 2200W With 3d Patterns Cnc Router thumbnail-5
Best Engraving Machine Medals 4 Axis CNC Router 2200W With 3d Patterns Cnc Router thumbnail-6
Best Engraving Machine Medals 4 Axis CNC Router 2200W With 3d Patterns Cnc Router photo-1
Best Engraving Machine Medals 4 Axis CNC Router 2200W With 3d Patterns Cnc Router photo-2
Best Engraving Machine Medals 4 Axis CNC Router 2200W With 3d Patterns Cnc Router photo-3
Best Engraving Machine Medals 4 Axis CNC Router 2200W With 3d Patterns Cnc Router photo-4
Best Engraving Machine Medals 4 Axis CNC Router 2200W With 3d Patterns Cnc Router photo-5
Best Engraving Machine Medals 4 Axis CNC Router 2200W With 3d Patterns Cnc Router photo-6
US$ 2,000 - 18,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Jinan Sange CNC Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name Sange
Model Number SG-2512-8
Voltage 3 phase AC380V/50HZ
Power(W) 2.2KW
Dimension(L*W*H) 250mm*1200mm
Weight 2500KG
Certification CE ISO9001,FDA,SGS,CIQ
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Best engraving machine medals 4 axis CNC Router 2200W with 3d patterns cnc router

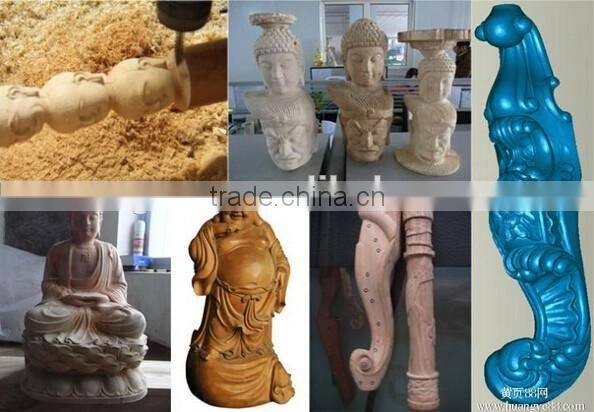

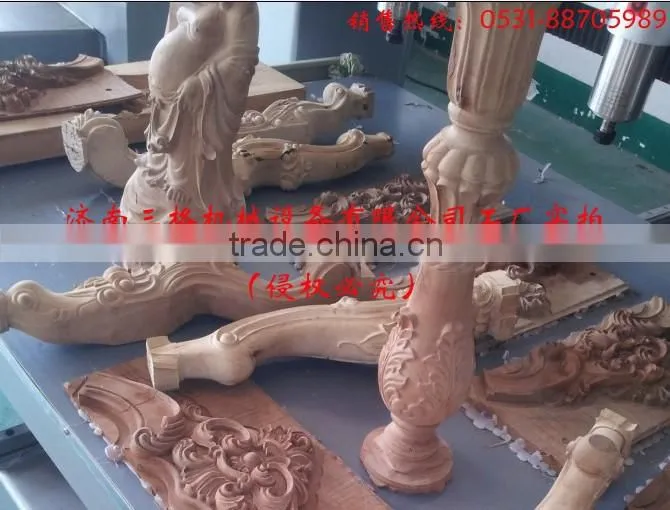

This cnc router for woodworking using for 3D cylinder engraving for art craft, Buddha statue,sculpture, furniture and furniture legs multi-function.

Model
 4 axis  cnc router
X,Y ,Z Processing Size
250mmΧ1200mmΧ8(Diameter*Length)
X,Z Processing resolution
±0.01/300mm
X,Z Reposition Resolution
±0.01mm
X、Y、Z Control Resolution Ratio
0.0001mm
Rotary Axis Reposition Resolution
4〃
Engraving Cylinder Length
1200mm
Max. Processing Weight of each
80KG
Max. Engraving Speed
20000mm/min
Engraving Cylinder diameter
≦250mm(8 Pieces work)
Structure
Heavy Duty Steel Tube Structure, Steel Gantry,
Spindle Power
2.2KW Water Cooling Spindle(8 Spindles, Hanqi)
Spindle Rotating Speed
24000rpm
Motors
Original Yaskawa Servo Motors(Japan Brand)
Running Speed
50m/min
Voltage
380V，60HZ
Bits
ER25，Ф3.175mm---Ф12.7mm；
Control System
4 Axis Original Ncstudio System( Original Software)
Software
Type3/Artcam/Ucancam/Caxa/Mastercam/UG/wentai/JD
Format
G code
Transmitting System
Taiwan CSK high-precision square compound Sliding Linear Guide
Screw
Taiwan PMI Ball screw
Weight
3650KG
Package Size
3230mm*2200mm*2320mm(X *Y*Z)
Surroundings
Temperature: 0-45℃; humidity:30%-75%

Main Features

1)This cnc router length up to 1200 mm , suit for mostly material work needed

2)The bed lathe is made of heavy duty structure, analyzed and designed with Taiwan designer.

3)2.2KW constant power water cooling spindle , guarantee the engraving power

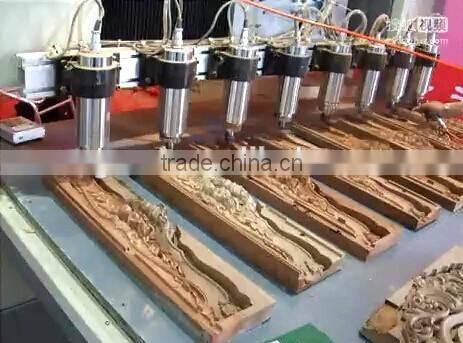

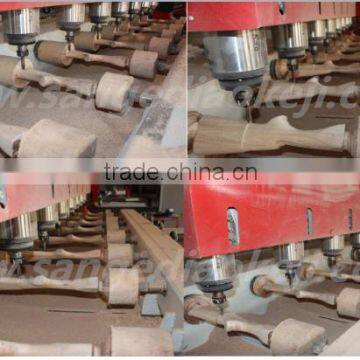

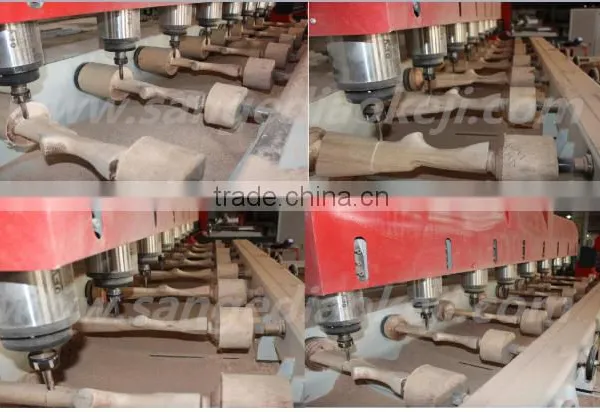

4)8 spindles can work at the same time with higher efficiency .

5) Japan YASKAWA servo motor 1.3KW , guarantee working precision and speed

Certifications

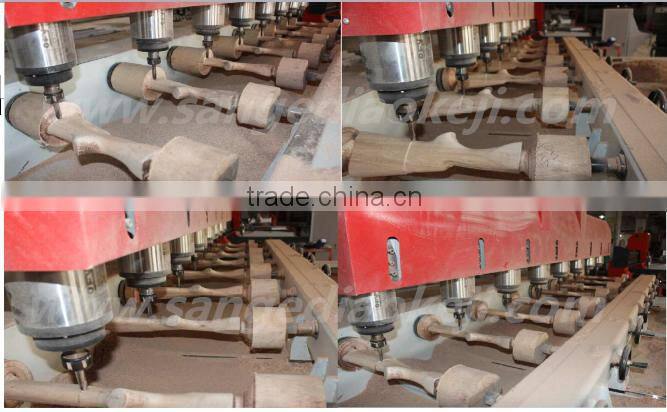

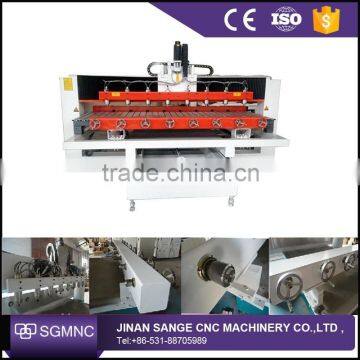

Detailed Images
Our Service

1)The engineers are available to go to your country for overseas’ after-sale service in time and professionally.

2)24 hours heart to heart service on-line or mobile.

3)We offer free training in our factory.

4)The warranty of cheap cnc router is 12 months, small broken parts could be freely replaced at any time, spare parts are delivered with machine for customer convenience.

5)We offer you best agent price and distributor price for our further cooperation.

6) we can offer special custom-made according to your request.

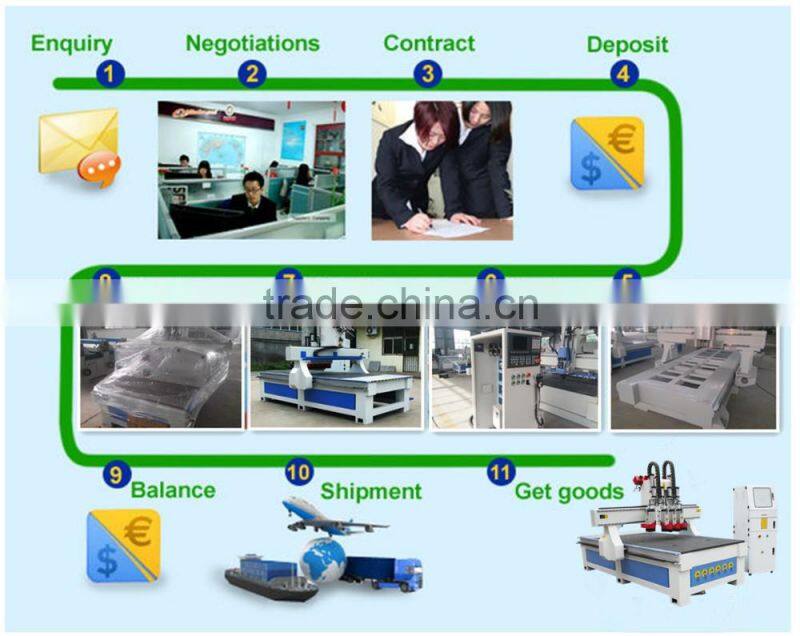

Packing & Delivery
Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Welcome to our factory for best engraving machine medals 4 axis CNC Router 2200W with 3d patterns cnc router.
