Home > Products > IP Gateway > 8 * ASI-64 SPTS IP Gateway(8ASI-to-64SPTS,Gigabit) Multicast/DVB IP Gateway

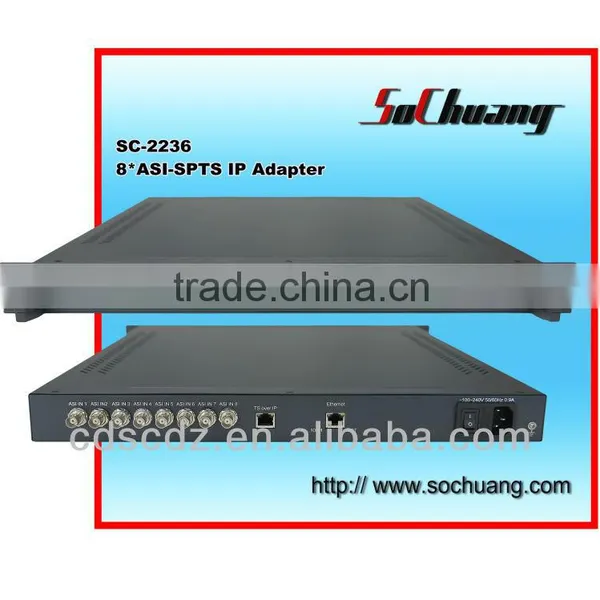

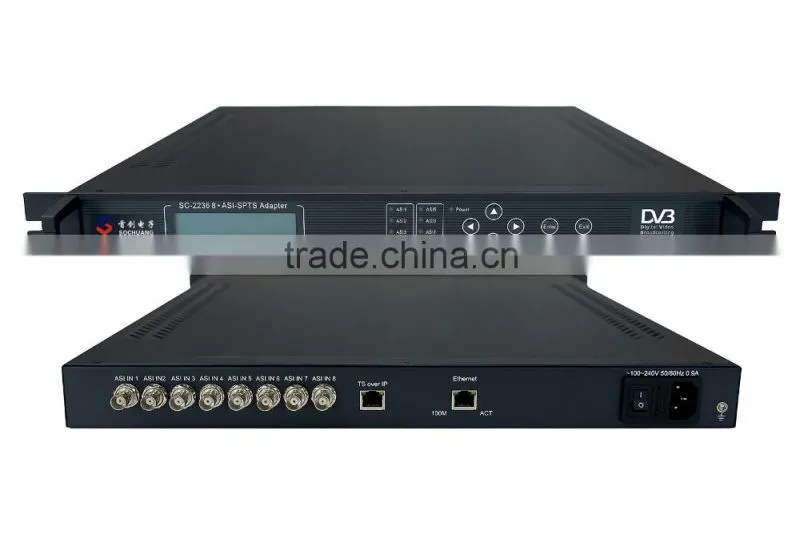

8 * ASI-64 SPTS IP Gateway(8ASI-to-64SPTS,Gigabit) Multicast/DVB IP Gateway

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	sochuang
Model Number	SC-2236

DVB IP Gateway

Overview:

8IP-8ASI/8ASI-8IP Adapter/Gateway is one of the main equipment of the cable digital TV headend, receiving data from the

encoder, multiplexer, DVB gateway, scrambler, video server and other DVB transport stream, transform into IP/UDP

streams (TS over IP) Multicast, or to receive transport stream from the network and transform into ASI stream.

Features:

u Full hardware implementation, high efficiency and stability;

u 8ASI-8IP, 8IP-8ASI, Gigabit ts over ip port

u 8MB cache, anti-burst stream;

u Real-time stream monitoring;

u Local and remote control;

u LCD display in Chinese and English, easy and flexible to operate;

u High reliability, stable.

Technical Specification:

Management			Network RJ-45 10/100m base-TX,NMS
Out	ASI		BNC/TS
Out	IP		UDP/RTP, SPTS/Multicast, TS over IP(Gigabit
General Features		Size	44mm482240mm
		Environment	0 ~ 45(Operating); -20 ~ 80(Storage)
		Power	220VAC(-+10%),50Hz,25W

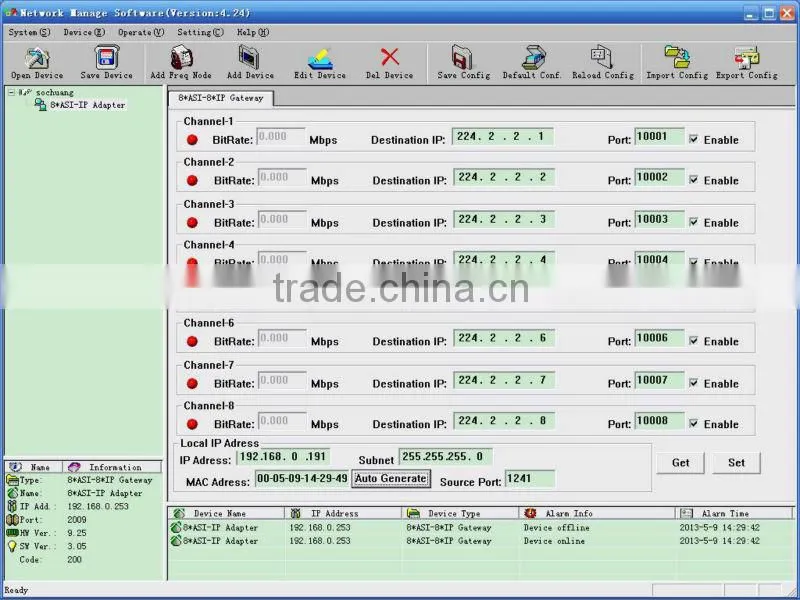

Network Management:

IP-ASI adapter

Packaging & Shipping
