dvb-s2 to udp iptv gateway(DisEqc/22KHz,8*DVB-S2 tranponders in,SPTS UDP/multicast/Gigabit out)
in:8 dvb-s/s2 fta rf
out:8 mpts/128 spts ts over UDP
multicast,iptv,ip qam modulator
LAN IPTV
8*DVB-S/S2 to SPTS Multicast IP Gateway
Overview
8*DVB-S/S2 to SPTS Multicast IP gateway can receive 8 DVB-S/S2 signal (RF) transponders and output SPTS Multicast IP transport stream (TS over UDP). It can convert max 64 programs and is mainly applied to IPTV live broadcast system.
Technical Specification
Input | 8×RF | DVB-S/S2, QPSK/8PSK, F-head |
Frequency | 950MHz~2150MHz | |
Symbol Rate | 1~45 Mbaud/s | |
Output | 1000BASE-T/Gigabit IP port; Max 64*SPTS multicast TS over IP/UDP(Max 8*SPTS/Multicast per satellite transponder); | |
Control | NMS (Ethernet Port), Keyboard + LCD | |
General Features | Size | 482mm*410mm*44mm |
Temperature | 0 ~ 45 (Operation); -20 ~ 80 (Storage) | |
Power | 100-240VAC (±10%), 50/60Hz, 25W | |
Order Guide
2125 | 8×DVB-S/QPSK/S2 /8PSK in, 8×MPTS UDP/Multicast/Gigabit out |
2135 | 8×DVB-S/QPSK/S2 /8PSK in, 64×SPTS/IP/UDP/Multicast/Gigabit out |
5256 | DVB-S2 CI IP IRD(DVB-S/S2+ASI in,ASI+IP(8*SPTS(multicast)/1*MPTS) out) |
Network management software

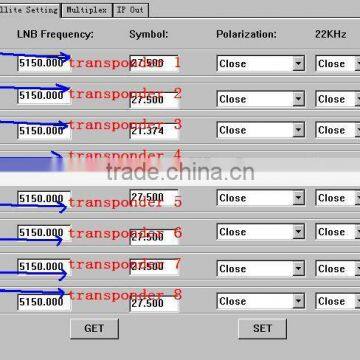

dvb-s/s2 input parameters setting:

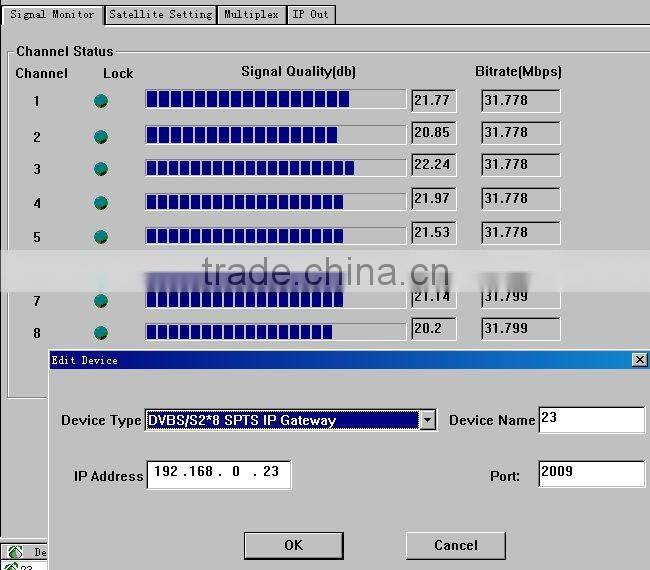

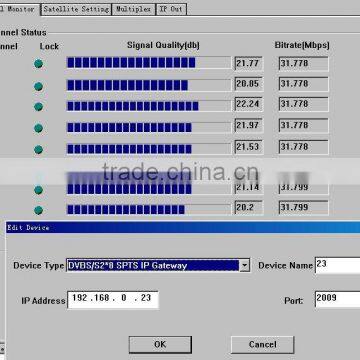

dvb-s/s2 signal monitor:

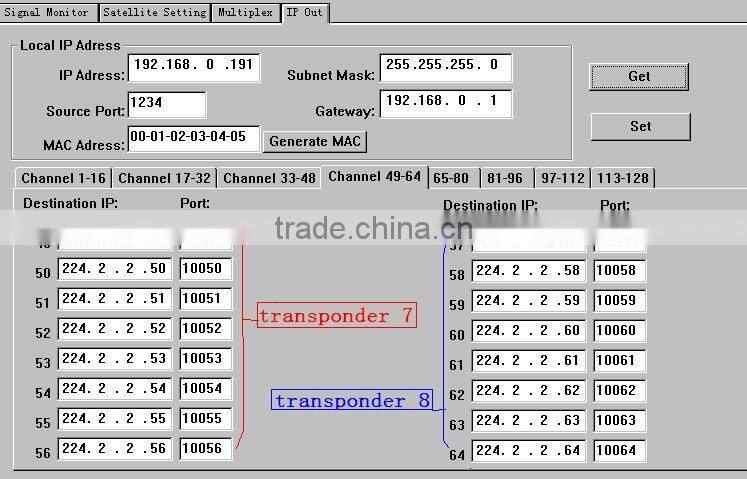

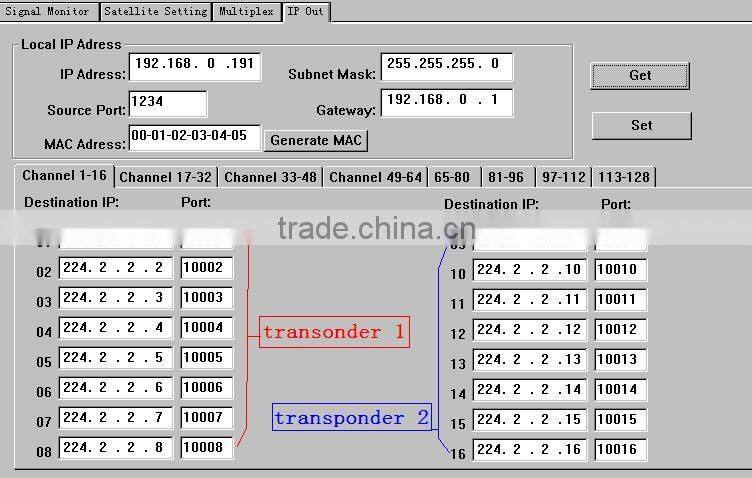

IP SPTS output setting:

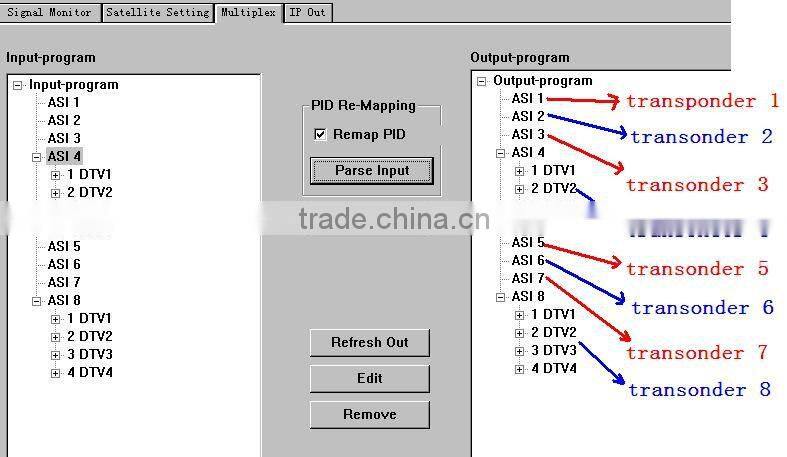

Program multiplexer(SPTS):
TS over UDP VLC play:
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
