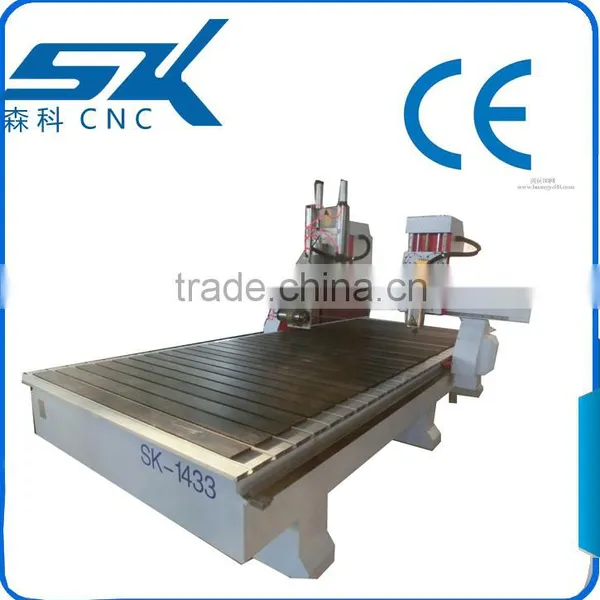

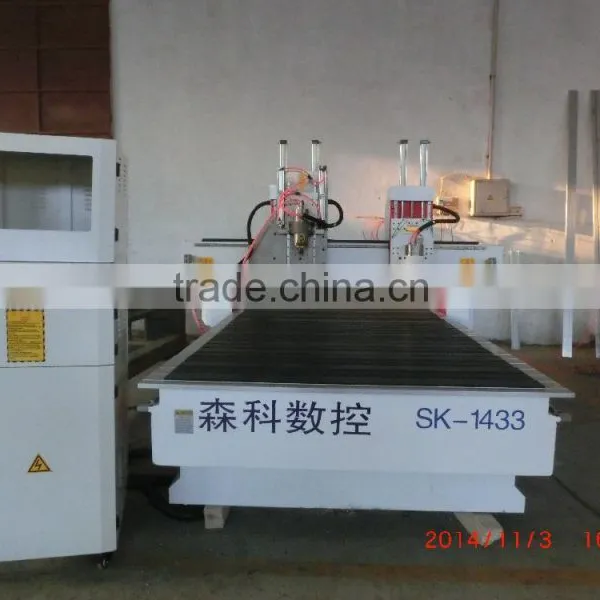

4x8 ft cnc router cutting and engraving wood acrylic glass copper stone on sale 4 axis equipment
2. X,Y axes transmission with gear rack, Z axis transmission with imported ball screws, ensures stable and smooth movement of the machine.
3. HQD/HSD aicooling spindle,strong power,suitable for cutting work needed
4. Applicatin of driver with high definition subdivision ensures fast speed and high accuracy.
5. High power spindle, brushless, water cooling/air cooling, working vigorously with low noise.
Model |
SKW-1325B / SKW-1525B/Or size customized |
X,Y,Z axis workin g area |
1300*2500*600mm |
Machine size |
3005*2100*1700mm |
X,Y movement |
Rack and pinion |
Z movement |
Ballscrew transmission |
Guide |
Taiwan HIWIN/PMI 20 square rails |
Max idling speed |
40000mm/min |
Max engraving speed |
23000mm/min |
Spindle power |
3kw/4.5kw/6kw watercooling/aircooling (choose) |
Spindle speed |
18000-24000rpm |
inverter |
3.7KW/7.5KW(depend on spindle choose) |
Drive motors |
Stepper motors (servo motors and drviers optiona) |
drivers |
Leadshine |
Control system |
Mach 3 |
Working voltage |
220V/380V or customized |
Command code |
G code |
software |
Artcam,type 3,etc |
collet |
ER 25-32 |
Packing dimension |
3.1*2.1*1.82M |
weight |
1260kgs/1350kgs |
Standard equipment included |
1.automatic oil injection system 2.Tool sensor 3.vacuum table,5.5kw vacuum pump |

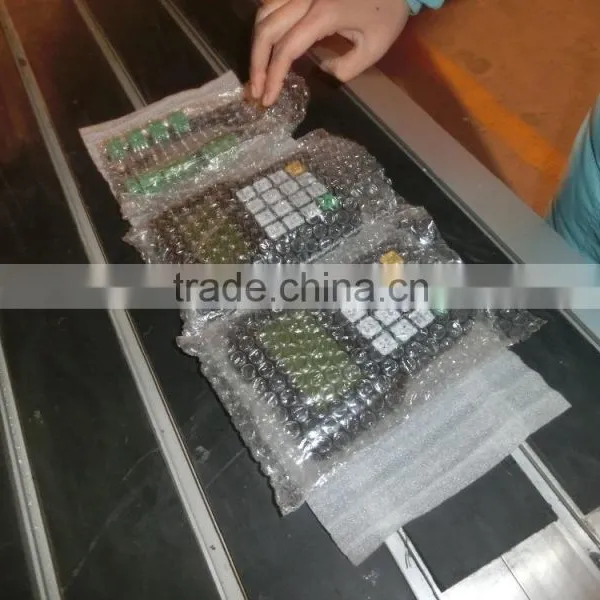

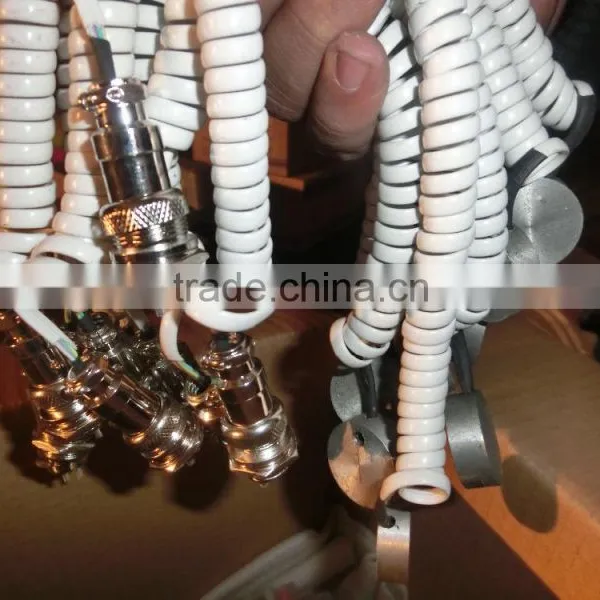

Parts:
samples:
