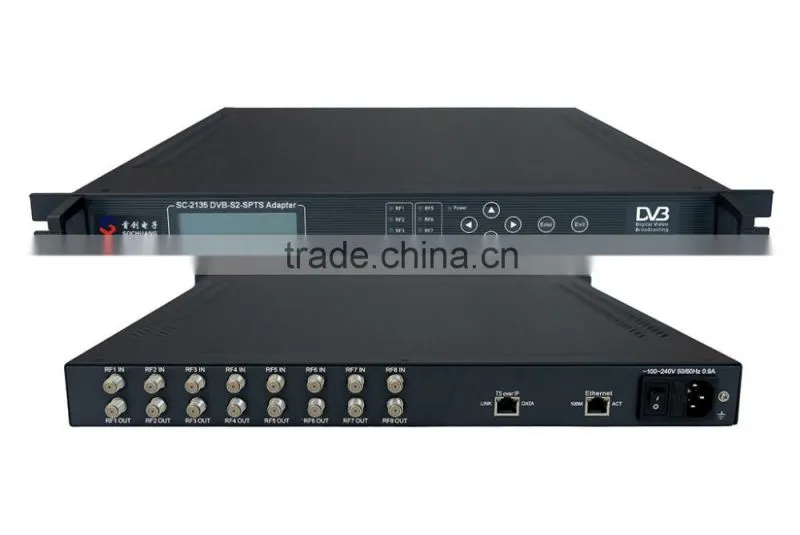

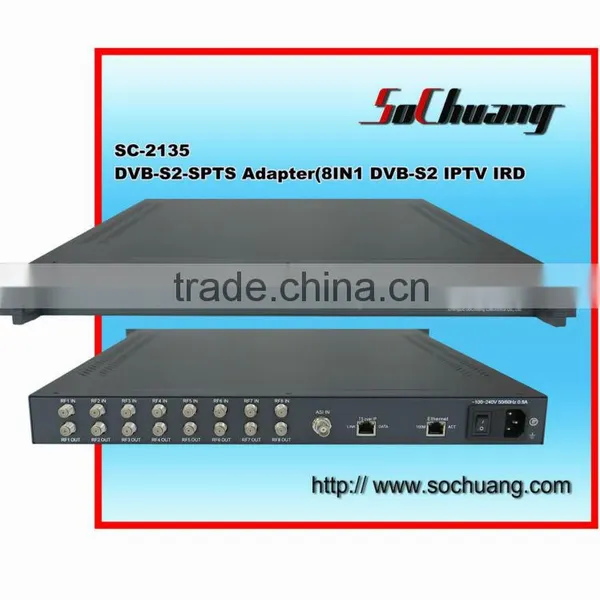

SC-2135 Satellite RF input TS over UDP/SPTS/Gigabit out
Overview

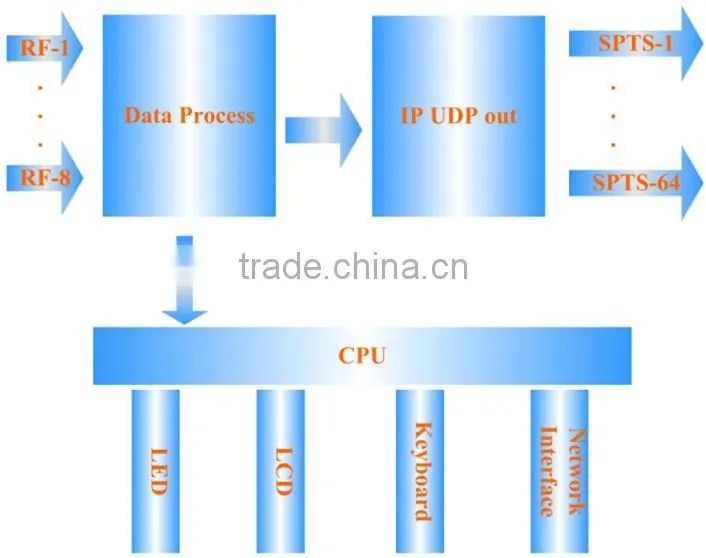

8in1 DVB-S/S2 IP receiver (IRD) is one of the main equipments for digital TV head-end. It can receive 8 channels DVB-S/S2 signal (RF) transponders and output 64×SPTS IP transport stream (TS over UDP). It can convert 64 programs and is mainly applied to IPTV live broadcast system.
Features
u 8×DVB-S or 8×DVB-S2 RF (optional) input
u 64×SPTS (Gigabit, Multicast, TS over UDP) output
u Maximum 188×7package supported

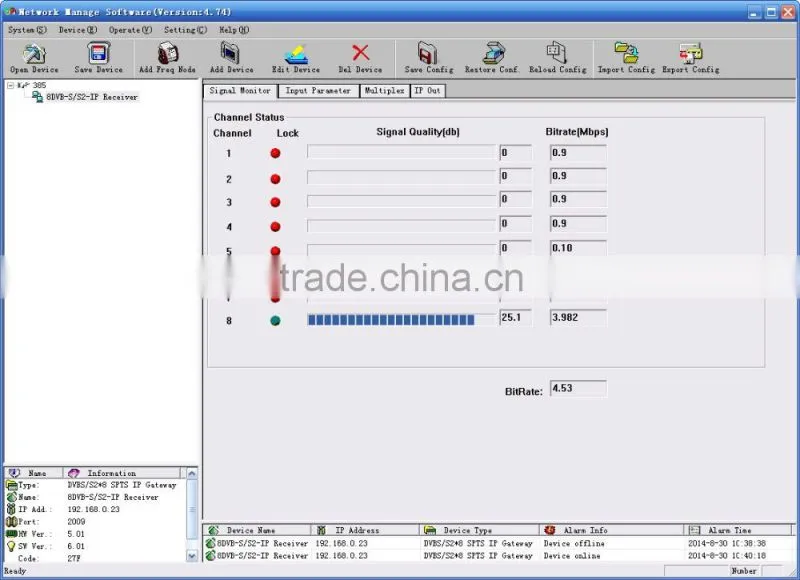

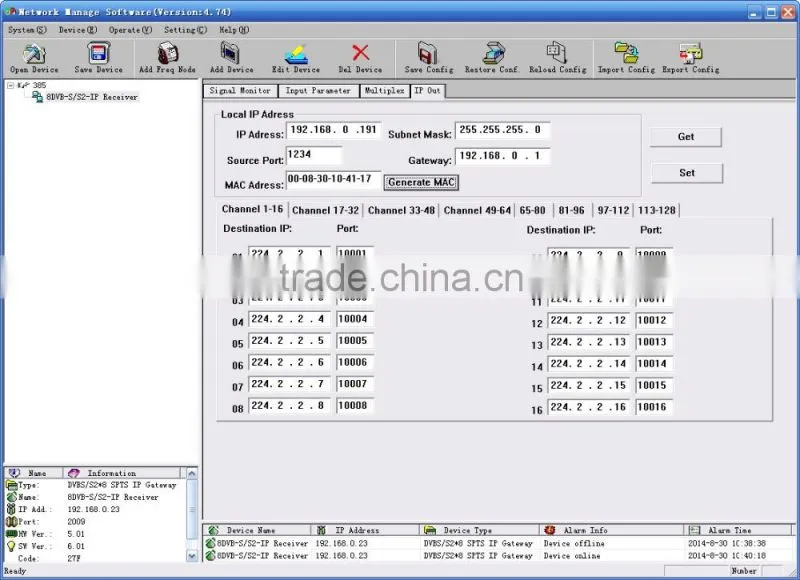

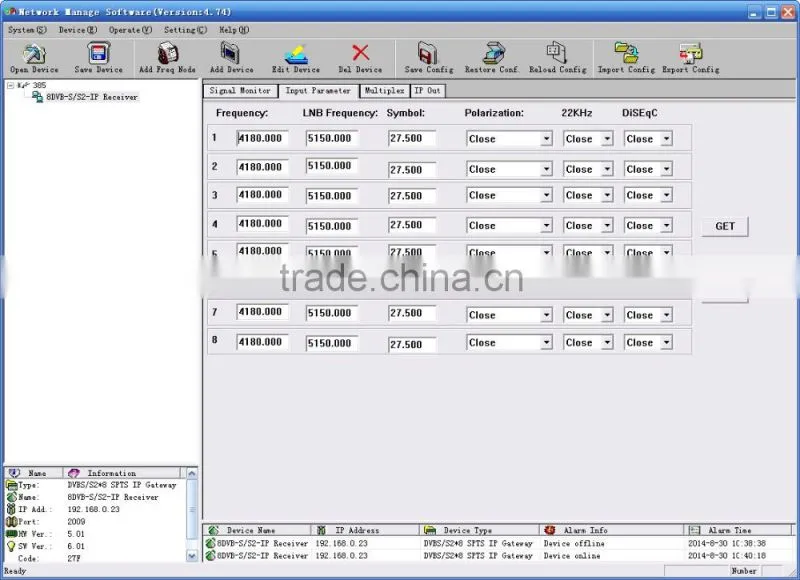

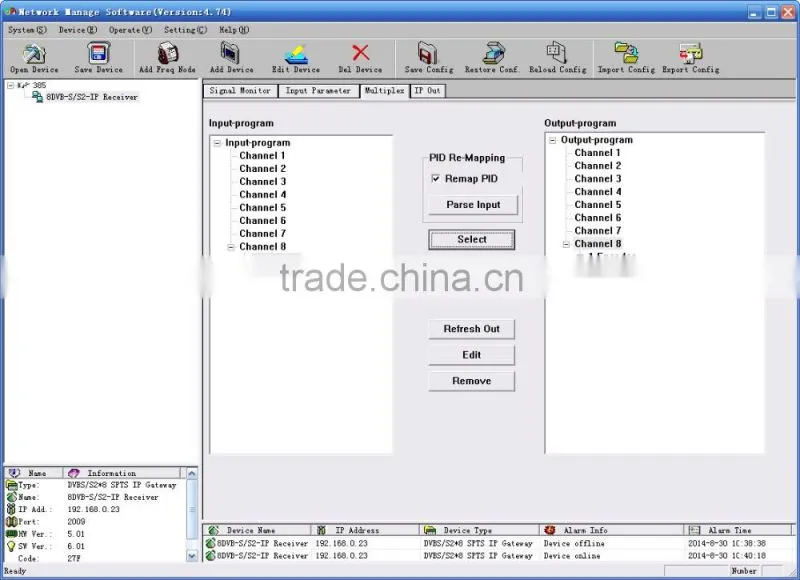

u LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
Input |
8×RF |
F-head |
Demodulation Mode |
DVB-S/S2, QPSK/8PSK |
|
Symbol Rate |
1~45 Mbaud/s |
|
Frequency Range |
950MHz~2150MHz |
|
Error Correction Coding |
RS coding 188/204 |
|
Output |
IP |
64×SPTS/Unicast/1000BASE-T, TS over IP/UDP |
Control |
NMS (Ethernet port, RJ-45), Keyboard + LCD |
|
General Features |
Size |
482mm×410mm×44mm |
Temperature Range |
0~45°C(Operation); -20~80°C(Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
