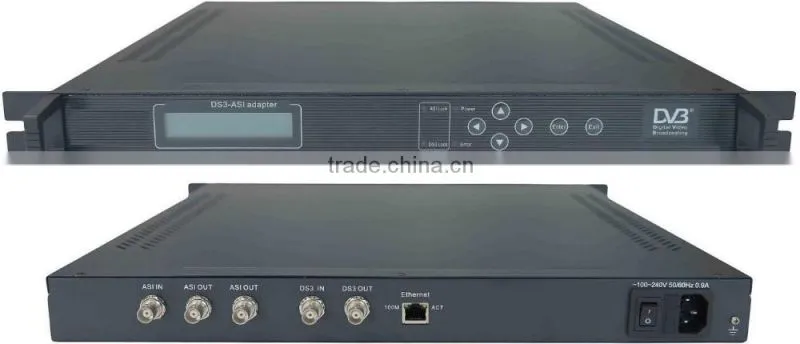

ASI to DS3 Adapter hardware (ASI to DS3 and DS3 to ASI)
ASI input to DS3 output
DS3 input to ASI output

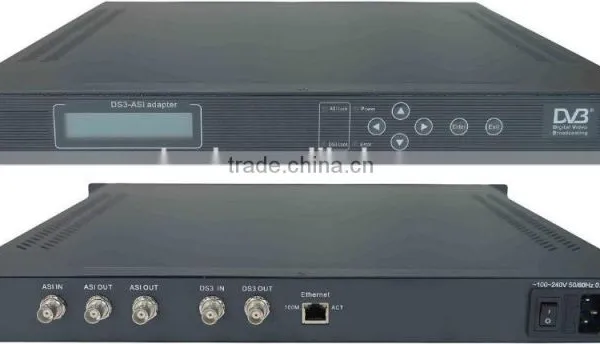

DS3-ASI Adapter
Overview
DS3-ASI adapter can convert DS3 signal to ASI transport stream, and convert ASI stream (TS) to DS3 signal, it is Full-duplex. It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling.
Technical Specification
Input |
ASI, |
BNC interface |
DS3 |
BNC interface |
|
Output |
DS3 |
BNC interface |
ASI |
2*BNC interface |
|
Bitrate |
DS3 stream frame structure complies ITU-TG.752,ITU-TG.804; DS3 signal physical interface complies ITU-TG.703; Transmitting output DS3:44.736Mbit/s; Receiving input DS3:44.736Mbit/s. |
|
Control |
IP remote |
NMS (Ethernet Port, RJ-45) |
Front panel |
Keyboard + LCD |
|
General Features |
Size |
482mm×280mm×44mm |
Temperature Range |
0~45°C (Operation); -20~80°C (Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
Order Guide
2221 |
ASI+DS3 in, DS3+ASI out, 44.736Mbit/s |
2224 |
E3: 34.368Mbps |
