CNC Automatic Wood Foam Mould Making Machine Foam Cutting Machine Cnc SKW-1325F

CNC Automatic Wood Foam Mould Making Machine Foam Cutting Machine Cnc SKW-1325F thumbnail-1
CNC Automatic Wood Foam Mould Making Machine Foam Cutting Machine Cnc SKW-1325F thumbnail-2
CNC Automatic Wood Foam Mould Making Machine Foam Cutting Machine Cnc SKW-1325F thumbnail-3
CNC Automatic Wood Foam Mould Making Machine Foam Cutting Machine Cnc SKW-1325F thumbnail-4
CNC Automatic Wood Foam Mould Making Machine Foam Cutting Machine Cnc SKW-1325F thumbnail-5
CNC Automatic Wood Foam Mould Making Machine Foam Cutting Machine Cnc SKW-1325F thumbnail-6
CNC Automatic Wood Foam Mould Making Machine Foam Cutting Machine Cnc SKW-1325F photo-1
CNC Automatic Wood Foam Mould Making Machine Foam Cutting Machine Cnc SKW-1325F photo-2
CNC Automatic Wood Foam Mould Making Machine Foam Cutting Machine Cnc SKW-1325F photo-3

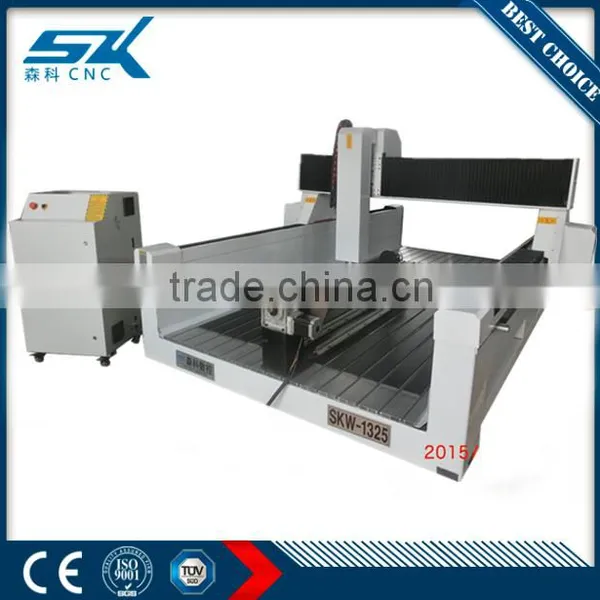

CNC Automatic Wood Foam Mould Making Machine Foam Cutting Machine Cnc SKW-1325F photo-4
CNC Automatic Wood Foam Mould Making Machine Foam Cutting Machine Cnc SKW-1325F photo-5
CNC Automatic Wood Foam Mould Making Machine Foam Cutting Machine Cnc SKW-1325F photo-6
US$ 4,690 - 9,690 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Jinan Senke CNC Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tainjin/qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name Senke-- foam cutting machine cnc
Model Number SKW-1325F
Voltage AC220V or other can be customized
Power(W) 9kw
Dimension(L*W*H) 1.48*2.7*1.9m
Weight 2000KG
Certification CE,ISO
Warranty 2 years
After-sales Service Provided No overseas service provided

CNC automatic wood foam mould making machine foam cutting machine cnc SKW-1325F

 CNC automatic wood foam mould making machine foam cutting machine cnc SKW-1325F

Product Description



Features:

1.High Z axis welded structure by thick profiled steel stabilized under high temperature, ensures ,minimum distortion, excellent rigidity and powerful strength
2.dsp operate with easy learn,fully function,.
3..aricold or watercold spindle,supply enough strong power,stably run and use,at the same time higher precision
4.stepper motor and driver, japan yaskawa servo motors and drivers for optional,high speed,long life and higher precision
5.big size gear rack keep the machine run stabely
6.Taiwan imported hiwin/pmi  square rails.
7.high accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast speed and low noise.

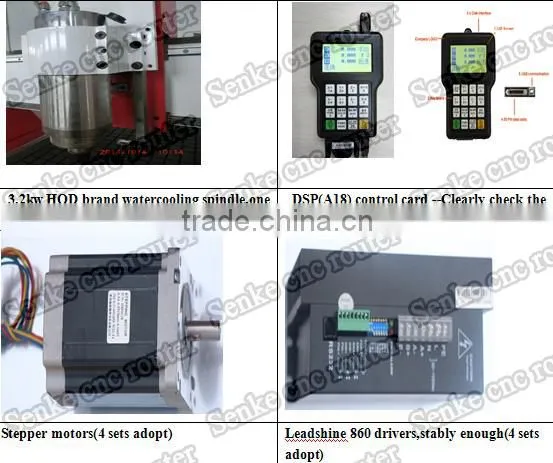

Main parts:

 CNC automatic wood foam mould making machine foam cutting machine cnc SKW-1325FCNC automatic wood foam mould making machine foam cutting machine cnc SKW-1325F



Technical parameters:



Working Area (X*Y*Zmm)

1300*1300*500mm

1300*2500*700mm

1500*3000*500mm



Body structure

Steel tubes

X, Y Structure

rack and pinion drive

Z Structure

Ball Screw/option gear wheel

X, Y Resolution

<0.01mm

Max Moving Speed

32000mm/min

Max Engraving Speed

20000mm/min

XYZ traveling positioning accuracy

0.03/300mm

XYZ repositioning accuracy

0.03mm

Spindle power

3kw/4.5kw/5.5KW/8KW(can be choices)

Spindle Speed

6000-18,000rpmrpm

Table style

Fixture/option vacuum table

Dust collection

Can add or not

Voltage

AC220V/50Hz or other can be customized

Drive type

Stepper/Option:servo

Working Dictate

G Code ,HPGL

Operating system

Dsp System/option syntec or LNC

Interface

USB

Flash memory

128M(U Disk)

Software Compatability

Type3/Ucancam Artcam



Applicable industry:

1 mould industry: carving various mould, such as auto mould, big ship foam block, aviation block, propellers, block the train.
2. Musical Instruments industry: can be carved large instruments 3 d surface, appearance cutting

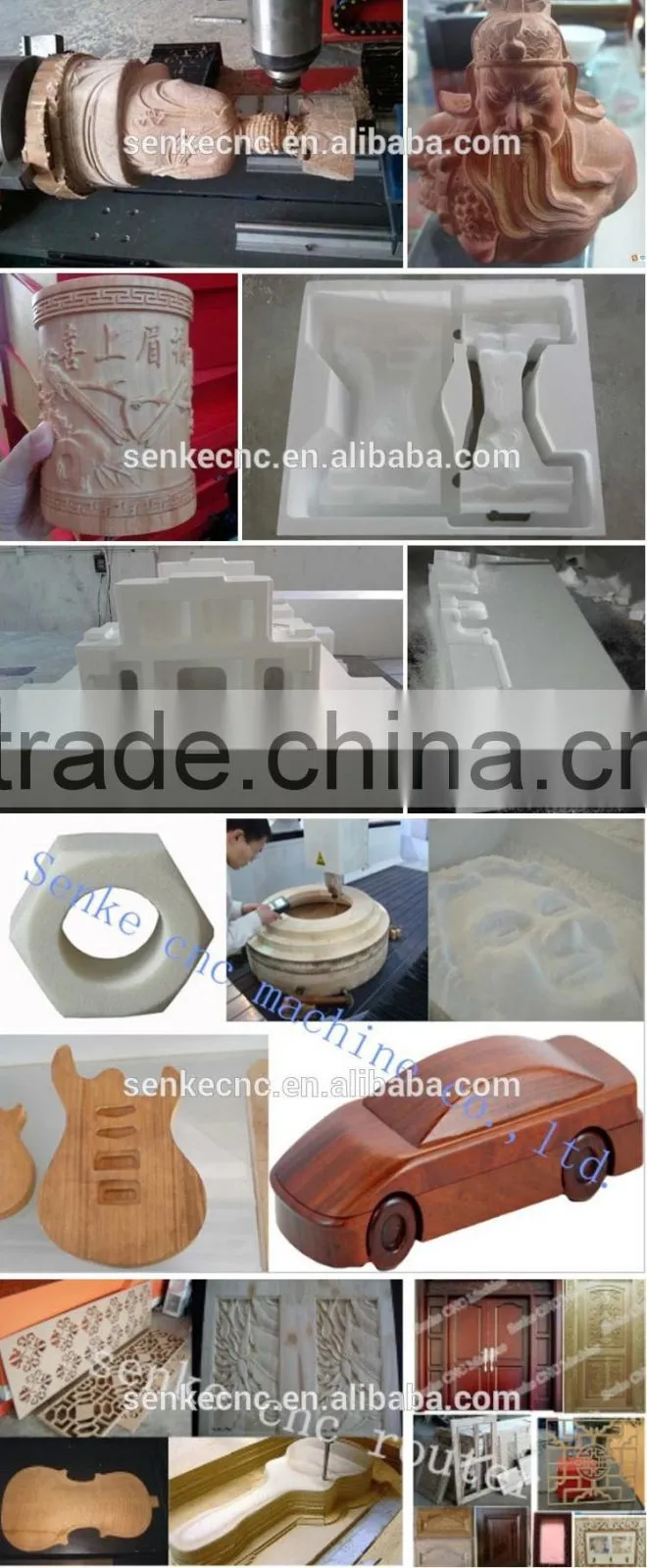

samples:

CNC automatic wood foam mould making machine foam cutting machine cnc SKW-1325F

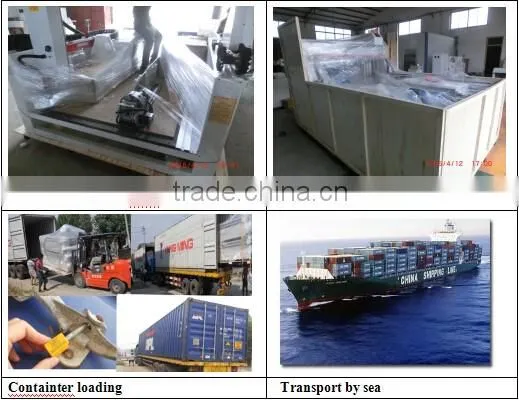

Packaging & Shipping

Double paking of protective film and fumigation-free wooden case:

 CNC automatic wood foam mould making machine foam cutting machine cnc SKW-1325F



Buyer Feedback

These are our customers feedback to our machine and service. they are so really that is possible you can contact them to ask any quesiton about our machines and service:



Our Services

Service:

1 We will provide the user a CD to study the machine installation and commissioning.

2 Our technicists can give user online guide.

3 The user can by call or email us any problems at any time.

4 After-sales service.

Two year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked.

Company Information

Our factory and work team:

CNC automatic wood foam mould making machine foam cutting machine cnc SKW-1325F

Certificate:

CNC automatic wood foam mould making machine foam cutting machine cnc SKW-1325F

thanks for your interest in our machine, please contact me directly as following:



Jinan Senke CNC Machine Co.,Ltd.
Web:
Wechat/WhatApp/Line: +86 18560019527
Tel: +86 531 88099059
Fax: +86 531 88099059
