Iptv Hdmi Encoder,hd Encoder Iptv ,Mpeg4 ts Multiplexer With 4hdmi H.264 Encoder

Iptv Hdmi Encoder,hd Encoder Iptv ,Mpeg4 ts Multiplexer With 4hdmi H.264 Encoder thumbnail-1
Iptv Hdmi Encoder,hd Encoder Iptv ,Mpeg4 ts Multiplexer With 4hdmi H.264 Encoder thumbnail-2
Iptv Hdmi Encoder,hd Encoder Iptv ,Mpeg4 ts Multiplexer With 4hdmi H.264 Encoder thumbnail-3
Iptv Hdmi Encoder,hd Encoder Iptv ,Mpeg4 ts Multiplexer With 4hdmi H.264 Encoder thumbnail-4
Iptv Hdmi Encoder,hd Encoder Iptv ,Mpeg4 ts Multiplexer With 4hdmi H.264 Encoder thumbnail-5
Iptv Hdmi Encoder,hd Encoder Iptv ,Mpeg4 ts Multiplexer With 4hdmi H.264 Encoder thumbnail-6
Iptv Hdmi Encoder,hd Encoder Iptv ,Mpeg4 ts Multiplexer With 4hdmi H.264 Encoder photo-1
Iptv Hdmi Encoder,hd Encoder Iptv ,Mpeg4 ts Multiplexer With 4hdmi H.264 Encoder photo-2
Iptv Hdmi Encoder,hd Encoder Iptv ,Mpeg4 ts Multiplexer With 4hdmi H.264 Encoder photo-3
Iptv Hdmi Encoder,hd Encoder Iptv ,Mpeg4 ts Multiplexer With 4hdmi H.264 Encoder photo-4
Iptv Hdmi Encoder,hd Encoder Iptv ,Mpeg4 ts Multiplexer With 4hdmi H.264 Encoder photo-5
Iptv Hdmi Encoder,hd Encoder Iptv ,Mpeg4 ts Multiplexer With 4hdmi H.264 Encoder photo-6
US$ 1 - 980 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
SC
Model Number:
SC1115
Contact Supplier Request Quote Chat Now
Chengdu Sochuang Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name SC
Model Number SC1115

iptv hdmi encoder,hd encoder iptv ,Mpeg4 ts multiplexer with 4hdmi h.264 encoder
support:HDCP/Audio volume edit
in:4HDMI+ASI
out:ASI+IP,UDP,spts/mpts,unicast/multicast








4IN1 HD/SD HDMI H.264 IP Encoder



Overview

4IN1 MPEG-4 AVC/H.264 HD (High Definition) Encoder (with IP output) supports 4×HDMI input, and generates DVB transport stream (TS/ASI) and MPTS (TS over IP) output. It suits 1U rack and supports1080i/p, 720p and HDCP. Besides, SC-1115 can be operated by both LCD/Keyboard and NMS (Network Management Software). Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.

Features

u       H.264/AVC High Profile Level 4.0 video encoding, advanced video pretreatment algorithm, MPEG-1 audio encoding

u       4×HDMI input

u       Support HDCP

u       Support multiple HD formats including 1080i/p and 720p

u       LCD/Keyboard control by front panel and network management by Ethernet

 Technical Specification

Input

4*HDMI interface, support HDCP

Output

ASI

DVB standard, 2*BNC interface

IP

IP/UDP (TS over UDP), 1*MPTS/4*SPTS,Unicast/Multicast

Video

4:2:0 encoding H.264 HP@L4 MP@L3

H.264 Adaptive Field Frame (AFF)

H.264 Field-Based (FB)

full HD: 1920×1080×60/50i/p, 1280×720×60p/50p

Bit rate :1 to 20Mbps (4:2:0) per channel

CBR/VBR

ISO/IEC14496-10 (H.264/MPEG-4 AVC)

Audio

Bitrate

128, 160, 192, 224, 256, 320, 384Kbps

Volume

Volume range 0~31

Property

MPEG-1 Layer 2

Sampling

32khz, 44.1khz, 48khz,etc.

Control

NMS (Ethernet Port), Keyboard + LCD

General Features

Size

482mm×280mm×44mm

Temperature

0~45°C (Operation); -20~80°C (Storage)

Power

100-240VAC (±10%), 50Hz, 25W



Order Guide

1115

4×HDMI+1xASI in, ASI+IP(1*MPTS/4*SPTS, Multicast/Unicast) out

1815

8×HDMI+1xASI in, ASI+IP(1*MPTS/8*SPTS, Multicast/Unicast) out









Network management software

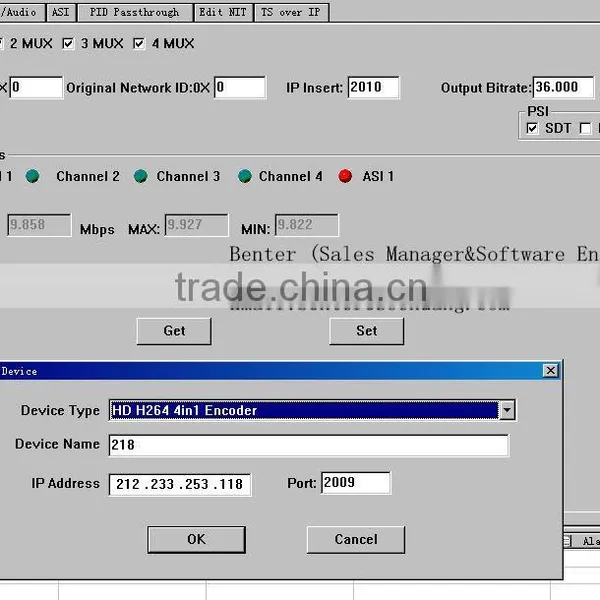

1>multiplexer output setting:

iptv hdmi encoder,hd encoder iptv ,Mpeg4 ts multiplexer with 4hdmi h.264 encoder

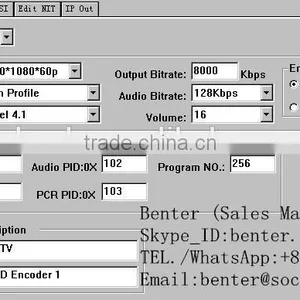

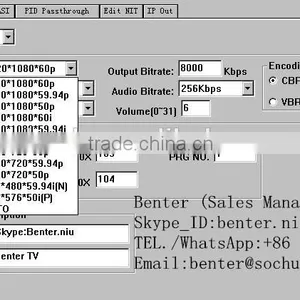

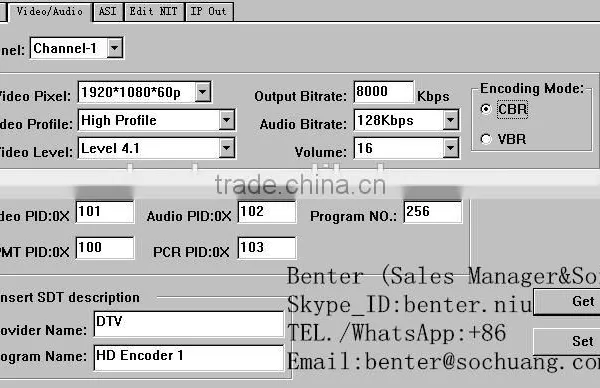

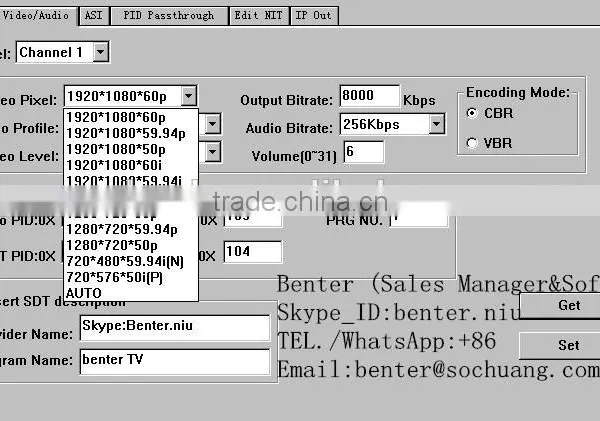

2>video audio setting:

iptv hdmi encoder,hd encoder iptv ,Mpeg4 ts multiplexer with 4hdmi h.264 encoder



iptv hdmi encoder,hd encoder iptv ,Mpeg4 ts multiplexer with 4hdmi h.264 encoder







NIT edit and insert:

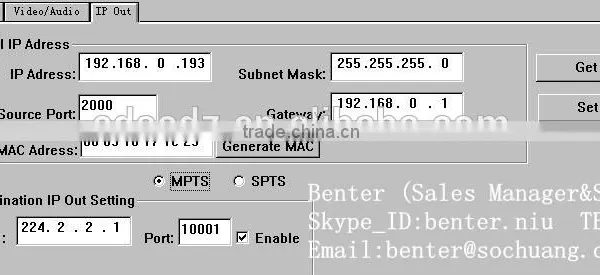

3>IP 1*MPTS output setting:

 iptv hdmi encoder,hd encoder iptv ,Mpeg4 ts multiplexer with 4hdmi h.264 encoder

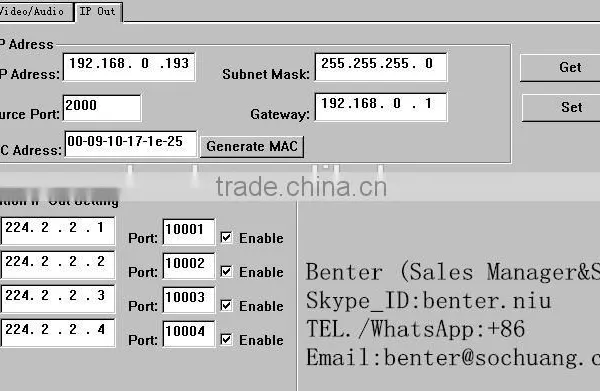

4>IP 4*SPTS output setting:



iptv hdmi encoder,hd encoder iptv ,Mpeg4 ts multiplexer with 4hdmi h.264 encoder
Assembling :

iptv hdmi encoder,hd encoder iptv ,Mpeg4 ts multiplexer with 4hdmi h.264 encoder



  Packing:

iptv hdmi encoder,hd encoder iptv ,Mpeg4 ts multiplexer with 4hdmi h.264 encoder







Stocking:

iptv hdmi encoder,hd encoder iptv ,Mpeg4 ts multiplexer with 4hdmi h.264 encoder





Company information:                                                   iptv hdmi encoder,hd encoder iptv ,Mpeg4 ts multiplexer with 4hdmi h.264 encoder



 iptv hdmi encoder,hd encoder iptv ,Mpeg4 ts multiplexer with 4hdmi h.264 encoder





Certificate&Exhibition:

iptv hdmi encoder,hd encoder iptv ,Mpeg4 ts multiplexer with 4hdmi h.264 encoder







 iptv hdmi encoder,hd encoder iptv ,Mpeg4 ts multiplexer with 4hdmi h.264 encoder

 iptv hdmi encoder,hd encoder iptv ,Mpeg4 ts multiplexer with 4hdmi h.264 encoder
