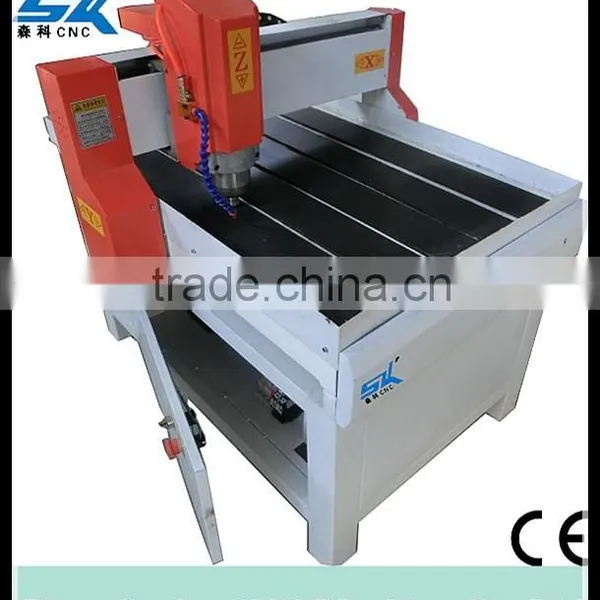

Mini CNC Metal Plates Machine for Engrave Logo mini cnc router for stone
Features:
1.Integrally cast lathe bed,solid and stable,high rigidity and long service time.
2. Imported high accuracy ball screw ensures more stable movement and high accuracy.
3. Aluminum decorated appearance,beautiful shape and magnificent looking.
4. Water-cooling brushless spindle/ air cooling spindle,low noise,vigorous cutting strength and long time mass processing
Technical parameters:
Discrip Discription |
Parameter |
|||
SKA-3030 |
SKA-3636 |
SKA-6090 |
Option |
|
Working Area (X*Y*Zmm) |
300*300*100mm |
360*360*100mm |
600*900*100mm |
customized |
Z Structure |
Ball Screw |
|||
X, Y Resolution |
<0.01mm |
|||
Max Moving Speed |
8000mm/min |
|||
Max Engraving Speed |
6000mm/min |
|||
XYZ traveling positioning accuracy |
0.03/300mm |
|||
XYZ repositioning accuracy |
0.03mm |
|||
Spindle power |
0.8kw/1.5kw/2.2kw(can be choices) |
|||
Table style |
Fixture |
|||
Spindle Speed |
0-18,000rpmrpm |
|||
Dust collection |
Can add or not |
|||
Voltage |
AC220V/50Hz |
|||
Drive type |
Stepper/Option:servo |
|||
Working Dictate |
G Code ,HPGL |
|||
Operating system |
NC-Stuido/Dsp option System |
|||
Interface |
USB |
|||
Flash memory |
128M(U Disk) |
|||
Software Compatability |
Type3/Ucancam Artcam |
|||

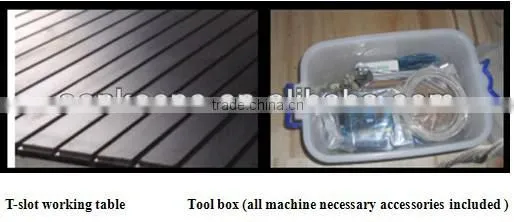

Machinery parts shows:
1. cutter holder watercooling spindle
Hardware parts and Taiwan Ball screw
Stepper drivers and motors as standrand.
NC-studio or DSP control systerm can optional
Applicable industry
Advesting industry,artcraft industry,various types of man-made plate,LED,light box,building modes,rulers badges,department cards etc
Appllicable materials
wood,pvc board,MDF board,PCB board,aluminum industry,3D technology,breastplate,indoor&outdoor decoration etc

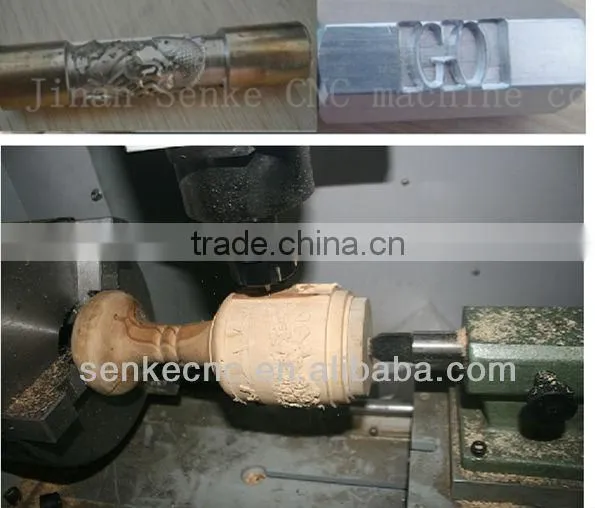

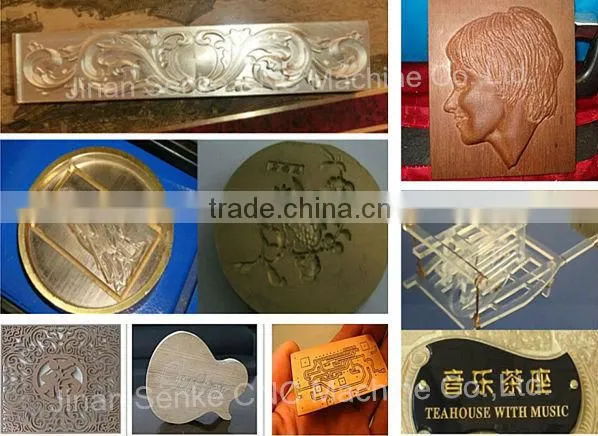

Parts of working sample:
Other work also available
Guarantee & After Sales Service:
1.One and a half years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2.Free training course at our plant.
3.24 hours on line service (MSN,Skype,Email ) every day, free technical support.
4.Machine has been adjusted before delivery , operation disk was included
How it works
1.Design in computer by artcam or mastercam with art
2.output the G-code files.
3.Input the G-code files to NCSTUDIO system
4.Fix the materials in aluminum T-slot table by clamps
5.Move XYZ back to reference point or mechnical point step by step. Z. X Y axis step by step.
6.set the working origin
What do we do for customer
Firstly, it is better for you to tell us your budget, your carving demand details as followings:
1) what is your materials name
2) what is your materials size or dimension
3) what do you want to do on your materials
Secondly, It is better to send us your materials (If materials is special) or We will make an effort to look for materials same as yours, Then we do a sample and test for you. Pictures or videos taken for your reference after that.
Thirdly, our team will supply best professional solutions, then quote you with suitable configurations and reasonable price. Machine color is up to you!
IF YOU NEED ANY HELP ON OUR VARIOUS TYPES,PLESE FEEL FREE TO CONTACT ME,WHETHER YOU ARE DISTRIBUTOR OR END USER, YOU WILL GET OUR MOST PROFESSIONAL SERVICES.
THANKS FOR YOUR READING!
