Product Details
Place of Origin: | Sichuan, China | Brand Name: | sochuang | Model Number: | SC-1816 |
Product Description

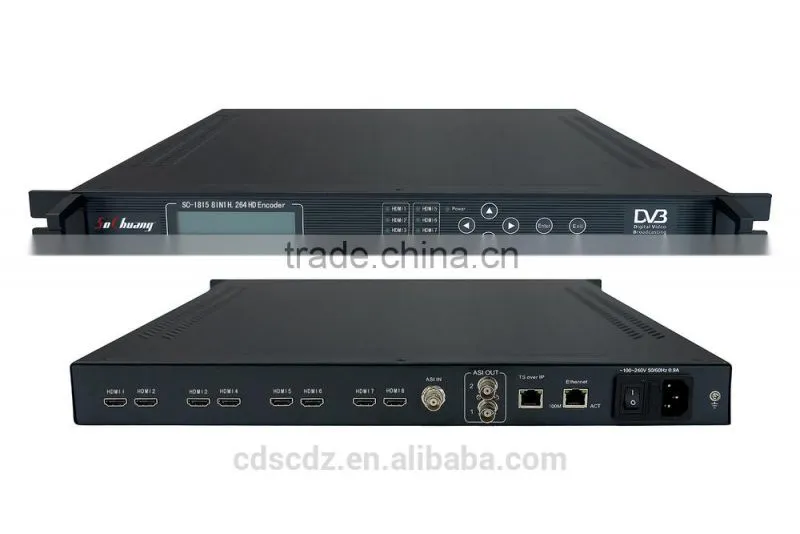

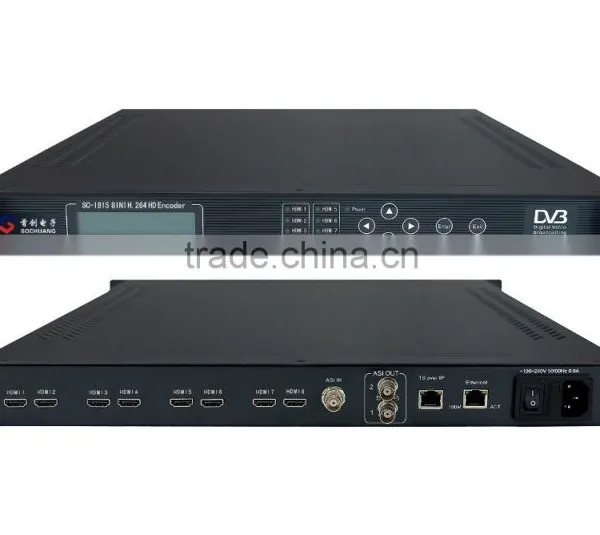

8 channel HD AVS+ encoder(HDMI in and IP+ASI out)
Overview:
8 channel AVS+ high definition (HD) encoder is a user-friendly, powerful encoder, it support multiple resolution including 1080i/p 720i/p, 8 channel HDMI input, support HDCP input , output one channel MPTS or 8 channel SPTS ASI/IP, TS over IP, multicast,unicast.
Features:
. AVS/AVS+ encoding
. HDCP supported
. 8 channel HDMI source input
. ASI x2 and 1000M IP output
. Support multiple HD formats including 1080p/i, 720p/i;
. LCD/NMS management
Technical Specification:
Input | SD CVBS | not support | |
HD SDI | not support | ||
HD HDMI | 8 channel HDMI input | ||
YPbPr | not support | ||
Output | ASI | 2 ASI/TS DVB standard ,BNC port | |
IP | IP/UDP/RTP (TS over IP) Gigabyte | ||
Standard | ISO/IEC14496-10(H.264/AVC) | ||
Output bitrate | 1 to 20Mbps(4:2:0 CBR or VBR) for each channel | ||
Control | NMS(Ethernet Port), Keyboard+LCD | ||
Video Coding | 4:2:0 Encoding H.264 HP@L4 MP@L3 | ||
AVS encoding | |||
AVS+ encoding | |||
FULL HD(1080P/I 50/60HZ,720P/I 50/60HZ,D1) | |||
audio coding | sampling frequency | 32KHz,44.1KHz,48KHz | |
code rate | 64,128,192,256,384Kbps | ||
property | MPEG-1 ,Layer2 | ||
Resolution | Standard | FULL HD(1080P/I 50/60HZ,720P/I 50/60HZ,D1) | |
PAL | support | ||
NTSC | support | ||
General Features | Size | 44mm*482mm*410mm(1RU) | |
Environment | 0 ~ 45(Operating);-20 ~ 80(Storage) | ||
Power | 220VAC±10%,50Hz,25W |
Network management:

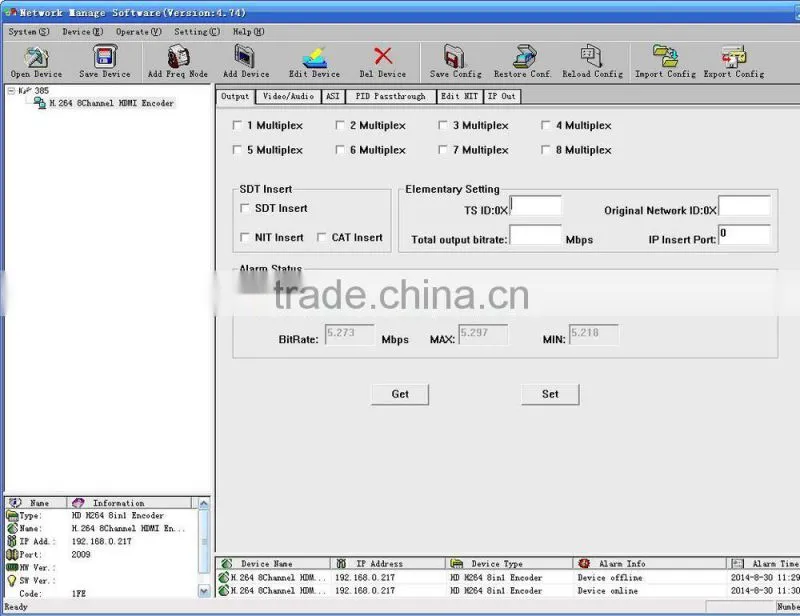

P1: Output Setting

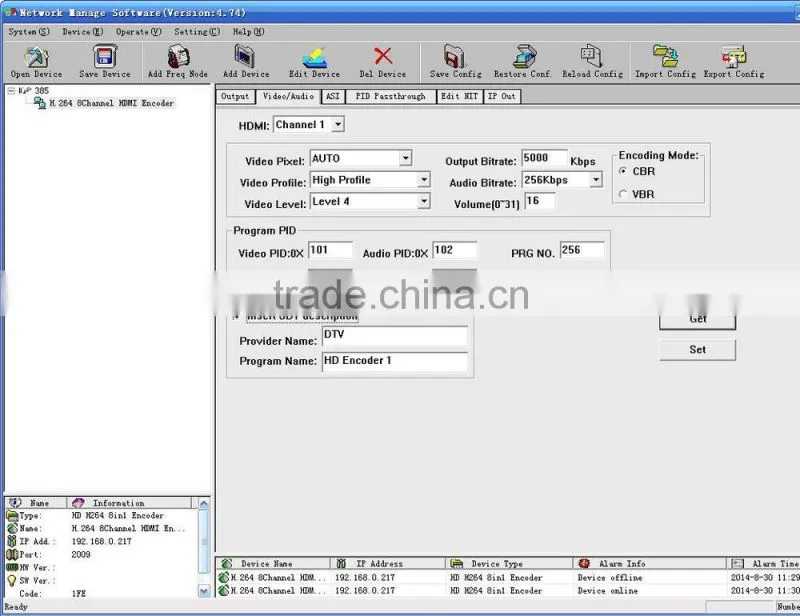

P2: Video/Audio Setting:

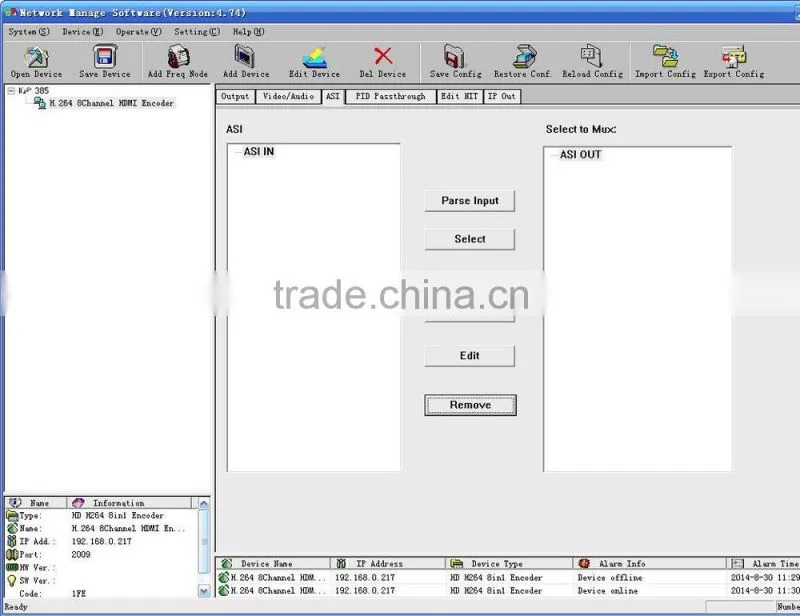

P3: ASI input multiplexer:

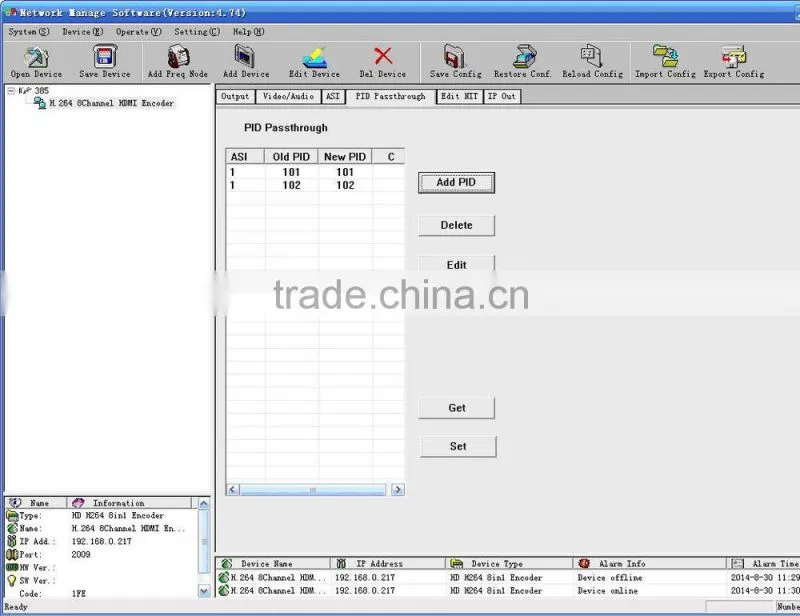

P4: PID Passthrough:
P5: NIT table Insert:
P6: IP Output Setting:
3 years warranty, life time maintenance, repair, technical support, OEM,ODM.
