Home > Electrical & Electronics > Telecommunication & Broadcasting > Radio & TV Broadcasting > SC-1102 MPEG-2 4IN1 Encoder

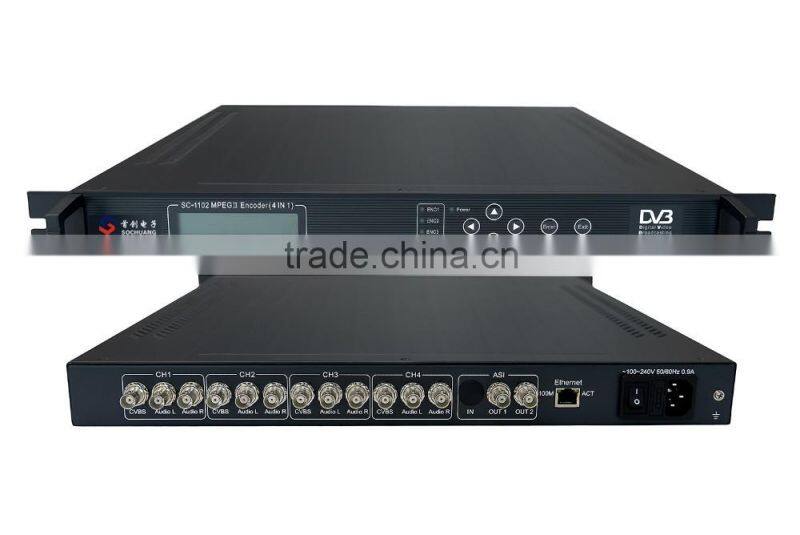

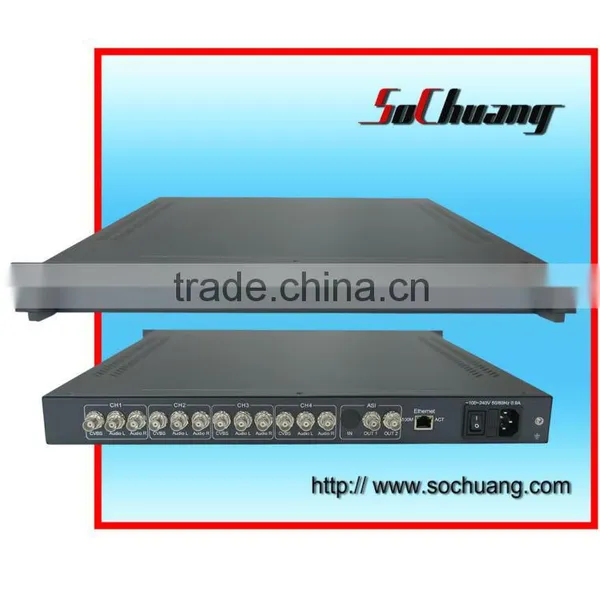

SC-1102 MPEG-2 4IN1 Encoder

Name: SC-1102 MPEG-2 4IN1 Encoder
Brand: SoChuang
SKU: 116092167
Availability: InStock

US$ 1 - 500 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

SoChuang

Model Number:

SC-1102

Contact Supplier Request Quote Chat Now

Chengdu Sochuang Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name SoChuang

Model Number SC-1102

Product Description

MPEG-2 4IN1 SD A/V Encoder (4 AV/CVBS in, ASI out, MB86391)

Overview

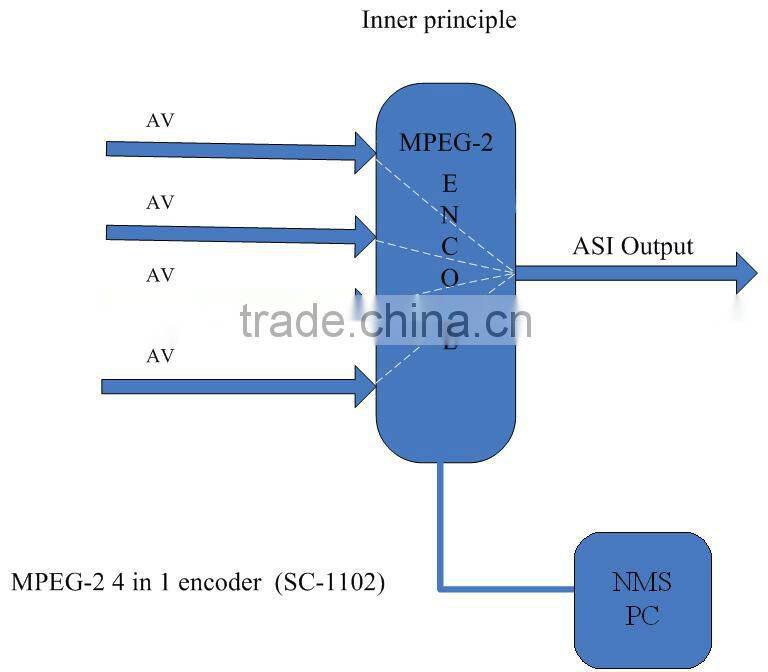

4IN1 MPEG-2 Encoder supports SD MPEG-2 video and MPEG-1 audio encoding. It has 4×CVBS video and 4 pairs of unbalanced audio input interfaces, to generate DVB transport stream (TS/ASI) output. The encoder suits 1U rack and can be configured by front panel LCD and NMS (network management software). Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.

Features

u MPEG-2 video and MPEG-1 audio encoding

u 4×CVBS video and 4 pairs of unbalanced audio (mono/stereo) input

u PID, program name and program number edit

u Support PAL and NTSC video formats

u Bit-rate setting and monitoring

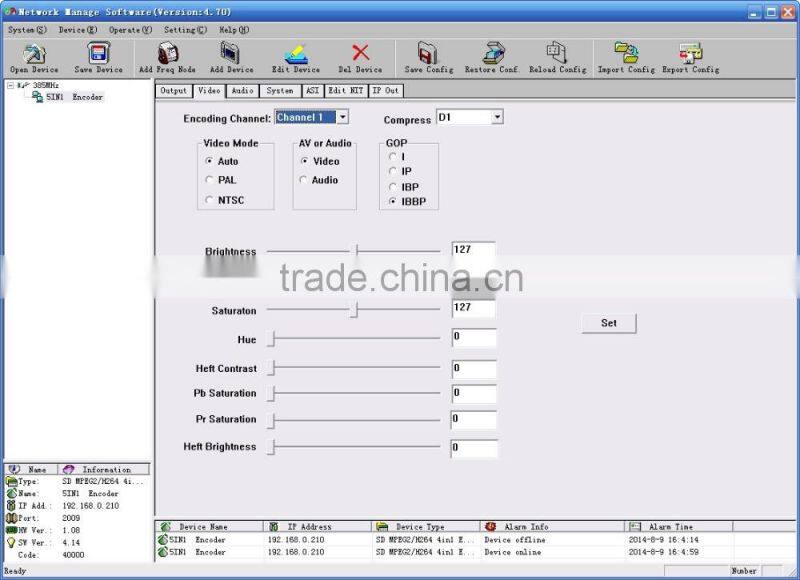

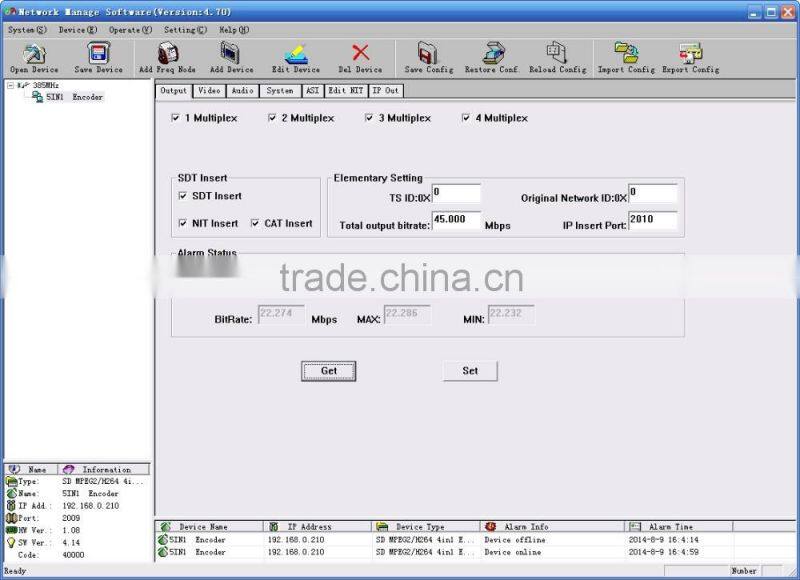

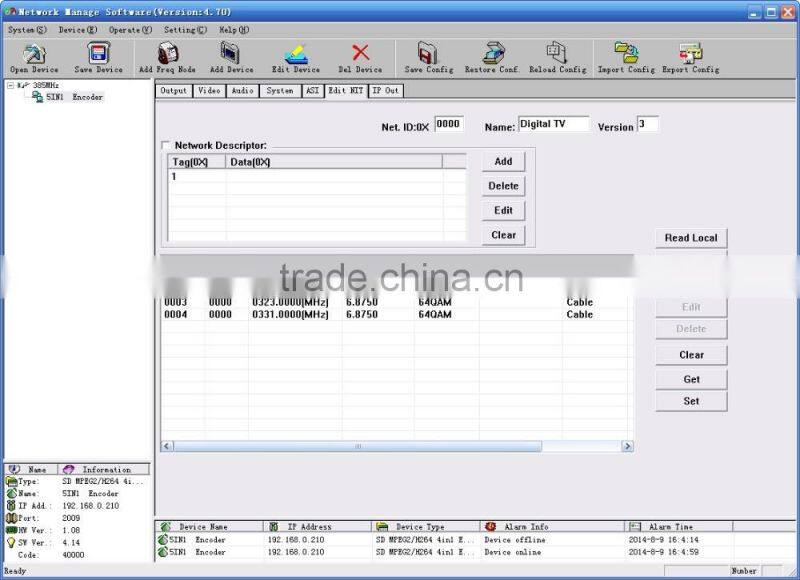

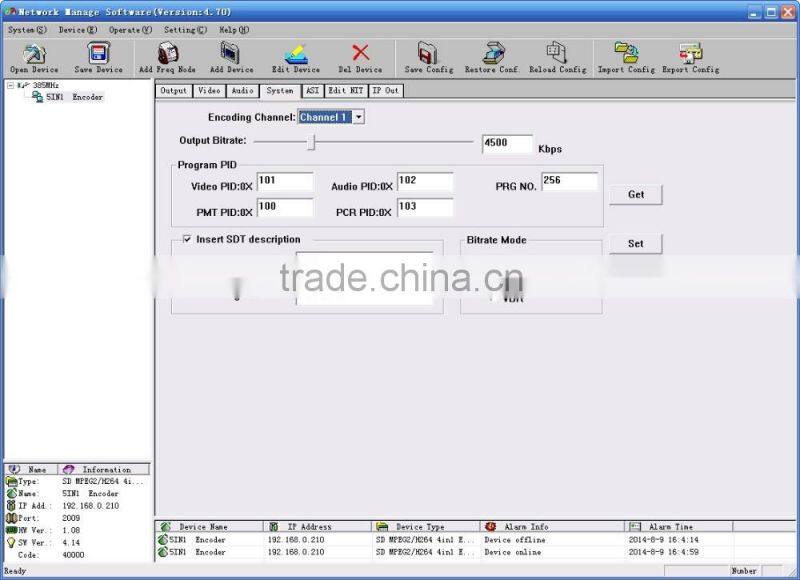

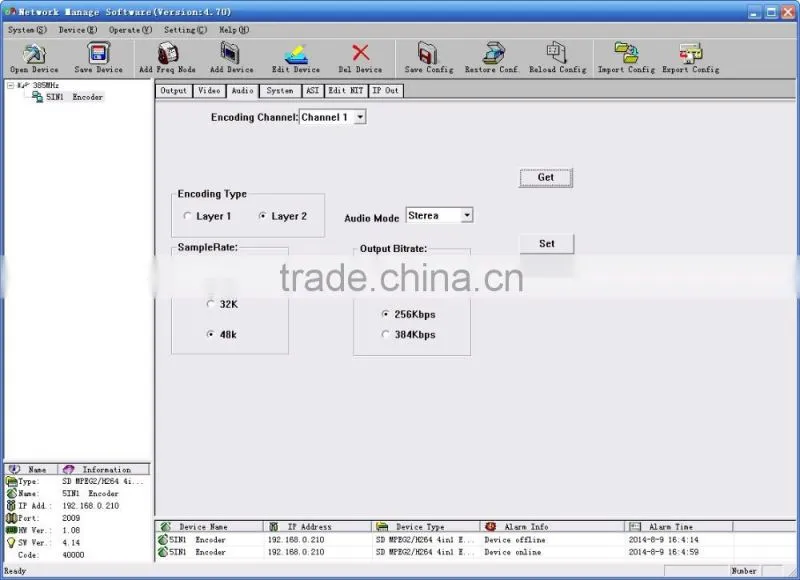

u LCD/Keyboard control by front panel and network management by Ethernet

Technical Specification

Input	Video Signal	4×CVBS, BNC interface
Input	Audio Signal	4 pairs of unbalanced audio, BNC interface
Video Coding		comply with ISO11172 (MPEG-1) & ISO13818 (MPEG-2)
		MPEG-2 coding adopt MP@ML (4:2:0)
		MPEG-2 Adaptive Field Frame (AFF)
		MPEG-2 Field-Based (FB)
		rate control: CBR/VBR
Resolution	Standard	comply with CCIR601 standard, support 1/2D1, 2/3D1, 3/4D1
	PAL	720×576, 704×576, 640×576, 544×576, 480×576, 384×576, 352×576
	NTSC	720×480, 704×480, 640×480, 544×480, 480×480, 384×480, 352×480
Audio Coding	Sampling	32KHz, 44.1KHz, 48KHz
	Code Rate	64, 128, 192, 256, 384Kbps
	Property	MPEG-1 Layer2, 1×stereo or dual-channel
Bit Rate	1.0~15Mbps continuously adjustable per channel
Output	2×ASI	DVB standard, BNC interface
Control	NMS (Ethernet port, RJ-45), Keyboard + LCD
General Features	Size	482mm×410mm×44mm
	Temperature Range	0~45°C (Operation); -20~80°C (Storage)
	Power	100-240VAC, 50Hz, 25W
