Help CenterAsi to e3 Converter Adaptor
Related Products
-
Sc2224 Sc-2224 e3 to Asi Converter AdaptorUS$ 1 - 500MOQ: 1 Set -
8 ch ASI -IP Converter/8 Channel Asi- ip GatewayUS$ 1 - 800MOQ: 1 Set
-
ts Over Udp ip to Asi Converter (DVB-S/S2+ASI+IP+2*CI In,AV+HDM I+SDI(1080i/720p/576i)+YPbPr+IP+ASI Out)US$ 1 - 480MOQ: 1 Set
-
Asi 4 e1 to 4e1 Asi Converter AdaptorUS$ 1 - 500MOQ: 1 Set
-
Asi e1 to e1 Asi Converter Adaptor (ASI+4 E1 IN and 4 E1+ASI Out)US$ 1 - 500MOQ: 1 Set
asi to e3 converter adaptor
convert e3 to ASI
convert ASI to e3
34 Mbit/sec (E3), the standard ITU-T G.703
2224

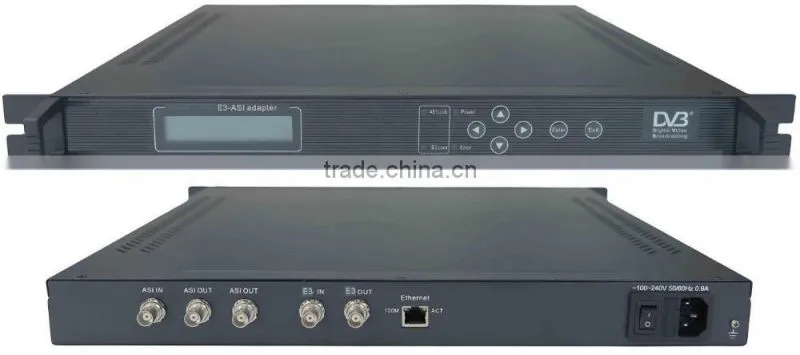

E3-ASI Adapter
Technical Specification
Input |
ASI, |
BNC interface |
DS3(E3) |
BNC interface |
|
Output |
DS3(E3) |
BNC interface |
ASI |
2*BNC interface |
|
Bitrate |
DS3 stream frame structure complies ITU-TG.752,ITU-TG.804; DS3 signal physical interface complies ITU-TG.703; Transmitting output DS3:44.736Mbit/s; Receiving input DS3:44.736Mbit/s. |
|
Control |
IP remote |
NMS (Ethernet Port, RJ-45) |
Front panel |
Keyboard + LCD |
|
General Features |
Size |
482mm×280mm×44mm |
Temperature Range |
0~45°C (Operation); -20~80°C (Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
Order Guide
2221 |
ASI+DS3 in, DS3+ASI out, 44.736Mbit/s |
2224 |
E3: 34.368Mbps |
E3-ASI adaptor parameter
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
