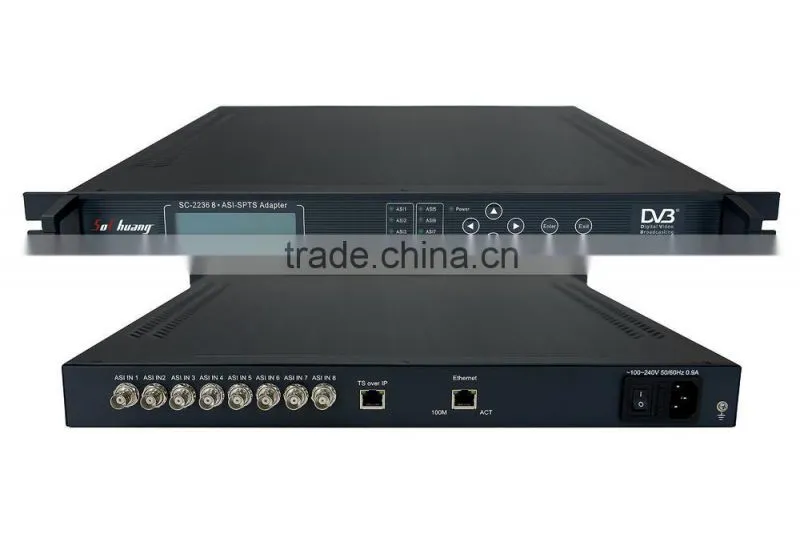

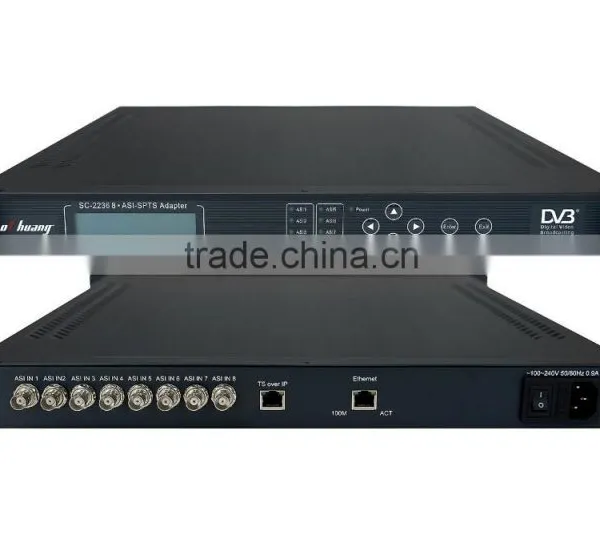

8IP-8ASI/8ASI-8IP Adapter/Gateway is one of the main equipment of the cable digital TV headend, receiving data from the
encoder, multiplexer, DVB gateway, scrambler, video server and other DVB transport stream, transform into IP/UDP
streams (TS over IP) Multicast, or to receive transport stream from the network and transform into ASI stream.
Features:
u Full hardware implementation, high efficiency and stability;
u 8ASI-8IP, 8IP-8ASI, Gigabit ts over ip port
u 8MB cache, anti-burst stream;
u Real-time stream monitoring;
u Local and remote control;
u LCD display in Chinese and English, easy and flexible to operate;
u High reliability, stable.
Technical Specification:
Management |
Network RJ-45 1000M base-TX,NMS |
||
Out |
ASI |
BNC/TS |
|
IP |
UDP/RTP, SPTS/Multicast, TS over IP(Gigabit |
||
General Features |
Size |
44mm*482*240mm |
|
Environment |
0 ~ 45(Operating); -20 ~ 80(Storage) |
||
Power |
220VAC(-+10%),50Hz,25W |
||
Network Management:
Similar model: SC-4105: DVB-S*6-QAM with Scrambler(6RF+ASI IN,QAM RF out)
SC-4125: DVB-S*6-4QAM TransModulator(RF(DVB-S)+ASI in,4 QAM RF out)
SC-4135: DVB-S/S2*6-4QAM TransModulator(RF(DVB-S)+ASI in,4 QAM RF out)
3 years warranty, life time maintenance, technical support, OEM,ODM.
Any question, please contact Skype ID: jackpeng2000
