Specifications
cnc router atc1,high frenquency
2,CE ISO
3,years or quality
4,hot sale
newest top quality cheap price cnc rouer machine/cnc router atc
Main features:
1. taiwan imported syntec or LNC control system,LCD screen touch operate with easy learn,fully function,.

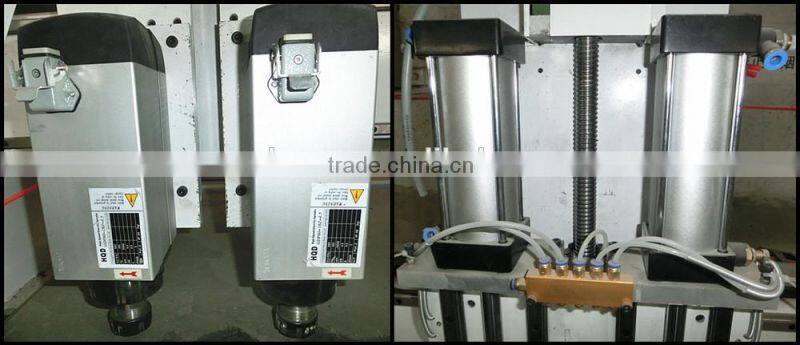

2. Italy imported HSD brand 9kw aircooling spindle,supply enough strong power,stably run and use,at the same time higher precision
3. japan imported yaskawa servo motors and drivers,high speed,long life and higher precision
4. big size gear rack keep the machine run stabely
5. Taiwan imported hiwin/pmi 25-30 square rails.
6. dust collect and vacuum table for optional choose
Technical Parameter
Model |
SKW-1325L/SKW-1530L/SKW-2030L etc |
X,Y,Z axis workin g area |
1300*2500*300mm |
Machine size |
3.1*2.2*1.78m |
X,Y movement |
Rack and pinion |
Z movement |
Ballscrew transmission |
Guide |
Taiwan HIWIN/PMI 25-30 square rails |
Max idling speed |
60000mm/min |
Max engraving speed |
30000mm/min |
Spindle power |
9KW Italy HSD aircooling spindle |
Spindle speed |
18000rpm |
inverter |
11kw |
Drive motors |
Japan Yaskawa 750w servo motors |
Tool magazine |
8 pieces,circular disk/inline type |
drivers |
Servo drivers |
Control system |
Taiwan SYNTEC control |
Working voltage |
380V or customized |
Command code |
G code |
software |
Artcam,type 3,etc |
collet |
ER32-ER40 |
Packing dimension(L*W*H) |
3.5*2.3*1.89M |
Standard equipment included |
1.automatic oil injection system 2.Tool sensor 3.vacuum table,5.5kw vacuum pump 4.whole set dust collector system |
PARTS
samples
Operation
all senke machine sending with software CD,software manual,teaching video,machine operate manual,packing list,if you want view first,please kindly contacted we seller directly,we send by email
Videos
if you want check,how the machine work,please kindly contact we seller,we will send to you senke router working video.
Training
we senke team was constituted by skilled staff,anyone of them with years experience,can operate all style control system machine skilled and adept,if you needed,we engineer oversea services available,detailed charges please contacted we seller,also if you like,welcome to us,in we factory,the training service itself free.
Q.what kind materials your machine can process?
according to parts adopt,the senke cnc router suitable for all kinds of materails,including metals and non-metals,such as types of wood,marble,granite,metals(aluminum,brass,cooper,steel etc),foam(EPS),PVC,PCB board,double-colour board,glass,tiles etc etc.
Q.how shall i choose the models?
different models suitable for different materials,just told us,what your mainly materials,what the materials size and what the mainly job need the machine do. we senke engineer will supply you the best solutions.
l me about the controller?
the commonly market use for cnc router including,nc-studio,mach 3,DSP,SYNTEC,LNC etc,according to models choose,senke adopt nc-studio as standard
Q.what other accessories included?
please kindly contact we seller,they will supply you the detailed senke router packing list.
