sofa leg cnc wood mdf acrylic stone carving cnc router for wood kitchen cabinet door woodworking cnc mill
Video of cnc router:
1, /watch?v=IHtWP0F4_Bc
2, /watch?v=oD5VBNh1sqc
3, /watch?v=0oVejWf7WT8
3. Double motors and drivers of Y axis ensure steady movement.
4. Applicatin of driver with high definition subdivision ensures fast speed and high accuracy.

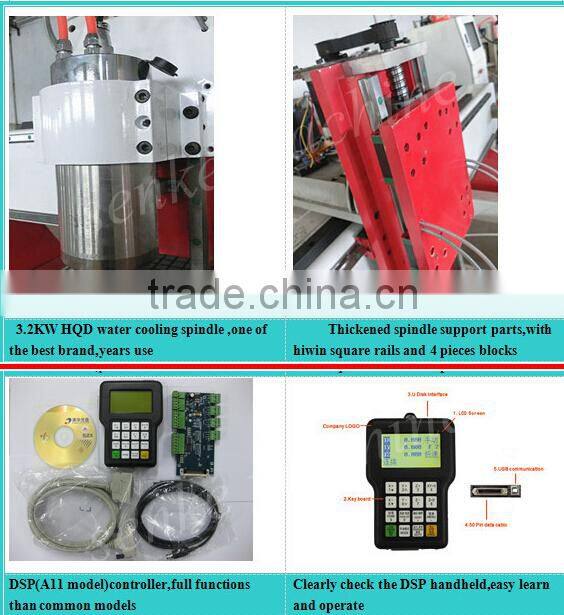

5. High power spindle, brushless, water cooling/air cooling, working vigorously with low noise.
Model |
SKW-1325N/SKW-1530N/SKW-2030N/SKW-2040N |
X,Y,Z axis workin g area |
1300*2500*200mm |
Machine size |
2100*3005*1600 |
X,Y movement |
Rack and pinion |
Z movement |
Ballscrew transmission |
guide |
Taiwan HIWIN/PMI 20 square rails |
Max idling speed |
40000mm/min |
Max engraving speed |
20000mm/min |
Spindle power |
3kw/4.5kw/6kw watercooling/aircooling (choose) |
Spindle speed |
24000rpm |
inverter |
Fuling2.2kw/ 3.7kw/7.5kw(depend on spindle choose) |
Drive motors |
Stepper motor (servo motors optional) |
drivers |
Stepper drivers or servo drivers |
Control system |
NC-STDUIO (dsp optional) |
Working voltage |
220V/380V or customized |
Command code |
G code |
software |
Artcam,type 3,etc |
collet |
ER 25-ER32 |
Packing dimension |
3.1*2.1*1.82M |
weight |
1200kgs |
Standard equipment included |
1.automatic oil injection system 2.Tool sensor 3.T-SLOT table with mechanical clamps |

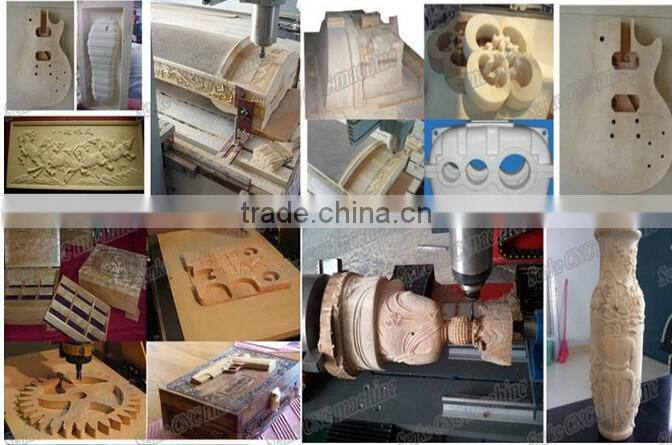

Advertising industry: advertising materials such as PVC, acrylic, double color plate processing
Operation
all senke machine sending with software CD,software manual,teaching video,machine operate manual,packing list,if you want view first,please kindly contacted we seller directly,we send by email
Videos
if you want check,how the machine work,please kindly contact we seller,we will send to you senke router working video.
Training
we senke team was constituted by skilled staff,anyone of them with years experience,can operate all style control system machine skilled and adept,if you needed,we engineer oversea services available,detailed charges please contacted we seller,also if you like,welcome to us,in we factory,the training service itself free.
Q1 : I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using cnc router/laser machine ,then let us give you perfect solutions and suggestions.
Q2: When i got this machine, but i did not know how to use it.What should i do?
We will send video and english manual with the machine.If you still have some doubts, we can talk by telephone or skype.
Q3: If some problems happend to this machine during warranty period,what should i do?
We will supply free parts in machine warranty period if machine have some problem.While we also supply free after-service forever.
.
cnc router cnc router cnc router cnc router cnc router cnc router cnc router cnc router cnc router cnc router cnc router cnc router
|
Contact |
Us |
|
|
Jinan senke cnc |
machine . |
|
|
Name : |
Anny Yu |
|
|
Email: |
|
|
|
Skype: |
senkeroutercnc |
|
|
Whatsapp: |
86-18560019528 |
|
|
TM: |
cn1511919883 |
|
|
Tel: |
86-531-88099059 |
|
|
Fax: |
86-531-88796730 |
|
|
Any other questions |
feel free contact us |
|
cnc router cnc router cnc router cnc router cnc router cnc router cnc router cnc router cnc router cnc rouer cnc router cnc router
