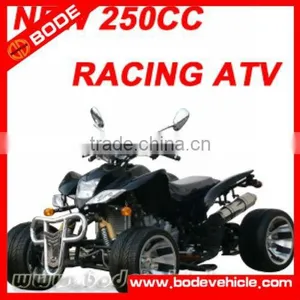

250CC RACE ATV (MC-365)

Specifications

 1.250CC RACE ATV
2.ZONGSHEN WATER COOLED ENGINES RACING ATV 250CC
3.EEC COC RACING QUAD
4.TWO EXHAUST

250CC RACE ATV (MC-365)

1.Type: single cylinder, water-cooling,4-stroke
2.Transmission:4 gears with one reverse gear,manual cluth
3.Ignition mode:CDI
4.Compression propor:10.5:1
5.Power:9.6KW/7,500rpm
6.Max.torque:12.7N.m/6,000rpm
7.Displacement:243ml
8.Start mode:electric
9.Tranmission mode:chain
10.Min.ground clearance:100mm
11.Max.speed:>70km/h
12.Power source:12V,9AH
13.Fuel tank capacity:4L

Chassis
1.Front wheels:235/30-R12
2.Rear wheels:250/40-R10
3.Break type(F/R):disc/disc
4.Front hanging:double arm-swing
5.Rear hanging:integral
6.Dimensions
duct dimensions:2020x1330x960mm
8.carton  dimensions:1680x960x800mm
9.wheelbase:1380mm
10.height of seats: 680mm
11.dry weight:167kg
12.load capacity:225KG
13.climbing degree:>20
14.Other
Conveyance:Qty/20'    GP:15
 Qty/40'    GP:36
 Qty/40'    HQ:36
Foot brake stop the 4 wheels.
Atv and go kart HS code:8703101100
