New Mark System With Fully Autonomous Marking Gun
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
France
Brand Name:
SIC Marking
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/CAEN/AMHERSTBURG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
the Newest Marking Machine E-MARKNegotiableMOQ: 1 Set -
New Design Marking System With CordlessNegotiableMOQ: 1 Set
-
the Newest Design Battery Powered Marking MachineNegotiableMOQ: 1 Set
-
New Design Marking Machine for Marking the Metal SurfaceNegotiableMOQ: 1 Set
-
E10 P123 Portable Marking Gun, Marks Any Material, POWERFUL, LIGHTWEIGHT HANDHELD DOT PEEN MARKER, Portable - Dot PeenNegotiableMOQ: 1 Set
Condition
New
Place of Origin
France
Brand Name
SIC Marking
Model Number
E-MARK
Rated Power
100W
Engraving Speed
2.5characters per second
Main Axle Rotational Speed
2.5characters per second
Feeding Height
60/80/120mm
Milling Cutter Diameter
Dot peen
Application
Metal
Dimensions
288 x 271 x 135 mm (11.34" x 10.67" x 5.3")
Weight
3.2kg
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
E-Mark, Cordless Marking
Portable - Dot peen
BATTERY-POWERED MARKING MACHINE
E-Mark is the portable, battery-powered, and fully autonomous marking gun!
Thanks to its powerful 18V Lithium Ion rechargeable battery, E-Mark has no awkward cables that can risk shock or trip hazards. Lightweight and versatile, this completely autonomous marking gun is perfect for the identification of heavy, large, or difficult to access parts. Robust and ruggedly reliable, E-Mark's advanced mechanical precision allows for superior quality marking that is perfect for, among other things, datamatrix marking.
It may be the lightest dot peen marking machine on the market, but it will mark even the toughest of materials, from plastics to hardened steel up to 62HRC (see below for details). Included with the shipment is a special carrying case, for convenient transport between job sites.
Its integrated software and keyboard, and icon-driven menus allow for the creation and modification of markings directly on the machine. The software is continuously revamped to increase the ease of use and flexibility.
Product Gallery

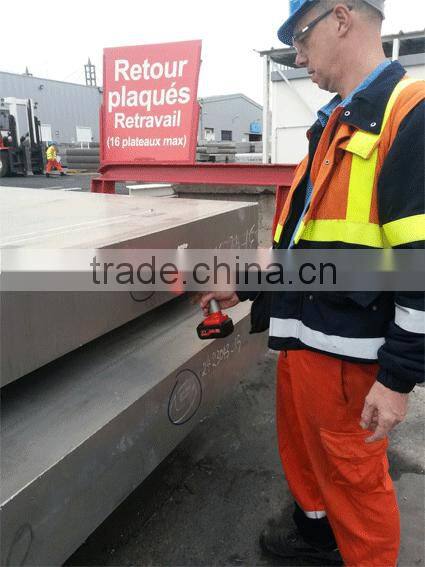

In Action

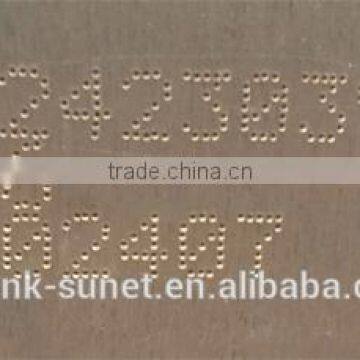

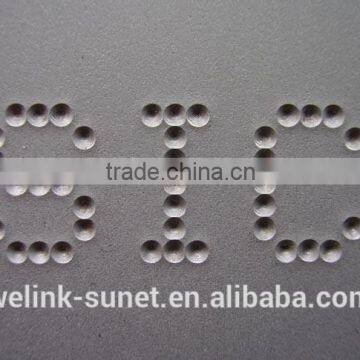

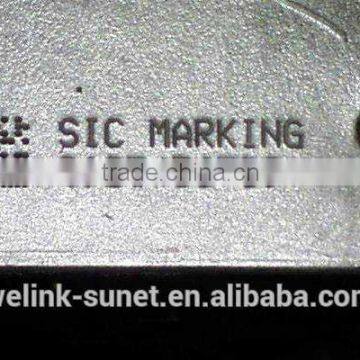

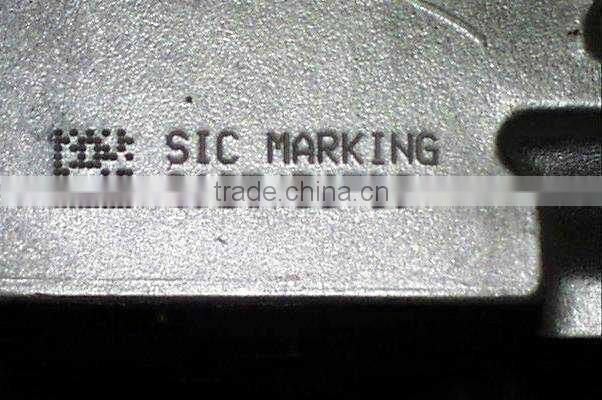

Marked Part
Technology
MECHANICAL TECHNICAL FEATURES
| Dimensions | 288 x 271 x 135 mm (11.34" x 10.67" x 5.3") |
| Marking Types | Alphanumeric, Variable (serial or text), Datamatrix Code, and Logo |
| Marking Window | 60 x 25 mm (2.36" x 0.98") |
| Weight | 3.2 kg (7 lbs) |
ELECTRONIC TECHNICAL FEATURES
| Memory | 100 MB |
| LCD color screen | 320 x 240 Pixel |
| Keyboard | intergrated Overlay Membrane |
| Power | 100 Watt |
| 18V Li-ion 18V Battery | 4 Hours Marking Autonomy (normal use) |
Software
| Marking Types | Alphanumeric, Variable (serial or text), Datamatrix Code, and Logo |
| Transfer of Marking Files | Via USB Key |
| Fonts | 4x6, Arial, Courier, OCR, OCR-A, OCR_BOLD, Comic, and Comic_B |
| File Editing and Creation | Complete Set-Up of All Parameters |
| Impact Force | 1 to 9 |
| Marking Depth | 0.3 mm (may vary depending on the material being marked) |
| Resolution Between Dots | 0.05 mm |
| Password | 1 level |
