4 wheeler

steel frame and carton

Specifications

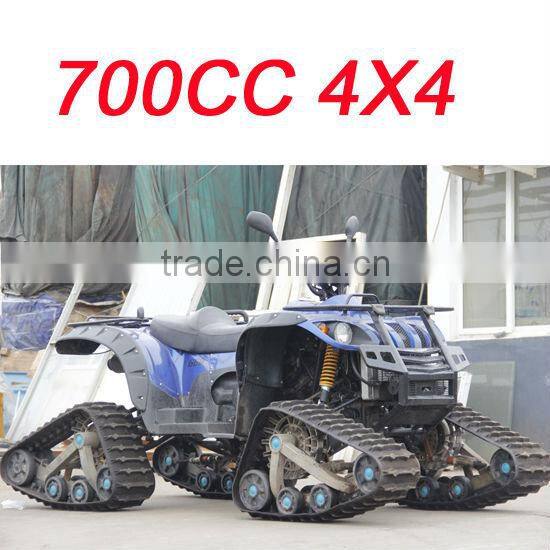

4 wheeler atv
700cc racing 4 wheeler
Chinese 4 wheeler with 4x4
700cc automatic engines

700CC Specification
No. Category  Data
1 ATV L×W×H,mm 2250x1150x1200
2  Wheelbase,mm 1460
3  Tread,mm Ft920,Rr880
4  Min. Clearance,mm 230
5  Min. Turning Radius,mm ≤4800
6  Handlebar swing angle,(°) 30±3
7  Net Weight,kg 360
8  Loading Capacity,kg 220
9  Top Speed,km/h 120
10  Brake System(Ft/Rr) Linkage Disc Brake
11  Brake Operation(Ft/Rr) Hand & Foot brake
12  Rim(Ft/Rr) Alloy Wheel Rim
13  Tyre(Ft/Rr) Ft:26x9-12,Rr:26x11-12
14  Tyre Pressure(Ft/Rr),kPa 150
15  Transmission Shaft Drive
16 ENGINE Model Number bode1100MR
17  Brand BODE
18  Type Single Cylinder,4-Stroke,Water-cooled,4-Valve
19  Manufacture Stannic
20  Bore×Stroke,mm 100x84
21  Cylinder Volume,ml 659.4
22  Compression Ratio 10.2:1
23  Rated Power/Rev,kw(r/min) 30/550
24  Maximum Net Power/Rev,kw(r/min) 32/5800
25  Maximum Torque/Rev,kw(r/min) 56/5000
26  Min. Fuel Consumption Rate,g/(kw.h) 270
27  Min Steady Rev with No-Load,r/min 1500
28  Fuel Type No.93 Unleaded Petrol
29  Lubrication Pressure/Splash
30  Lubricating Oil SF15W-40
31  Clutch Automatic Centrifugal
32  Start Mode Electric
33  Ignition DC-CDI
34  Carburettor Vacuum Diaphragm
35  Spark Plug K6RTC
36  Battery GT20-4
37  Headlight 12V  35Wx2
