Sic E10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot Peen Portable Vin Number Marking Machine

Sic E10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot Peen Portable Vin Number Marking Machine thumbnail-1
Sic E10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot Peen Portable Vin Number Marking Machine thumbnail-2
Sic E10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot Peen Portable Vin Number Marking Machine thumbnail-3
Sic E10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot Peen Portable Vin Number Marking Machine thumbnail-4
Sic E10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot Peen Portable Vin Number Marking Machine thumbnail-5
Sic E10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot Peen Portable Vin Number Marking Machine photo-1
Sic E10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot Peen Portable Vin Number Marking Machine photo-2
Sic E10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot Peen Portable Vin Number Marking Machine photo-3
Sic E10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot Peen Portable Vin Number Marking Machine photo-4
Sic E10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot Peen Portable Vin Number Marking Machine photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
France
Brand Name:
SIC Marking
Contact Supplier Request Quote Chat Now
Qingdao Welink-Sunet Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/CAEN/AMHERSTBURG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin France
Brand Name SIC Marking
Model Number e10-p123
Rated Power 300 Watt
Application Metal Materials
Dimensions 277 x 207 x 218 mm
Weight 9.1kg
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Overseas service center available

sic e10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot peen portable vin number marking machine

E10 P123 Dot Peen Machine Gun

Column mounted - Dot peen





POWERFUL, LIGHTWEIGHT HANDHELD DOT PEEN MARKER

The p123 portable dot peen marker is ideal for marking large and difficult-to-access parts. The specially designed front plate arches along the width to optimize marking on both flat and cylindrical surfaces. Thanks to the solenoid actuated marking pin, the p123 requires minimal maintenance and no pneumatic system. Capable of marking any material (including plastics and metals up to 62HRC), it maintains a consistent quality and precise accuracy.

Its rugged cast aluminum boxy, ABS cover, and stainless teel front plate combine to make the p123 a powerful, lightweight, and trusted tool across a multitude of sectors.



Product Gallery

 sic e10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot peen portable vin number marking machine   sic e10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot peen portable vin number marking machine   sic e10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot peen portable vin number marking machine

In Action

 sic e10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot peen portable vin number marking machine   sic e10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot peen portable vin number marking machine

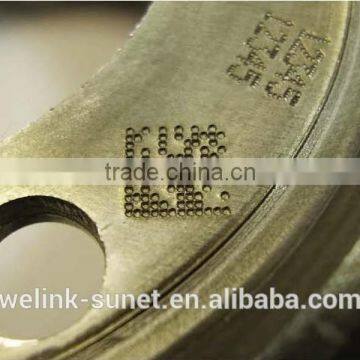

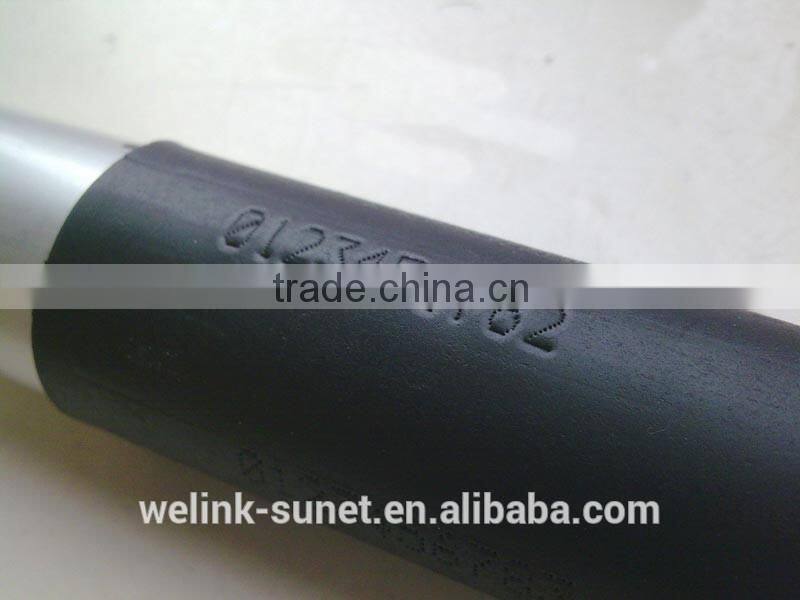

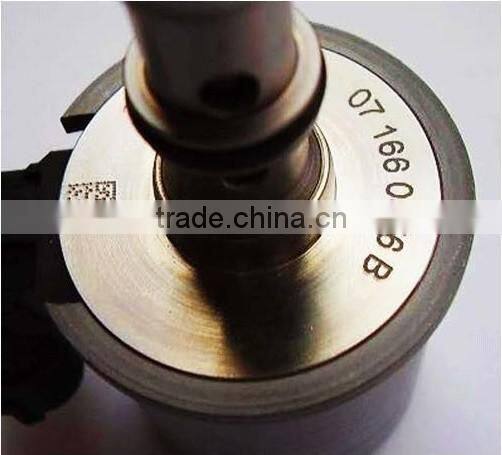

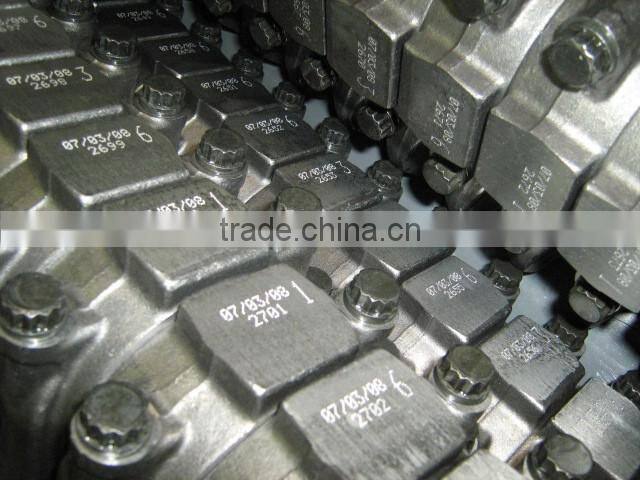

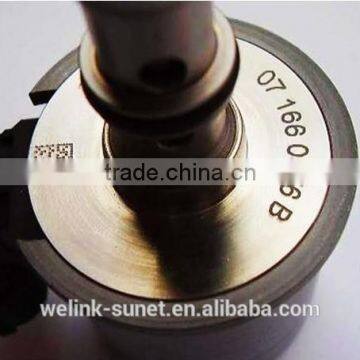

Marked Part

 sic e10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot peen portable vin number marking machine   sic e10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot peen portable vin number marking machine   sic e10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot peen portable vin number marking machine





Technology

MECHANICAL TECHNICAL FEATURES



Marking Window 120 x 25 mm or 120 x 40 mm
Dimensions 277 x 207 x 218 mm
Weight 4.1 kg

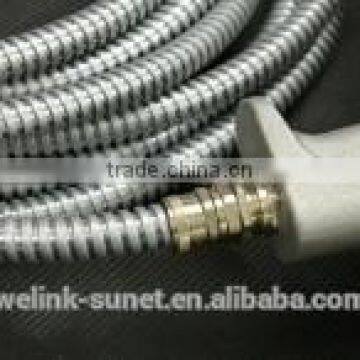

Robotic Cable 7.5m (up to 15m available)
Stylus Carbide 60 mm
Stability V-Shaped Front with Anti-Slip Surface
Setup Positioning 4 Preset Positions



  ELECTRONIC TECHNICAL FEATURES





The e10 controller provides its operator with a direct and easy-to-use interface. Its large graphic display and membrane-protected QWERTY keyboard make it perfect for use in industrial environments. Because the control box does not have any openings or ventilation, its interior electrical components are protected from harsh elements such as water, chemicals, dust, and material fragments.



Marking files can be up/downloaded from a PC to the controller using a USB key, or entered and edited directly on the machine. The e10's (included) comprehensive software package allows for linear, angular, radial, and mirror image marking, and an optional booster card can be used for deep marking. An additional 3rd and 4th axis circuit board can be installed to control a motorized column and rotary axis. The software package incorporates self-diagnostic and machine history functions, making it a "smart" user friendly machine.

Dimensions 322 x 380 x 112 mm
Weight 5 kg
LCD Screen Resolution 480 x 272 p.
Keyboard QWERTY-Integrated, Membrane Overlay
Power 300 Watt
Power Supply Single Phase (85 to 260VAC, 50-60Hz)
Number of Controlled Axis 2 (optional 3 and 4 axis available)
Card Options : Booster (deep marking) and Ethernet (communication)
USB Port Transfer of Marking Files



Software



Marking Files More Than 2000
Memory 7110 Ko
Alphanumeric Characters Serial Number, Date Coding
Logos Creation from PC Software
Datamatrix Up to 348 Characters, 48 x 48 dots
Fonts Arial, Courier, OCR, and OCRA
Style Angular, Radial, Inverse, and Mirror
Speed Up to 5 Characters Per Second.
Character Size From 0.1 mm to 99 mm
Impact Force 9 Adjustable Levels
Depth Up to 0.5 mm
Resolution Between Dots 0.05 mm
Maximum Stylus Stroke Up to 8 mm
Work Shift Management 10 Shifts
Password Protection 3 Security Levels
Historical Function Password Protected
Maintenance Assistance Auto-Dignostic Component
Languages Available 17



COMMUNICATIONS
Ports RS232,RS422, USBx2, RS485, Profibus, and Ethernet Optional Board
Inputs/Outputs 16
External Keyboard Input USB
External Output 5V-0.5A and 24V-0.5A
Logos Creation and Transfer Software
File Backup on PC USB Key for Transfer
Database Link Optional





OPTIONS



sic e10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot peen portable vin number marking machine

Column and base for portable marking systems

This option enables mounting of a portable marking head into a set station to obtain a column-mounted system



Advantages :

  • Simplicity and flexibility.
  • Quick and easy handling and adaptation.
  • Low-cost option to enable transformation of portable or integrated marking heads into a column-mounted marking system to ease marking of small parts, identification plates, tags, etc.
sic e10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot peen portable vin number marking machine

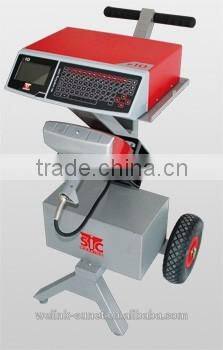

Cart for portable range

Cart & battery option for e8 and e9 portable marking systems



  • Economical and easy to use, provides total marking mobility
  • Ideal configuration for all outside markings (no need for compressed air line)
  • May be retrofitted with existing SIC Marking systems
sic e10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot peen portable vin number marking machine

Button box

Box with on / off buttons.Remote system start/stop

2.5 m connection cable to controller



Advantages :

  • Can start marking cycles manually.
  • Easy plugging
 sic e10 P123 Portable Marking Gun, POWERFUL, LIGHTWEIGHT Portable - Dot peen portable vin number marking machine

D rotary axis for e10 range (electric version)

This option, available on any column, peen or scribing device, allows you to mark parts up to 35 kg and with a diameter up to 250 mm. It marks long parts (tube, ...) with a through chuck.
The control software is included.


Caracteristics

  • 125 mm drill chuck
  • Cable between the axis D and the marking controller
  • Bits set for clamping parts on the inside:

    -maximum bore of the part 116 mm tight

  • Bits set for clamping parts on the outside:

    -125 mm maximum diameter clamping

  • Third axis chip for the controllermarking
