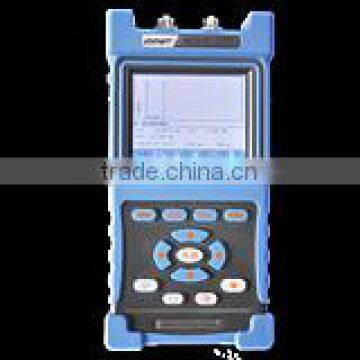

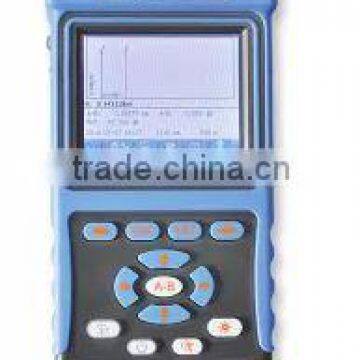

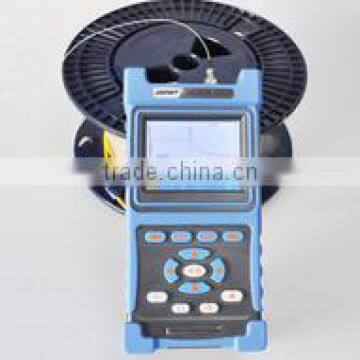

Help CenterSKYCOM OTDR Factory Price From China Manufacturer 1310/1550nm Best Performance
Related Products
-
One Click Fiber Optic CleanerUS$ 1,100 - 1,400MOQ: 1 Set -
Plam Easy Handle OTDR for Fiber Tester 1310/1550nmUS$ 1,100 - 1,400MOQ: 1 Set
-
Easy Operating Handhold OTDR T-OT300US$ 1,000 - 1,400MOQ: 1 Set
-
Palm Handhold Skycom OTDR T-OT100HUS$ 1,000 - 1,400MOQ: 1 Set
-
Hand-held Touch Screen OTDR(T-OT600 SV30A)/HOTUS$ 2,550 - 2,800MOQ: 1 Set
With 650 nm visible light source.
Quick start :< 5 seconds
Unique hotkey design: Key operation integrated hotkey function , fast positioning and analysis of events
USB/RS-232 data interface
1000 test records storage
Optimization design of power supply:Built-in NiMH rechargeable battery charge once can support 8 hours measurement
Multiple languages: CN/EN/DE/FR/RU/ES/PT/KR/VN
Dust-shock proof (2m drop test)
CE, FCC, FDA certificates
Live Optical Signal Check Function
To have live Optical Signal Check Function,before a test pulse, First check test whether any of the optical fiber live communication optical signals and display the results.It can effectively protect test instrument and communications equipment.
Complete software support
Single page single tracing line or single page more tracing line can choose the print mode;
Batch change and batch print function;
Waveform difference contrast function;
Can be in the same window open multiple tracing line at the same time,the differences between the tracing line in the same window display and more easily compare such as optical fiber aging caused by the reasons changing parameters;
Bidirectional testing function.
Type |
OT3302A |
OT3302B |
Dynamic Range(dB) |
32/32 |
30/28 |
Fiber Type |
Single Mode Fiber |
|
Wavelength(nm) (±20nm) |
1310/1550 |
|
Display Type |
Colorful |
|
Emitter Type |
LD |
|
Connector Type |
FC/PC(InterchangeableSC, ST) |
|
Measurement Time |
15s,30s,1min,2min,3min |
|
Attenuation zone |
12m |
18m |
Event dead zone |
2.5m |
5m |
Distance Measurement Accuracy |
±(1 m + 5×10-5×measurement distance + sample space) |
|
Attenuation Detect Accuracy |
±0.05 dB/ dB |
|
Reflection Detect Accuracy |
±4 dB |
|
Date storage |
1000 the test curve |
|
Date transmission |
RS-232/USB |
|
VFL output power(dBm) |
≥-3 |
|
VFL measurement distance (km) |
NON |
5km |
Power Supply |
NiMH chargeable battery/ AC adapter |
|
Operating Temperature |
0℃ ~ 50℃ |
|
Storage Temperature |
-20℃ ~ 70℃ |
|
Relative Humidity |
0~95%(non-condensing) |
|
Standard Package Includes:
Instrument, FC/PC connector, NiMH battery, TraceManager software CD, Data cable (USB/RS-232), AC adaptor, Soft carrying case, Warranty card, Quick reference guide.
With 650 nm visible light source
Quick start :< 5 seconds
Unique hotkey design: Key operation integrated hotkey function , fast positioning and analysis of events
USB/RS-232 data interface
1000 test records storage
Optimization design of power supply:Built-in NiMH rechargeable battery charge once can support 8 hours measurement
Multiple languages: CN/EN/DE/FR/RU/ES/PT/KR/VN
Dust-shock proof (2m drop test)
CE, FCC, FDA certificates
Live Optical Signal Check Function
To have live Optical Signal Check Function,before a test pulse, First check test whether any of the optical fiber live communication optical signals and display the results.It can effectively protect test instrument and communications equipment.
Complete software support
Single page single tracing line or single page more tracing line can choose the print mode;
Batch change and batch print function;
Waveform difference contrast function;
Can be in the same window open multiple tracing line at the same time,the differences between the tracing line in the same window display and more easily compare such as optical fiber aging caused by the reasons changing parameters;
Bidirectional testing function.
Reflection Detect Accuracy |
±4 dB |
|
Date storage |
1000 the test curve |
|
Date transmission |
RS-232/USB |
|
VFL output power(dBm) |
≥-3 |
|
VFL measurement distance (km) |
NON |
5km |
Power Supply |
NiMH chargeable battery/ AC adapter |
|
Operating Temperature |
0℃ ~ 50℃ |
|
Storage Temperature |
-20℃ ~ 70℃ |
|
Relative Humidity |
0~95%(non-condensing) |
|
Standard Package Includes:
Instrument, FC/PC connector, NiMH battery, TraceManager software CD, Data cable (USB/RS-232), AC adaptor, Soft carrying case, Warranty card, Quick reference guide.
ARE YOU THE MANUFACTURER OR TRADING COMPANY?
We are the manufacturer and have our own workshops which more than 2000 m2.
How long is the warranty?
We guarantee all our electrical and mechanical parts for one year from the delivery date the machine running smooth in customer's place.
How's your service?
We are responsible for the whole saling process of our products, and whenever you have questions during use, just call us, we are glad to help you timely.
How's the shippment?
Shipment by DHL, FedEx, TNT directly to your hands. EMS. 3-5days for small order, kindly negotiation for bulk order.
How's the payment term?
Payment accept T/T, Western Union, etc.
What's the MOQ?
1 set is available.
WHY DO WE CHOOSE YOUR COMPANY?
1. We are gold supplier with 3 years history, up to now, our products have been covering more than 20 countries of all over the world.
2. OEM/ODM ,Customized service.
3. Factory Direct price must be competitive
4. Offer service of adding customer's logo
5.Special discount and protection of sales area provided to your distributor. Good after-sale service offered, please get back if you got question
How can we go to your factory:
1. take the beijing-shanghai high-speed railway to Nanjing South Station, from Nanjing South station to our factory just 40 minutes by car.
2. Nanjing airport to our factory 1.5 hours by car. ( We could pick you up at the airport. )
Sincerely welcome you to visit our company.
