Home > Lights & Lighting > LED Outdoor Lighting > LED Tunnel Light > Modular Lightweight IP65 90W LED Tunnel Light

Modular Lightweight IP65 90W LED Tunnel Light

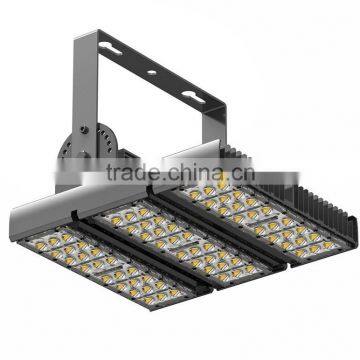

Modular Lightweight IP65 90W LED Tunnel Light photo-1

Modular Lightweight IP65 90W LED Tunnel Light photo-2

US$ 120.00 - 120.00 MOQ: 1 Piece

Key Specifications

Get Latest Price

LED Light Source:

1LA5 or Cree XTE

Input Voltage(V):

AC85-265V

Lamp Power(W):

Contact Supplier Request Quote Chat Now

Shenzhen Peaking Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source 1LA5 or Cree XTE

Input Voltage(V) AC85-265V

Lamp Power(W) 90

Lamp Luminous Flux(lm) 9000

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Pure White

Working Temperature(℃) -40, 50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP65

Certification CE, EMC, FCC, UL

Warranty(Year) 5

Place of Origin Guangdong, China

Brand Name OEM

Model Number SD90

Modular Lightweight IP65 90W LED Tunnel Light

High-quality aluminum profile of 3 modules, stylish, exquisite and lightweight
Easy installation with screws, direction adjustment in 180º range

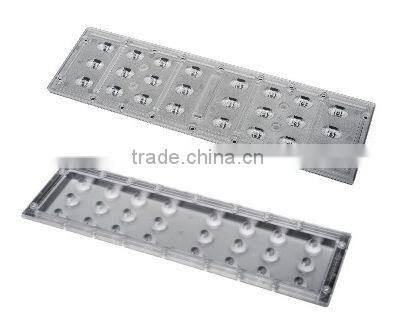

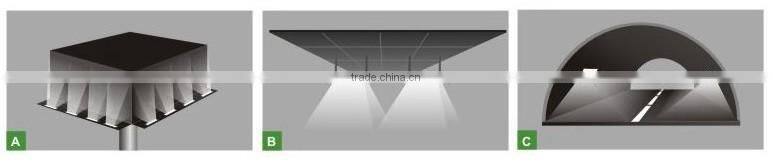

Professional secondary optic design and lens angles for different tunnel lighting applications
Renowned Meanwell driver and Cree LEDs, five year warranty
IP65 protection level

SD90 –Modular Lightweight IP65 90W LED Tunnel Light
Input	90~305Vac / 127~431Vdc, 50Hz / 60Hz, PF>0.95
Wattage	90W
Flux	9,000lm, typical
Optical efficacy	90 ~ 110lm/W
Correlated color temperature (CCT)	3000K/4000K/6000K
Color rendering index (CRI)	70/80
Beam angle	150°x75° (asymmetrical) 60° , 45°, 15°, 25°, 45°, 60°, 90°
Average luminance (60°)	Height 20m: >5.88lx
	Height 15m: >10.46lx
	Height 10m: >23.54lx

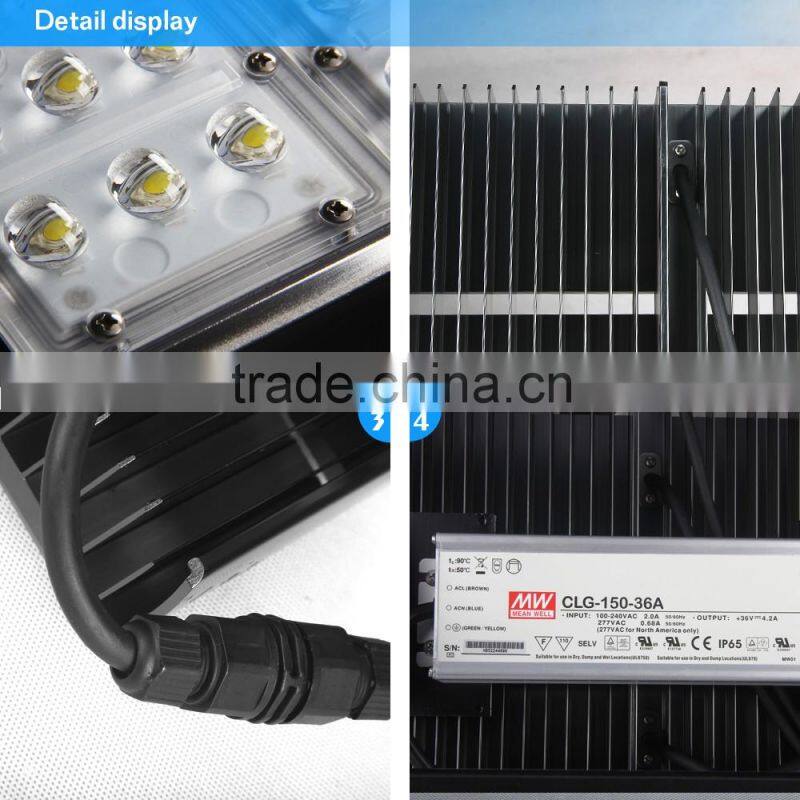

Driver	Meanwell HLG-150H-42A
Safety & EMC	UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent IP65/IP67, J61347-1, J61347-2-13; UL60950-1, TUV EN60950-1 I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25°C/70%RH EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (>=50% load) EN61000-3-3 EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024
Housing	Aluminum 6063 profile, 3 modules, black anodized
Heatsink	Integrated aluminum fins
LED array	1LA5 or Cree XTE, x72pcs
Temperature	-40ºC ~ +50ºC (operation)
Temperature	-25ºC ~ +65ºC (storage)
Humidity	Up to 99% RH
IP rating	IP65
Certifications	CE, RoHS, FCC
Lifespan	>50,000H
warranty	5 years
Installation	Bolting, adjustment in 180º range
Net weight	4kg

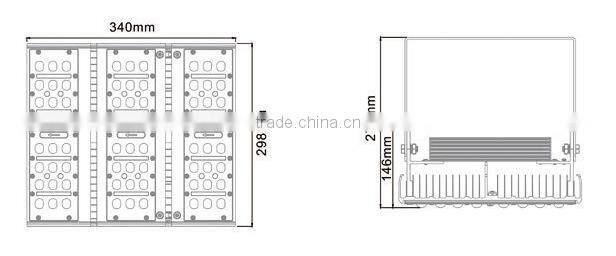

Dimensions	340x298x278mm

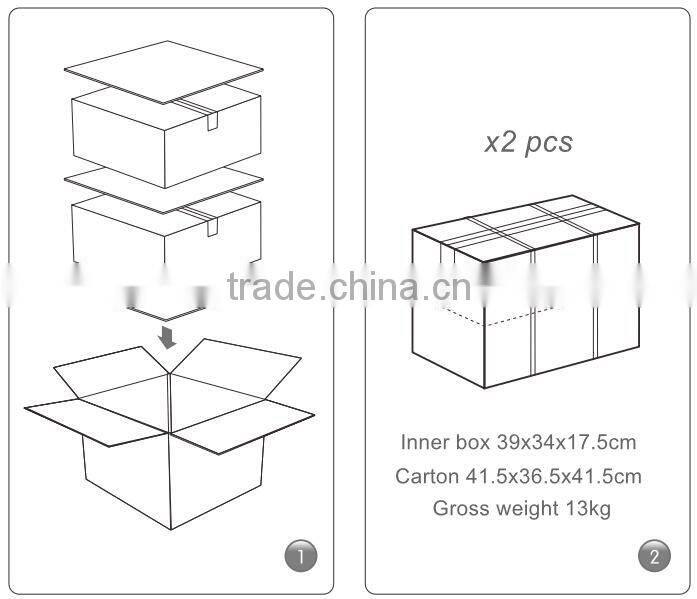

Packaging size/weight	Carton 41.5x36.5x41.5cm, 2pcs/carton, Gross weight 13kg
Price	USD 120.00 / piece
Note: The above data are typical specifications for information only. Detailed and specific parameters of each product are subject to the sales order or contract. Related datasheets and test reports are provided upon request.
