Specifications

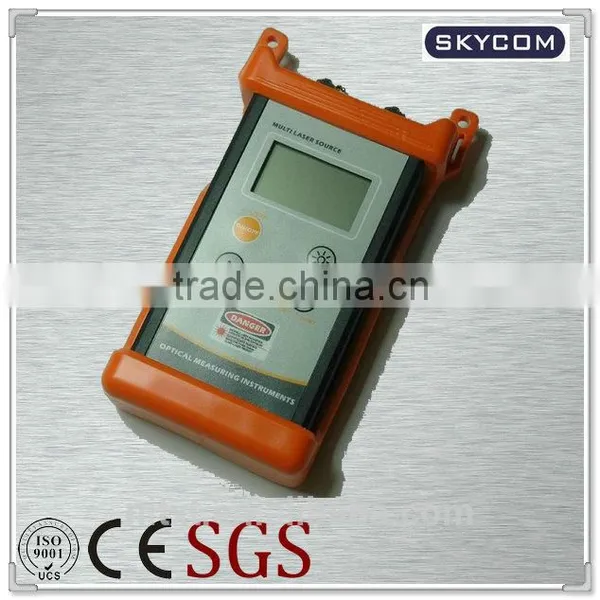

fiber optic multimeterbuilt in OPM and Laser source
Specifications
fiber optic multimeter
built in OPM and Laser source
1) High stabilization;
2) 270, 1000, 2000 Hz Tone
3) LCD display
4) Low battery indicator
5) Battery charge indicator
6) Power output adjustable;
7) Energy save mode: about 10 minutes no operation will cause the device automatic power off (can be cancelled);
8) Full energy can support above 16hours operation;
specification:
Optical power meter | ||||||
Measuring Range |
+10 ~ -70dBm |
+26 ~ -50dBm |
||||
Accuracy |
0.01dB ± 2% |
|||||
Calibrated Wavelengths |
850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm |
|||||
Reference Value Set |
Yes |
|||||
Connecting Adaptor |
FC / PC |
|||||
Auto Power Off |
10minutes auto off without operating |
|||||
Battery Charge |
Yes |
|||||
Laser source | ||||||
Wavelength (nm) |
650nm |
|||||
Output Power |
>1mw |
>10mw |
>15mw |
>20mw |
>20mw |
|
Connector |
FC/PC |
|||||
Operating Conditions |
-10 -- +60 °C, < 95% RH(humidity) |
|||||
Power Supply |
AA battery |
|||||
Size |
140mm(L) * 62mm(W) * 32mm(H) |
|||||
Weight |
174g |
|||||
