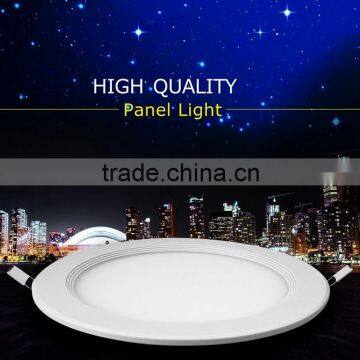

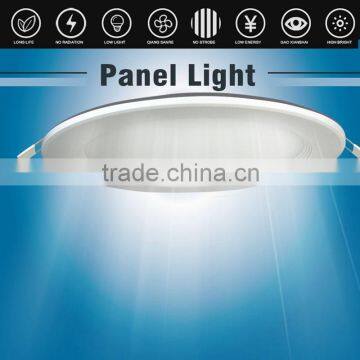

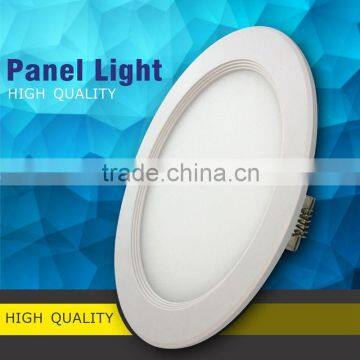

Slim 2.5 ~ 8 inch Round Ceiling LED Panel Lights
The MBA series LED panel lights feature stamped one-piece construction and ultra-slim appearance with thickness 11.5mm, seamlessly embedded into ceiling installation. Low profile, lightweight and compactness enable easy installation, wiring and free of maintenance. Efficacy above 100lm/W and 5-year lifespan create exceptional energy-saving results. Models include 2.5”, 3”, 3.5”, 4”, 5”, 6” and 8” with wattage ranging from 3W to 24W. Unique design enhances productivity, saves costs in manufacture and materials and eventually results in the highest cost-effectiveness of its kind. The MBA series LED panel lights can be widely used for interior decorations and lightings in home, office, shop, hotel and more applications.
Model |
MBA-2.5 |
MBA-3 |
MBA-3.5 |
MBA-4 |
MBA-5 |
MBA-6 |
MBA-8 |
Name |
2.5” LED panel light |
3” LED panel light |
3.5” LED panel light |
4” LED panel light |
5” LED panel light |
6” LED panel light |
8” LED panel light |
Watt |
3W |
5W |
7W |
9W |
12W |
15W |
24W |
Lumen |
200lm |
400lm |
600lm |
800lm |
1100lm |
1500lm |
2400lm |
Size |
Ø102x23.3mm Ø4”x0.92” |
Ø112x23.3mm Ø4.4”x0.92” |
Ø120x23.3mm Ø4.72”x0.92” |
Ø146x23.5mm Ø 5.75”x0.93” |
Ø165x23.5mm Ø6.5”x0.93” |
Ø190x24mm Ø7.48”x0.94” |
Ø235x24mm Ø9.25”x0.94” |
Cutout |
Ø80mm, Ø3.15” |
Ø 90 mm Ø3.54” |
Ø 100 mm Ø3.94” |
Ø 120 mm Ø4.72” |
Ø 150 mm Ø5.9” |
Ø 165 mm Ø6.50” |
Ø 210 mm Ø8.28” |
|

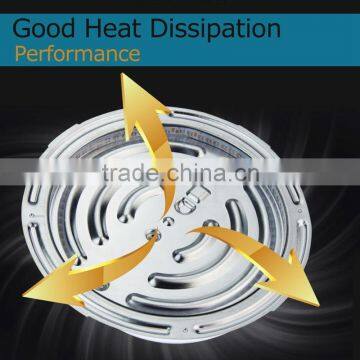

High-purity aluminum housing, integrated structure and heatsink Press-formed 1070 aluminum sheet has purity 99.7% and thermal conductivity 220W/m*K (much better than traditional cast aluminum 80 W/m*K or CNC aluminum 110 W/m*K). Anti-corrosion 0.8mm-thick aluminum functions as housing structure, heatsink and reflector at the same time. Extremely high productivity results in low costs. |
|
Frosted diffuser lens Frosted diffuser lens of high transmission works with quality light guide plate and reflective sheeting, producing even and soft light with high illuminance. |
|
|
White PC panel High-density PC material of the white panel is flame retardant, wear resistant, antioxidative and colorfast. |
| Stainless steel spring fastener The stainless steel spring fasteners create even pressure and are anti-corrosive, easy-to-install and firm. |
|
|
SMT LEDs mounted on thin aluminum PCB of high thermal conductivity Thanks to shorter heat path and lower thermal resistance, the middle-power surface-mounted 2835 LEDs on 0.4mm-thick aluminum PCB have high efficacy and low light degradation, supporting color temperature warm, natural and cool white and color rendering index (CRI) 70/80/90. |
|
External high-efficiency isolated constant-current power driver Non-isolated constant-current power driver has a conversion efficiency >90% and universal inputs (85~265Vac), high power factor (PF>0.95) and high current precision (<3%). Simple and stable topology and quality components maximize the service life of the fixture. Connection via DC plug connector facilitates installation and replacement. |
|
FAQs
Q: In the TDA series LED down lights, how are the high quality and low cost so perfectly realized?
A: They come out of the unique design.
Firstly, the stamping process of the structure is much more productive than traditional manufacturing technique, and saves materials and energy.
Secondly, the simple construction simplifies assembly and wiring, thus minimizing the production cost.
Thirdly, the structure consists of very few number of pieces. The one-piece construction creates structural strength and shortens heat path.
Q: The TDA series LED down light feels somewhat lightsome, so I am a bit concerned about the cooling effectiveness.
A: According to thermal physics, heat dissipation is dependent of and heat radiating area, instead of the weight of the media.
The TDA series LED down light has a press-formed structure that has not only high thermal conductivity but also maximum heat radiating area. Moreover, the M-PCB is directly riveted onto the structure, resulting in the shortest possible heat path and lowest thermal resistance.
Q: What kind of customization/OEM/ODM options can be supported?
A: Peakingtech supports various customization options to faciliate your marketing campgains in your local market, including:
LEDs: such as Cree, Osram, Sumsang, LG, Everlight, Epistar, San'an, with various combinations of CCT and CRI
Driver: dimmability, emergency power supply, different certification requirements
Label and packaging: Your own brand and CI designs can be used on label and packages.
Typical Applications
