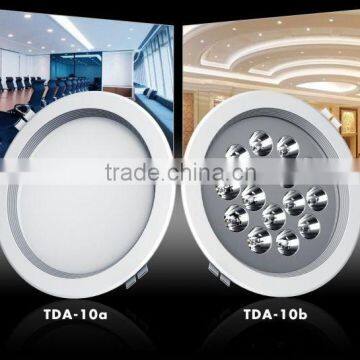

Slim 10 inch 36W Ceiling-mounted LED Spotlighting Downlight
- Stamped one-piece construction and stylish appearance, seamlessly embedded into ceiling installation
- Low profile, lightweight and compactness enable easy installation, wiring, free of maintenance
- Unique secondary optical design for indoor ceiling-mounted spotlighting application, optional lens angles
- Renowned Cree XTE LEDs and high-quality external isolated constant current LED driver

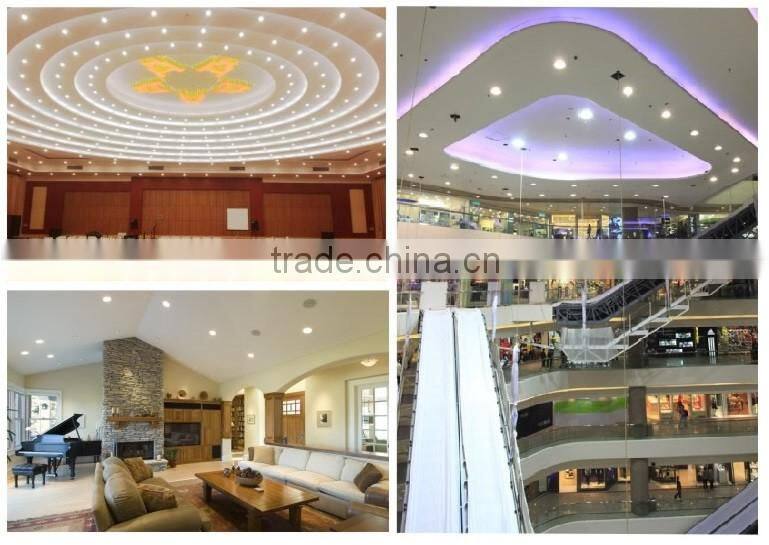

- Applicatioins in interior decorations and lightings in home, office, shop, hotel, etc.
TDA-10 – Slim 10 inch 36W Ceiling-mounted LED Spotlighting Downlight | |
Input |
Universal input 85~265Vac, 50Hz/60Hz, PF>0.95 |
Wattage |
36W |
Flux |
3,500lm, typical |
Optical efficacy |
95 lm/W |
Correlated color temperature (CCT) |
3000K/4000K/6000K |
Color rendering index (CRI) |
70/80 |
Driver |
Constant current LED driver |
Housing |
Press-formed 1070 aluminum housing |
Heatsink |
Integrated housing and heatsink |
LED array |
CREE XTE, x15pcs |
Temperature |
-40ºC ~ +55ºC (operation) |
-25ºC ~ +65ºC (storage) | |
Humidity |
Up to 99% RH |
IP rating |
IP33 |
Certifications |
CE, RoHS, FCC |
Lifespan |
>50,000H |
warranty |
5 years |
Installation |
Ceiling recessed installation with torsion springs |
Net weight |
800kg |
Dimensions |
Ø285x72.4mm |
Cutout |
Ø260mm |
Packaging size/weight |
Packing box 30x30x8cm, 850g |
Price |
USD 26.00 / piece, MOQ20pcs |
|
Note: The above data are typical specifications for information only. Detailed and specific parameters of each product are subject to the sales order or contract. Related datasheets and test reports are provided upon request. | |
|

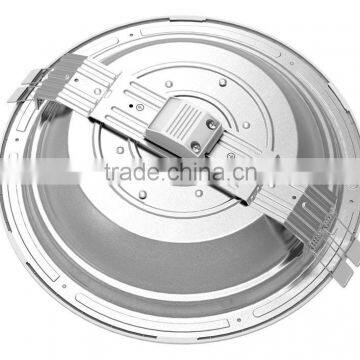

High-purity aluminum housing creates integrated structure, heatsink and reflector Press-formed 1070 aluminum sheet has purity 99.7% and thermal conductivity 220W/m*K (much better than traditional cast aluminum 80 W/m*K or CNC aluminum 110 W/m*K). Anti-corrosion 0.8mm-thick aluminum functions as housing structure, heatsink and reflector at the same time. Extremely high productivity results in low costs. |
|

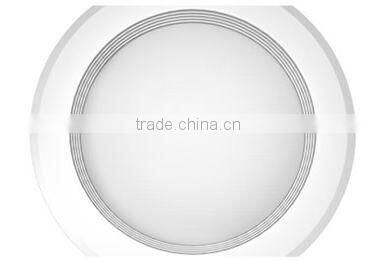

Frosted diffuser lens Frosted diffuser lens, with transmission over 80%, can effectively suppress glare and produce even and bright light. |
|
|
White PC panel High-density PC material of the white panel is flame retardant, wear resistant, antioxidative and colorfast. |
|

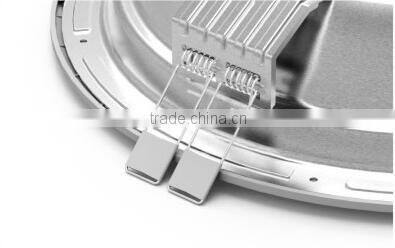

Stainless steel torsion spring The stainless steel torsion spring fasteners create even pressure and are anti-corrosive, easy-to-install and firm. |
|

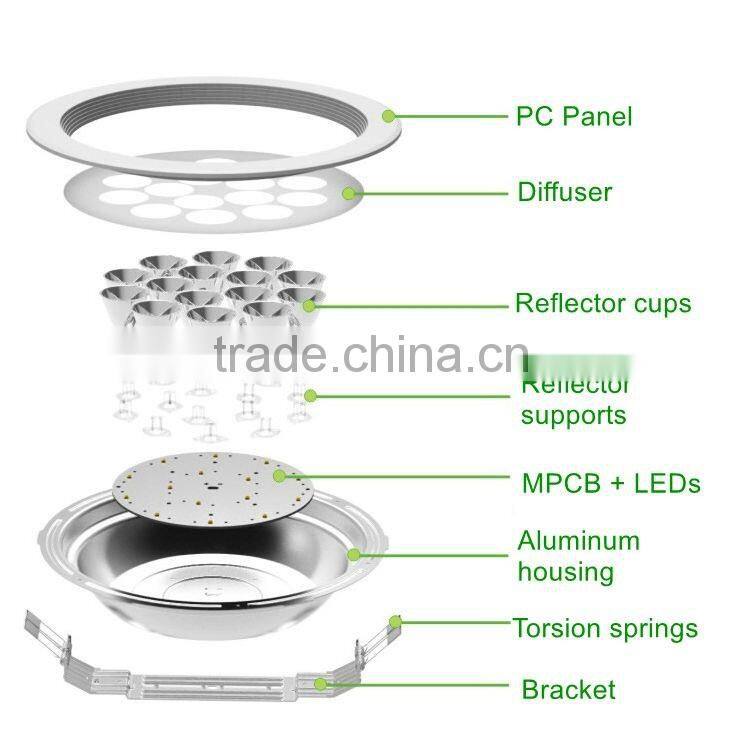

10" 36W LED spotlighting downlight exploded view

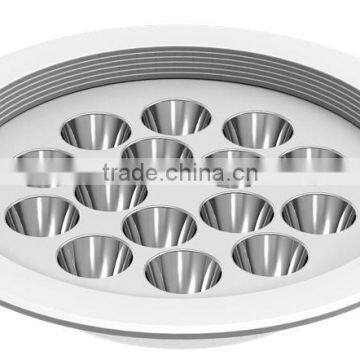

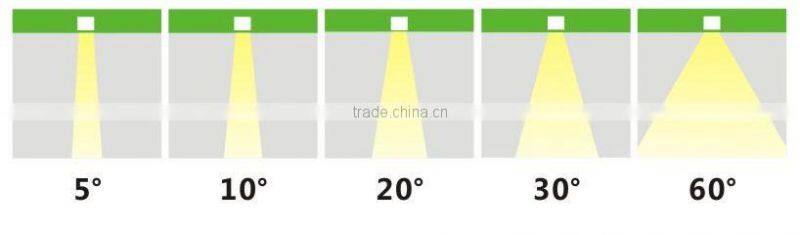

10" 36W spotlighting LED downlight lens angles: 5, 10, 20, 30, 60 degrees

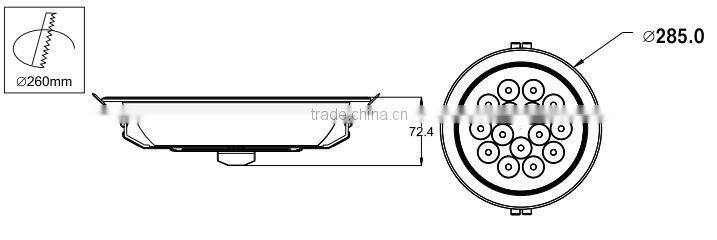

Dimensions
FAQs
Q: In the TDA series LED down lights, how are the high quality and low cost so perfectly realized?
A: They come out of the unique design.
Firstly, the stamping process of the structure is much more productive than traditional manufacturing technique, and saves materials and energy.
Secondly, the simple construction simplifies assembly and wiring, thus minimizing the production cost.
Thirdly, the structure consists of very few number of pieces. The one-piece construction creates structural strength and shortens heat path.
Q: The TDA series LED down light feels somewhat lightsome, so I am a bit concerned about the cooling effectiveness.
A: According to thermal physics, heat dissipation is dependent of and heat radiating area, instead of the weight of the media.
The TDA series LED down light has a press-formed structure that has not only high thermal conductivity but also maximum heat radiating area. Moreover, the M-PCB is directly riveted onto the structure, resulting in the shortest possible heat path and lowest thermal resistance.
Q: What kind of customization/OEM/ODM options can be supported?
A: Peakingtech supports various customization options to faciliate your marketing campgains in your local market, including:
LEDs: such as Cree, Osram, Sumsang, LG, Everlight, Epistar, San'an, with various combinations of CCT and CRI
Driver: dimmability, emergency power supply, different certification requirements
Label and packaging: Your own brand and CI designs can be used on label and packages.
