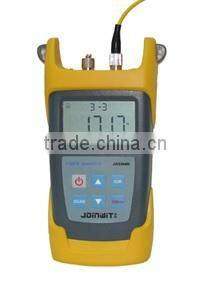

Optical Fiber Ranger ---------JW3304N
JW3304N Optical Fiber Ranger is the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the JW3304N fiber ranger detect fiber faults location more accurate and easy.
Main Features
* Portable, rugged, lightweight; Easy to use.
* More accurate testing results and better repeatability.
* Up to 8 fiber faults can be detected in each measurement.
* Automatic Pulse Width Control design to ensure a convenient operation.
* Easy to identify the faults location.
* Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.
* Dust, water and shock proof, designed for field use
* Long battery life, up to 5000 measurements operation.
Applications
Testing the distance of the fiber and identify the faults location in the fiber link.
Locates reflective and non-reflective breaks in the fiber network.
Inspection of fiber repair and maintenance.
JW3304N Fiber Ranger is ideal to be used in FTTx network installation and maintenance.
Specifications
Model |
JW3304N |
|
Operating Wavelength |
1550nm(1310nm Optional) |
|
Fiber Type |
9/125um SM Fiber |
|
Optical Connector Type |
FC/PC |
|
Detector Type |
InGaAs |
|
Peak Power of laser |
≥60mW |
|
Max. Displaying Distance |
Reflection Event |
60km (≥1dB) |
Non-reflection Event |
20km (≥2.5dB) |
|
Measurement Unit |
m |
|
Reflection Event Dead Zone |
15m |
|
Distance Accuracy(Reflection Event) |
±(2m+2*10(-4)*Distance) |
|
Wavelength of VFL Option |
650nm |
|
Output Power of VFL Option |
>=1mW |
|
Power Supply |
Alkaline Battery (3pcs AA 4.5V Batteries) |
|
Battery Operating Time |
≥5000 measurements |
|
Working Temperature |
-5~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Humidity |
0~85%(Non-condensation) |
|
Dimensions |
190*100*50mm |
|
Weight(g) |
450 |
|
Standard Packages
MODEL |
INCLUDES |
JW3304N |
JW3304N Fiber Ranager, 3pcs 1.5V batteries, User Manual, Cotton swabs and Soft carrying case. |
