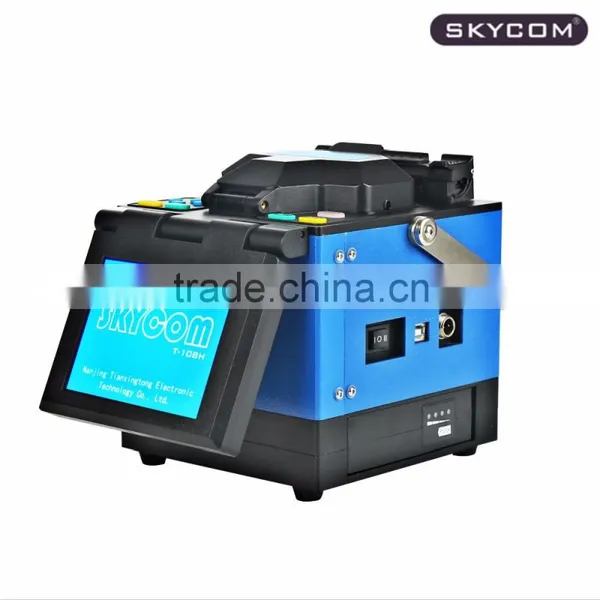

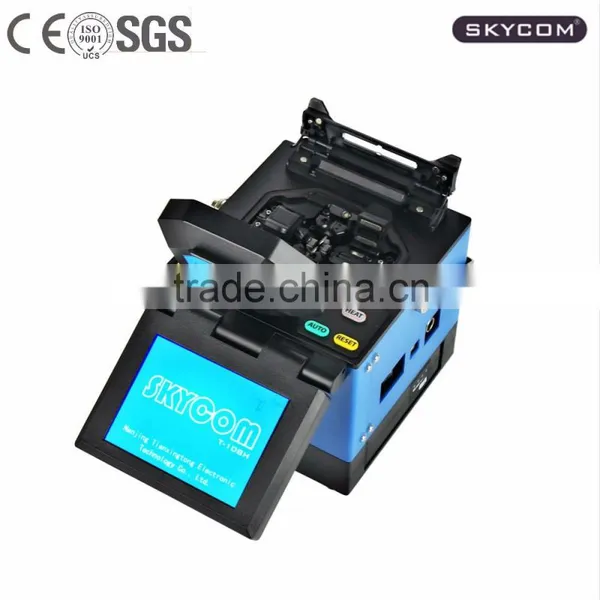

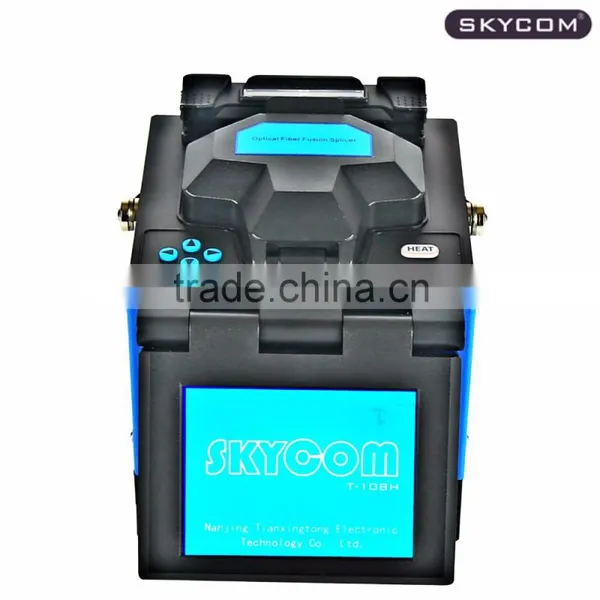

Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself. Skycom T-108H is multipurpose fiber optic fusion splicer which is applicable for single fiber and rubber-insulated cable.
MainFeatures:
♦ 5 inches high Resolution colorful LCD display
♦ Average splice time: 10 seconds
♦ Average tube-heat time: 30 seconds
♦ Lithium battery: up to 180 times of continuous splice and heat

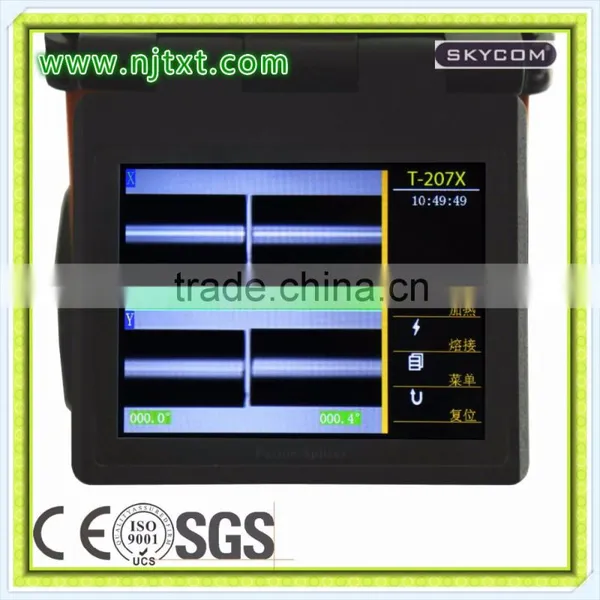

♦ Simultaneous X and Y views with 200 times magnification
♦ New developed technology providing wind and dust resistance
♦ Splicing mode: Auto & Manual
♦ USB Port
♦ Storing 6,000 groups of splice results

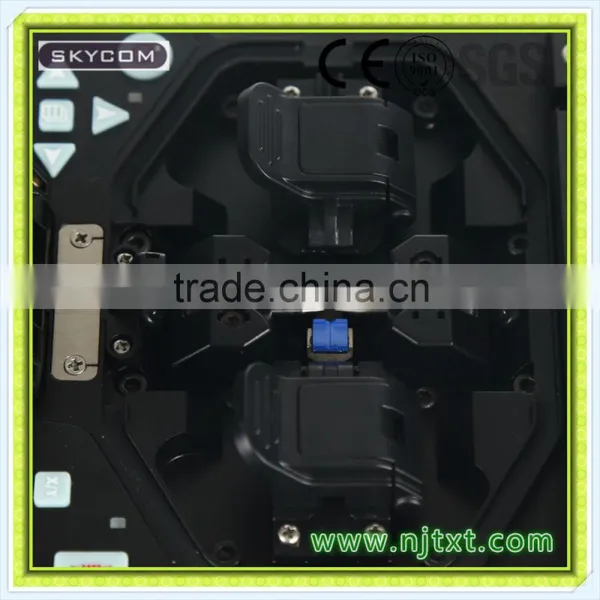

♦ Multipurpose optical fiber fixture (Such as: Rubber-insulated wire, fiber optic patch cord, bare fiber)
Specifications: |
|
| Applicable Fibers | SM, MM, NZ-DS, EDF , Pigtail, Rubber-insulated series wire Series |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return Loss | ≥60dB |
| Tension Test | 2.0N(200gf)(Standard) |
| Typical splicing time | 10 seconds |
| Typical heating time | 30 seconds |
| Splicing Program | 50 groups |
| Protection Sleeve Length | 20mm, 40mm, 60mm |
| Operating Language | Chinese, English |
| Operating Conditions | -10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
| Power Supply | AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) / 12V 8AH lithium battery |
| Monitor | 5 inches high Resolution colorful LCD display |
| Fiber image magnification | Simultaneous X and Y views with 200 times magnification |
| Storage of splice result | 6,000 groups of latest splice results |
| Splicing Model | Auto & Manual |
| Optical Fiber Fixture | Bare Fiber & Rubber-insulated Wire |
| Dimensions | 155(W)*165(D)*150(H) |
| Weight | 2.5kg |
ARE YOU THE MANUFACTURER OR TRADING COMPANY?
We are the manufacturer and have our own workshops which more than 2000 m2.
How's the quality?
The quality of our fusion splicer is superior with good stability. We are professional manufacturer and R&D fusion splicer by ourselves. We created world first 3 in 1 multi-purpose fixture which makes our machine applicable for bare fiber, Rubber-insulated cable and fiber optic patch cord, each machine is high end materials and strict 3-time Quality Tests.
How long is the warranty?
We guarantee all our electrical and mechanical parts for one year from the delivery date the machine running smooth in customer's place.
How's your service?
We are responsible for the whole saling process of our products, and whenever you have questions during use, just call us, we are glad to help you timely.
How's the Packing:

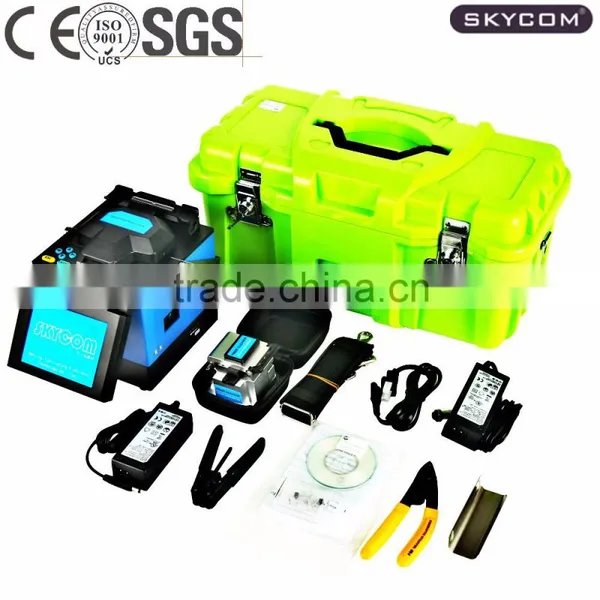

If no special request, we will use standard carton packing with easy to carry case. We will use safety foam in the carrying case to protect products, in order to avoid any damage in delivery.
How's the shippment?
Shipment by DHL, FedEx, TNT directly to your hands. EMS. 3-5days for small order, kindly negotiation for bulk order.
How's the payment term?
Payment accept T/T, Western Union, etc.
