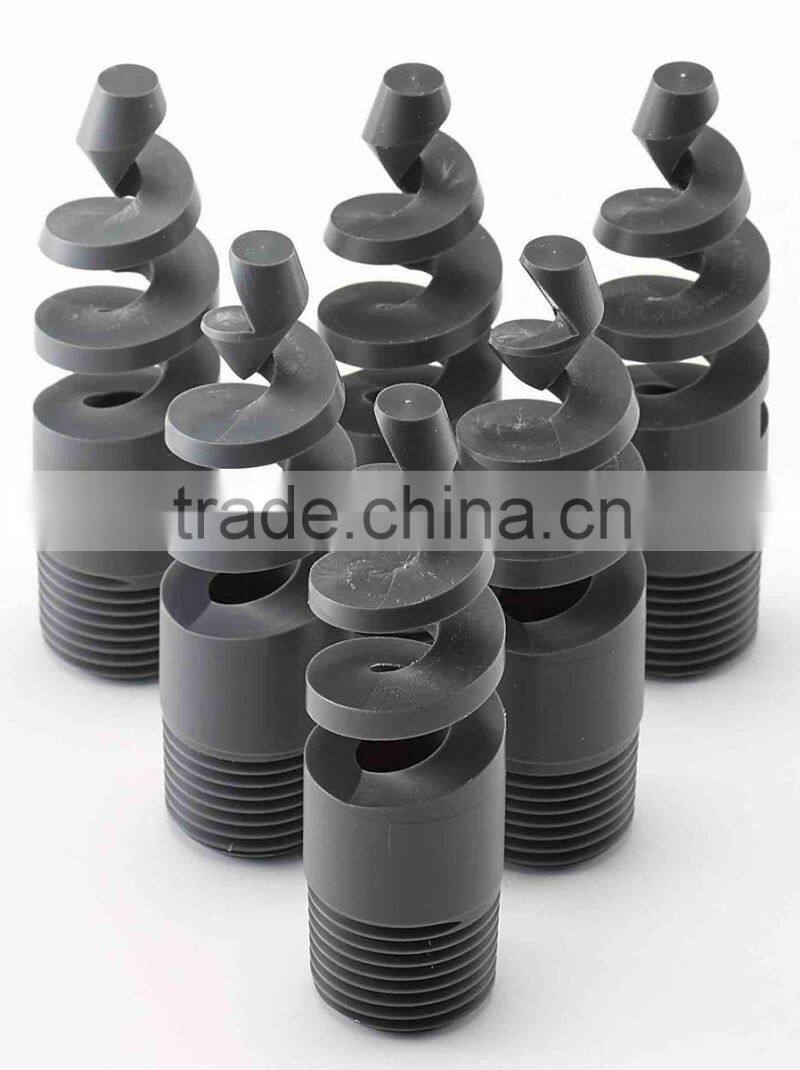

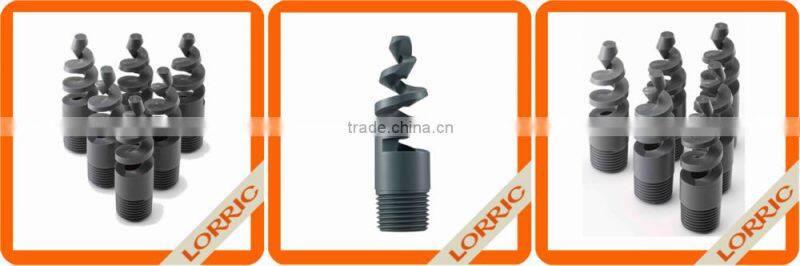

Gas Cleaning Plastic Spiral Nozzle

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Keelung
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Taiwan, China		Brand Name	LORRIC
Model Number	SPP		Condition	New

Product Description

Our Advantages

Paranoid about performance for 24 years
United Benefit Corporation (UBC), was established in 1991.
UBC is the first company in Taiwan that both designs and manufactures industrial products for the most demanding industries, such as: chemical processing, water treatment, electroplating, semiconductor, pollution control, Printed Circuit Board, and Coating.
Best after service
100% Made in Taiwan

/watch?v=SGFykDNpDhs&feature=youtu.be

General Features

General Features
Unibody design with no internal parts
Clog-resistant performance
Standard thread is BSPT Male
Wide range of flowrates and spray angles
Fine atomization

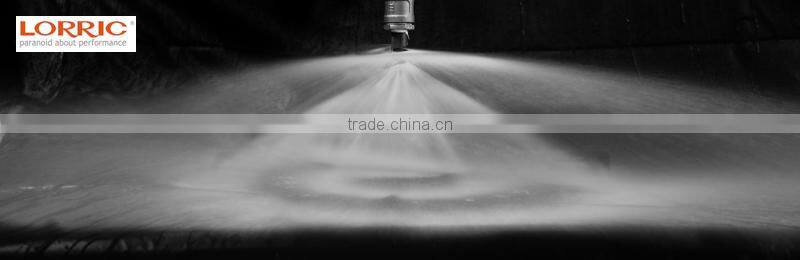

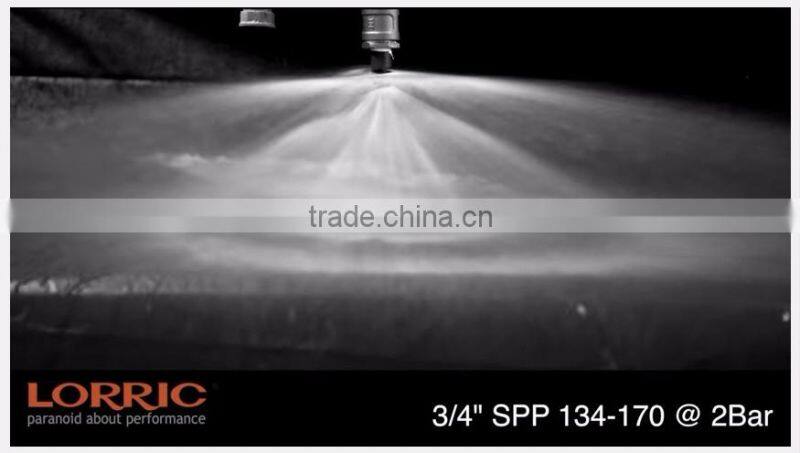

Spray patterns: Full Cone.
Spray angles: 120° to 170°
Recommended working pressure:2kg/cm²
Flowrate tolerance:± 5%
Angle tolerance:± 5°

Apply For
Gas cleaning \| Fire Control \| Cooling

Material Options

• PVC
• Teflon

Material Guarantee

Material Guarantees
Metal	Plastic	High Quality
We take high quality smithing metal to produce solid and durable nozzles by detail turning.	We promise never using recycled materials.	All material is purchased from world top providers.

Installation

With nutted body shape design, it's easy to be installed and fixed by spinner sprongly.

Step 1. Drill a thread hole in proper size for fitting nozzle's outside diameter.

Step 2. Screw nozzle by spinner gently.

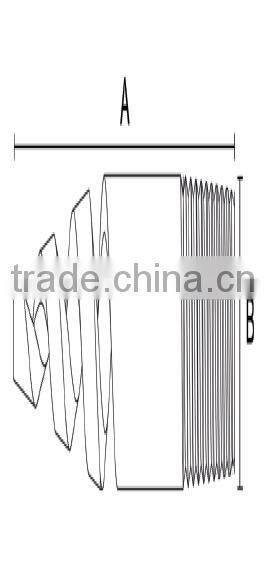

Size

Thread		Dimension (mm)
Thread		A	B
	1/4" BSPT Male	52	16
	3/8" BSPT Male	61	20
	3/4" BSPT Male	90	28
	1/2" BSPT Male	77	22

Model & Proformance

Flow Code	1/4"	3/8"	1/2"	3/4"	Flow Rang (L/min) to Pressure (kg/cm^2)						Angle	Min. Free Passage (mm)	Eq. Orifice (mm)
Flow Code	1/4"	3/8"	1/2"	3/4"	0.5	0.7	1.0	2.0	3.0	5.0	Angle	Min. Free Passage (mm)	Eq. Orifice (mm)
4.5	V				2.3	2.7	3.2	4.5	5.5	7.1	120	-	2.38
12.8	V				6.4	7.6	9.1	12.8	15.7	20.2	120	-	3.97
52.7		V			26.4	31.2	37.3	52.7	64.5	83.3	170	-	7.94
105			V		53	62	74	105	129	166	170	4.75	11.7
134				V	67	79	95	134	164	212	170	4.75	12.7

• The NPT thread and the BSPT female thread are manufactured to order.

• Please contact us to check stock availability before placing your order.

About LORRIC

"Kingspray" was our trademark for serving Greater China market since we established in 1991. Until 2006, the year for our brand evolution, we started brand-new logo LORRIC ® as our trade mark for global marketing. Absolutely, we already own the trademark right in many countries.

However, the Infringement of "Kingspray" trade mark was getting serious and caused clients' confusing with our company and products. For improving this issue, we are here to inform our valued clients that all of our products will be shipped with our new trademark LORRIC ®.

Our Belief

Keep challenging producing the world best industrial nozzles!

Lorric aka United Benefit Corp. was established in 1991. We take "Paranoid about performance" as our belief and keep exploring the extreme performance of industrial nozzles with our clients. For promising the best quality, from design, material selection, manufacture, to sales, all product development are done by ourselves, and branded as 2 brands, Lorric and Kingspray in global market.

Our Company

Born in New Taipei City and Kaohsiung, Taiwan.

FAQ

1. Do you accept OEM or ODM ?

No, we don't do OEM and ODM. But we are more than willing to manufacture co-branded products for you. Please ask us for MOQ info for your inquiry.

2. Can the products be customized ?

Yes, customized products are made to order. Please ask us for MOQ info for your inquiry.

3. How to get sample ?

Yes, we can provide free samples and ship it by using your express account.

4. Estimated Shipping Date ?

Since we have a variety of nozzle specifications. Not every spec has available stocks. Please feel free to ask us about the stock availability of your inquiry.

For those nozzles with available stocks, after we receive your order and payment, the goods will ship within 3 working days. For flow meters, it will be within 5 days.

5. How to order ?

Normally you can order our products by using Alibaba platform or contacting LORRIC representatives by Email. After we receive your messages, we will help you to choose the right specifications and other inquiries. then we will send an proforma invoice to you via mail, it includes details of your order and our bank information. After we received your payment by TT or Paypal, we will ship your goods and we will send the invoice, packing list, and the express tracking number via mail.

6. What is our term of trade ?

Usually we use EX WORKS. If you need other term of trade, please let us know.

7. How to pay ?

We accept the payment via T/T (bank transfer) and Paypal. Please inquire us about the details in advance.

8. How are you going to deliver our goods ?

We can ship your goods either by air express (Fedex, DHL, UPS, TNT etc) or by sea. Please let us know your choice.

9. What are the Customs Tariff Numbers of nozzle and flow meter?

The nozzle Customs Tariff Number is 8424.90.3900

The flow meter Customs Tariff Number is 9026.10.000
