Home > Electrical & Electronics > Power Supply & Distribution > UPS > 90kva 3phase Modular Ups Power Supply With 15kw Intelligent Power Module

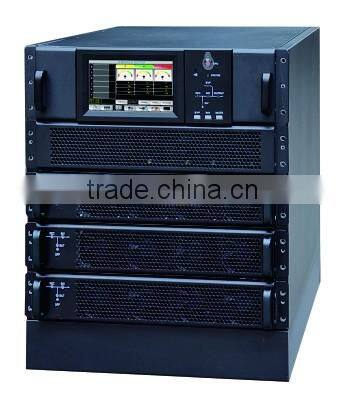

90kva 3phase Modular Ups Power Supply With 15kw Intelligent Power Module
US$ 15,000 - 40,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
INVT & OEM
Model Number:
RM090/15X
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian Shekou Huangpu HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20kva 20kw Modular Ups Power Supply With 10kw Intelligent Power ModuleUS$ 4,000 - 10,000MOQ: 1 Unit -
40kva 40kw 3phase in 3phase Out High Frequency Modular Ups Power Supply With 10kw Intelligent Power ModuleUS$ 12,000 - 25,000MOQ: 1 Unit
-
60kva 3phase High Frequency Modular Ups Power Supply With 10kw Intelligent Power ModuleUS$ 15,000 - 25,000MOQ: 1 Unit
-
120kva 108kw Modular Ups Power Supply With Intelligent 20kva Power ModuleUS$ 16,000 - 25,000MOQ: 1 Unit
-
3phase in 3phase Out 250kva 250kw High Frequency Modular Ups Power Supply Switching Power Module 25kva 25kwUS$ 19,999 - 30,000MOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
INVT & OEM
Model Number
RM090/15X
Phase
Three Phase
Protection
Short Circuit
Weight
70kg
Output Voltage
380/400V/415V
Type
On-line
Application
Networking
90kva 3phase modular ups power supply with 15kw intelligent power module
Product Specifications:
| Capacity | 10kVA-40kVA | 15KVA-90KVA |
| 10kW-40kW | 15KW-90KW | |
| Main Input | ||
| Input voltage | 380V/400V/415V(line to line) 220V/230V /240V(line to neutral) |
|
| Input frequency | 50/60Hz | |
| Power factor | >0.99 | |
| Input voltage window | up 276Vac; down -40% (-20%,-30%, -40% selectable) -20%~-40% rated power derating from 100%~80% | |
| Frequency window | 40-70Hz | |
| Input current THDi* | <4% | |
| Battery | ||
| Battery voltage | ±240VDC | |
| Charger power | 20%*Active Power | |
| Charger voltage precision | 1% | |
| Bypass | ||
| Bypass voltage | 380V/400V/415V(line to line) 220V/230V/240V(line to neutral) |
|
| Bypass voltage window | -20%-+15% default; -40%-+25% selectable | |
| Bypass overload capabiltiy | 125%, long time operation | 110%, long time operation |
| 125%< load <130%, last for more than 10 mins | 110%< load <130%, last for more than 5 mins | |
| 130%<load<150%,last for more than 1 min | 130%<load<150%,last for more than 1 min | |
| load>150%, last for more than 300ms | load>150%, last for more than 300ms | |
| Output | ||
| Output voltage | 380V/400V/415V(line to line) 220V/230V/240V(line to neutral) |
|
| Voltage precision | 1.5% | |
| Voltage THD(Total Harmonic Distortion)* | THD<1%(linear load),THD<5.5%(nonlinear load) | |
| Power factor | 1 | |
| Phase tolerance | 120°±0.5° (balance and unalance load) | |
| Crest factor | 3:1 | |
| Overload capabiltiy | <102%, long time | |
| 110%, transfer to bypass after 60minutes | ||
| 125%, transfer to bypass after 10 minutes | ||
| 150%, transfer to bypass after 1 mintute | ||
| >150%, transfer to bypass after 200ms | ||
| System | ||
| System efficiency* | Normal mode: 95%max | |
| ECO mode: 99% | ||
| Battery mode efficiency* | 94.5% | |
| Display | 7" touched colorful LCD+LED | |
| Language | Simplied Chinese, Tranditional Chinese, English, Turkish,Korean, Russian, Polish, Portuguese | |
| IP class | IP20 | |
| Interface (Communication Ports ) | RS232,RS485,Dry contactor,SNMP card(optional),EPO | |
| Installation/Connection | Back or bottom cable entry | |
| Operation temperature | 0-40℃ | |
| Storage temperature | -25℃~70℃ | |
| Relative humidity | 0-95% (non-comdensing) | |
| Noise(dB)(1m away from front panel) | 56dB(one module) | |
| Dimension(W*D*H)mm** Net Weight(kg) | 6-module cabinet: RM060/10X 485*751*1033 70 | 6-module cabinet: RM090/15X 485*751*1033 70 |
| 4-module cabinet: RM040/10X 485*697*575(11U) 51 | ||
| 2-module cabinet: RM020/10X 485*697*398(7U) 42 | ||
| Power Module: PM10X 436*590*85(2U) 15.3 | Power Moudle: PM15X 436*590*85(2U) 15.5 | |

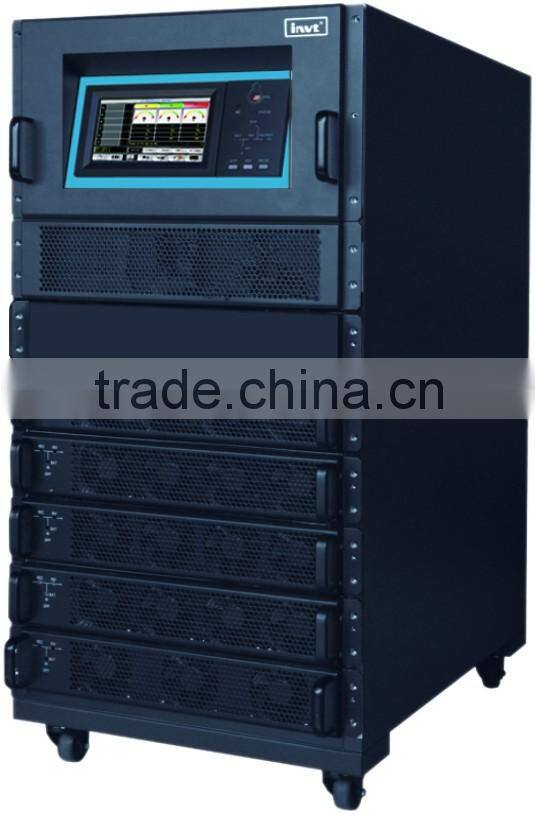

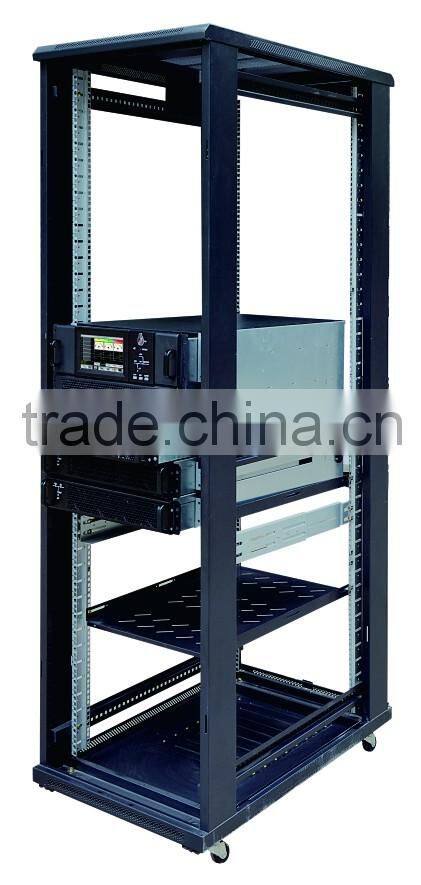

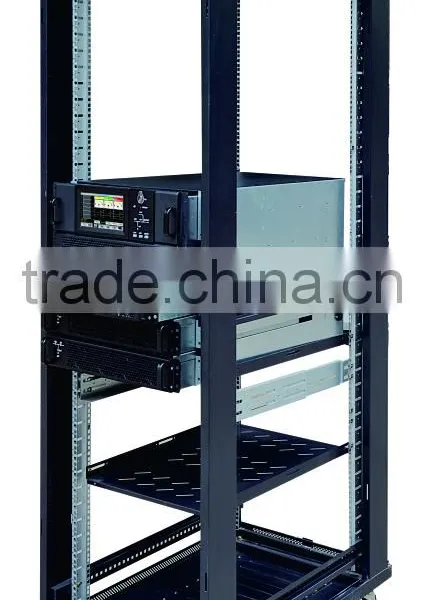

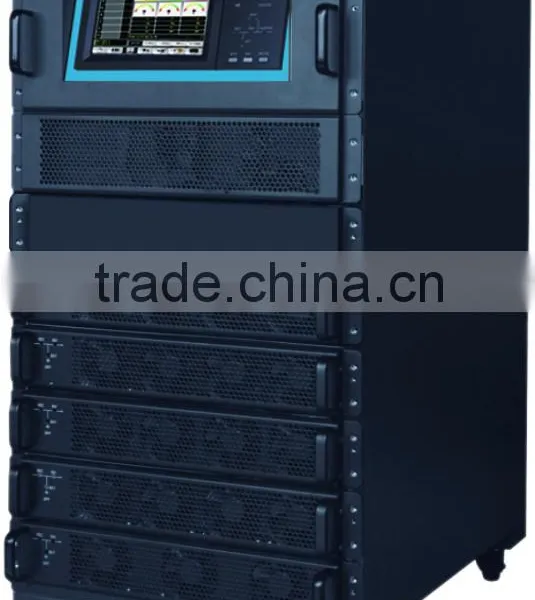

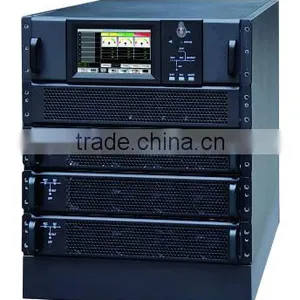

Product Images:

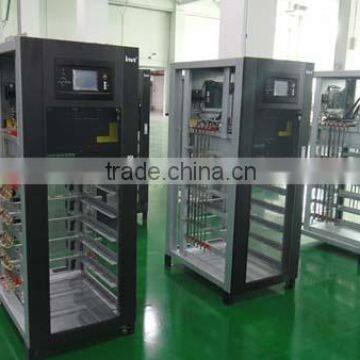

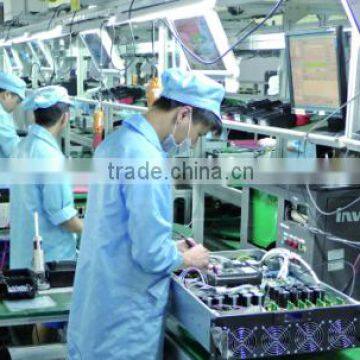

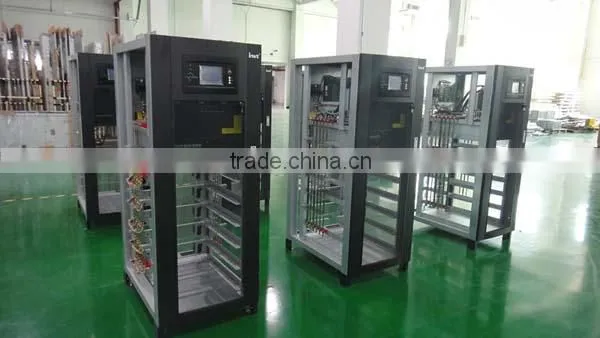

Our Factory:
Our Exhibitions:
Product Certifications:
Shipping:
