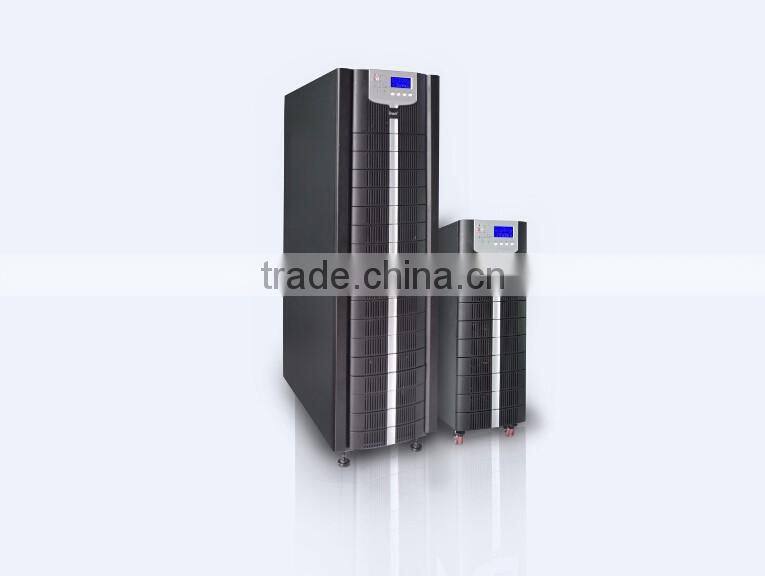

3phase in 3phase Out 30kva Internal Battery Ups N+1 Redundancy Type
US$ 1,000 - 2,500
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
INVT & OEM
Model Number:
HT33030XS
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian Shekou Huangpu HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3phase in 3phase Out 20kva Long Back Ups Power SupplyUS$ 1,000 - 2,500MOQ: 1 Unit -
20kva Stand Alone Online Ups Power Parallel Model N+1 RedundancyUS$ 1,000 - 2,500MOQ: 1 Unit
-
15kva High Power Factor Long Back up Ups Power SupplyUS$ 1,000 - 2,500MOQ: 1 Unit
-
3phase in 3phase Out 15kva Internal Battery Ups Tower Online Ups Power SupplyUS$ 1,000 - 2,500MOQ: 1 Unit
-
3phase 10kva External Battery Ups Tower Online Ups Power Supply Long Back up Time Ups PowerUS$ 1,000 - 2,500MOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
INVT & OEM
Model Number
HT33030XS
Phase
Three Phase
Protection
Short Circuit
Weight
89kg
Output Voltage
380/400V/415V
Type
On-line
Application
Networking

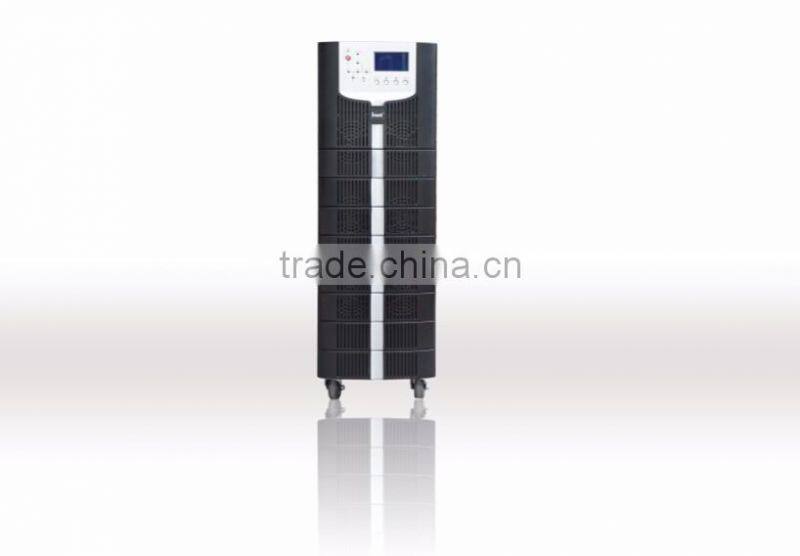

3phase in 3phase out 30kva internal battery ups N+1 redundancy type
Product Features:
Wide input voltage and frequency range compatible with
different utility
High input PF>0.99
Input Current THDi<3%
Full DSP Control of high stability and reliability
Modular design, hot swappable power module easy for power
expansion and maintenance
Intelligent battery management, greatly extend the battery life
Battery cold start, power on from battery without utility
Friendly Operation Interface, touch LCD Screen for 60 KV above
Product Specifications:
| Mode | HT33030XL | HT33030XS | HT33040XL | HT33040XS |
| Main Input | ||||
| Grid System | 3 Phases + Neutral + Ground | |||
| Rated Input Voltage | 380/400/415VAC (Line-Line) | |||
| Rated Frequency | 50/60Hz | |||
| Input Voltage Range | 304~478Vac (Line-Line),full load; 228V~304Vac (Line-Line),load decreases linearly according to the min phase voltage |
|||
| Input Frequency Range | 40Hz~70Hz | |||
| Input Power Factor |
>0.99 |
|||
| Input Current THDi | <3% (full Linear Load) | |||
| Bypass Input | ||||
| Rated Bypass Voltage | 380/400/415VAC (Line-Line) | |||
| Rated Frequency | 50/60Hz | |||
| Bypass Voltage Range | Selectable, default -20%~+15%; Upper limit: +10%, +15%, +20%, +25%; Lower limit: -10%, -15%, -20%, -30%, -40% |
|||
| Bypass Frequency Range | Selectable, ±1Hz, ±3Hz, ±5Hz | |||
| Bypass Overload | 125% Long term operation; 125%~130% for 10min; 130%~150% for 1min; |
|||
| Output | ||||
| Rated Inverter Voltage | 380/400/415VAC (Line-Line) | |||
| Rated Frequency | 50/60Hz | |||
| Output Power Factor | 0.9 | |||
| Voltage precision | ±1.5%(0-100% linear load) | |||
| Transient Response | <5% for step load (20% - 80% -20%) | |||
| Transient recovery | < 30ms for step load (20% - 100% -20%) | |||
| Output Voltage THDu | <1% linear load; <6 (non-linear load) according to IEC/EN62040-3 |
|||
| Inverter Overload | <110%, 60min; 110%~125%,10min; 125%~150%,1min; |
|||
| Frequency Regulation | 50/60Hz±0.1% | |||
| Synchronized Range | Settable, ±0.5Hz ~ ±5Hz, default ±3Hz | |||
| Synchronized Slew Rate | Settable, 0.5Hz/S ~ 3Hz/s, default 0.5Hz/s | |||
| Battery And Charger | ||||
| Battery Rate Voltage | ±240VDC | |||
| Charger Voltage precision | 1% | |||
| Charger Power | max=20% System Power | |||
| Efficiency | ||||
| Normal Operation | >95% | >96% | ||
| Battery Operation | >95% | >96% | ||
| System | ||||
| Display | LED + LCD | |||
| Interface | Standard: RS232, RS485 Option: SNMP, Dry Contact, Parallel kit, Battery cold start |
|||
| Environmental | ||||
| Operation Temperature | 0 ~ 40 ℃ | |||
| Storage Temperature | -40 ~ 70 ℃ | |||
| Relative Humidity | 0 ~ 95% (Non condensing) | |||
| Noise (1 meter) | 65dB @ 100% load, 62dB @ 45% load | |||
| Physical data | ||||
| Dimension (W*D*H,mm) |
250*680*770 | 350*738*1335 | 250*836*770 | 500*840*1400 |
| Weigh(Kg) | 52 | 89 (without battery) |
61 | 140 |

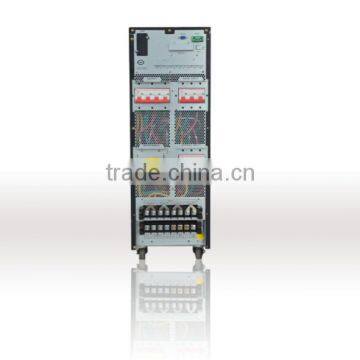

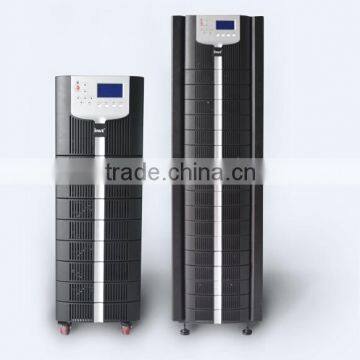

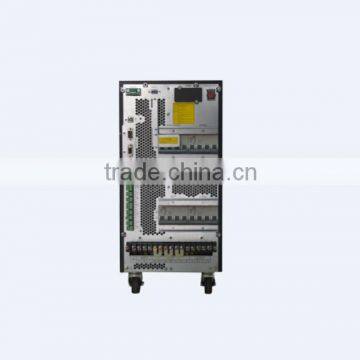

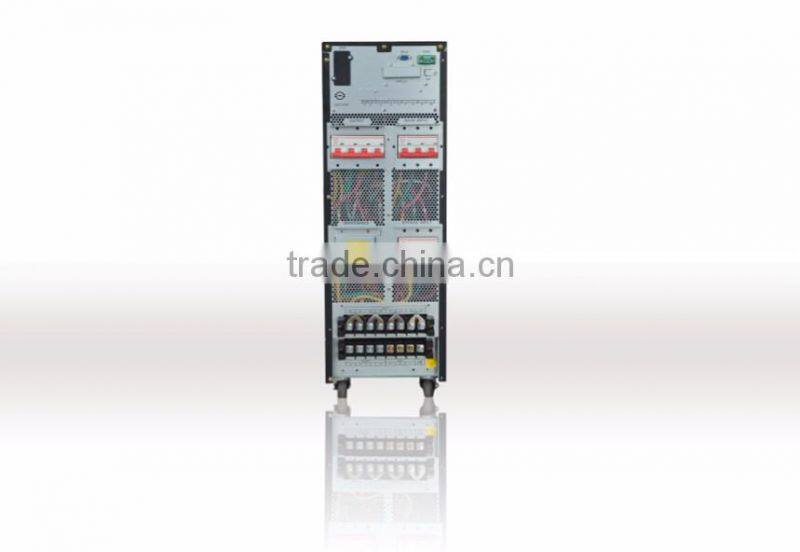

Product Images:
Our Factory:
Our Exhibitions:
Product Certifications:
Shipping:
FAQ:
Product Quality: We are a public company(stock code: 002334) and owned 800-900 engineers for the control of product quality.
Delivery Time: Usually 15-20days, it depends to your specific order information.
Package: We have professional wooden package for large machine.
Quotation: Please leave your message,and I will send you a formal quotation via email.
