Home > Electrical & Electronics > Power Supply & Distribution > UPS > 3kva 3000va 220v 230v 240v Online Ups Power Supply for Network Application Short Circuit Protection
3kva 3000va 220v 230v 240v Online Ups Power Supply for Network Application Short Circuit Protection
US$ 260 - 300
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
INVT & OEM
Model Number:
HT1103S
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian Shekou Huangpu HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2kva 2000va Online Tower Ups Power Internal Battery Model Power Plus BatteryUS$ 150 - 250MOQ: 1 Unit -
Single Phase 2kva 2000va 220v 230v 240v Standby Online Ups PowerUS$ 200 - 250MOQ: 1 Unit
-
Single Phase 1kva 1000va 220v 230v 240v Ups Power External Battery Ups Power SupplyUS$ 50 - 150MOQ: 1 Unit
-
Single Phase 1kva 1000va 220v 230v 240v Online Ups Power SupplyUS$ 50 - 150MOQ: 1 Unit
-
40kva 3phase in 3phase Out Online Ups Power With Isolation TransformerUS$ 4,000 - 5,000MOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
INVT & OEM
Model Number
HT1103S
Phase
Single Phase
Protection
Short Circuit
Weight
24.5kg
Output Voltage
220/230/240VAC
Type
On-line
Application
Networking

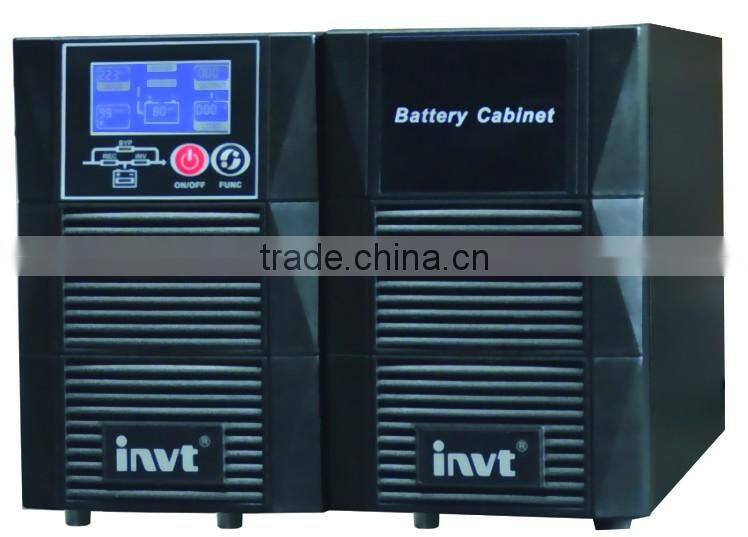

3kva 3000va 220v 230v 240v online ups power supply for network application short circuit protection
Product Specifications:
| HT1101S | HT1101L | HT1102S | HT1102L | HT1103S | HT1103L | |
| INPUT | ||||||
| Cold Start | YES, default frequency=50Hz or settable | |||||
| Acceptable Input Voltage | 110VAC~288VAC | |||||
| 100% load@>176VAC | ||||||
| 80% load@>154VAC | ||||||
| 70% load@>132VAC | ||||||
| 50% load@>110VAC | ||||||
| Phase | Single phase in,single phase out | |||||
| Transfer Voltage Range | (200VAC/208VAC/220VAC/230VAC/240VAC) | |||||
| -Line low transfer | 110VAC | |||||
| -Line low recovery | 121VAC | |||||
| -Line high transfer | 288VAC | |||||
| -Line high recovery | 281VAC | |||||
| Input Current | ||||||
| -Rating(nominal input voltage) | 4.8A | 9.6A | 14.4A | |||
| Input Power Factor | ≥0.97 | |||||
| Input Frequency Range | 40~70Hz | |||||
| OUTPUT | ||||||
| Frequency adaptable | Settable | |||||
| Power | ||||||
| -Power(kVA) max | 1 | 2 | 3 | |||
| -Power(kW) max | 0.9(0.8 for 200VAC/208VAC) | 1.8(1.6 for 200VAC/208VAC) | 2.7(2.4 for 200VAC/208VAC) | |||
| Output Voltage | ||||||
| -Waveform(Bat. Mode) | Pure Sine Wave | |||||
| -Nominal voltage | 200/208/220/230/240VAC | |||||
| -Voltage regulation | ± 1 % | |||||
| -Transient response | ≤5% (0% - 100% -0%) | |||||
| -Transient recovery | ≤30ms (0% - 100% -0%) | |||||
| -Voltage distortion | ≤2% THD, linear load | |||||
| ≤ 5.5% THD, non-linear load | ≤ 5% THD, non-linear load | |||||
| Output Frequency | ||||||
| -Synchronization range | ±5Hz default | |||||
| -Battery mode | (50±0.1) Hz default | |||||
| Transfer Time | ||||||
| -Line mode to battery mode | 0 | |||||
| -Inverter to bypass | 2ms | |||||
| Efficiency | ||||||
| -Line mode with battery full charged | 86%@100% load, 87%@50% load | 91%@100% load, 88%@50% load | 88%@100% load, 90%@50% load | |||
| -ECO mode | 94.0% | 97.0% | 97.0% | |||
| -Battery mode | 83%@100% load, 84%@50% load | 87%@100% load, 88%@50% load | 87%@100% load, 89%@50% load | |||
| Noise(1m away) | <43dB@<60%load,<47dB@>60%load | <45dB@<60%load,<50dB@>60%load | <45dB@<60%load,<50dB@>60%load | |||
| Overload Capability(Inverter) | 105%~130%: Transfer to bypass after 1 mins. | |||||
| 150%: Transfer to bypass after 30s | ||||||
| Overload Capability(Battery Mode) | 105%~130%:shutdown after 10s | |||||
| 150%:shutdown after 5s | ||||||
| Overload Capability (Bypass Mode) | <130%: Long time | |||||
| >130%&<150%:Shutdown after 10min | ||||||
| >150%&<180%:Shutdown after 5 seconds | ||||||
| Crest Ratio | 3:1 | |||||
| BATTERY | ||||||
| Rating/Type | 12VDC/7Ah | Depend on the capacity of external batteries | 12VDC/7Ah | Depend on the capacity of external batteries | 12VDC/7Ah | Depend on the capacity of external batteries |
| Quantity | 3 | 6 | 8 | |||
| DC Voltage | 36VDC | 72VDC | 96VDC | |||
| Back-up Time | 6mins @80% load | Depend on the capacity of external batteries | 6mins @80% load | Depend on the capacity of external batteries | 5.5mins @80% load | Depend on the capacity of external batteries |
| Battery-Low Voltage | 33VAC~35VDC depending on load | 66VDC~70VDC depending on load | 88VDC~94VDC depending on load | |||
| Charger | ||||||
| -Charging voltage | float:41VDC/boost:42VDC | float:82VDC/boost:84VDC | float:109VDC/boost:112VDC | |||
| -Charging current (max) | 1A | 8A | 1A | 8A | 1A | 8A |
| -Charging time | 8h recharge to 90% | Depend on the capacity of external batteries | 8h recharge to 90% | Depend on the capacity of external batteries | 8h recharge to 90% | Depend on the capacity of external batteries |
| Leakage current | <1mA | <1mA | <1mA | |||
| INDICATOR & ALARM | ||||||
| -Display | LED+LCD | |||||
| -Alarm | two short one long | |||||
| -Fault | Continuous beeping | |||||
| INTERFACE | ||||||
| -Smart RS232 | Standard Cable support INVT Power Monitor Software | |||||
| -SNMP(option) | Power Managment from SNMP Manager and Web Browser | |||||
| OPTION | ||||||
| -Intelligent Kits | DB9 port, dry contact | |||||
| -USB | B-type USB port | |||||
| -SNMP Kits | pluggable type | |||||
| MECHANICAL | ||||||
| -W* D *H (mm) | 144*353*228/144*364*228(max) | 190*375*336/190*387*336(max) | 190*427*336/190*439*336(max) | |||
| -W* D * H (mm)(shipment) | 240*448*320 | 285*470*420 | 285*521*420 | |||
| -Net Weight (KG) | 12 | 6 | 21 | 10.5 | 25.6 | 11.5 |
| -Package Weight(KG) | 13 | 7 | 22 | 12 | 27 | 13 |
| Color | Black default | |||||
| Products specifications are subject to change without further notice. | ||||||
Product Images:
Our Factory:
Our Exhibitions:
Product Certifications:
Shipping:
FAQ:
Product Quality: We are a public company(stock code: 002334) and owned 800-900 engineers for the control of product quality.
Delivery Time: Usually 15-20days, it depends to your specific order information.
Package: We have professional wooden package for large machine.
Quotation: Please leave your message,and I will send you a formal quotation via email.
