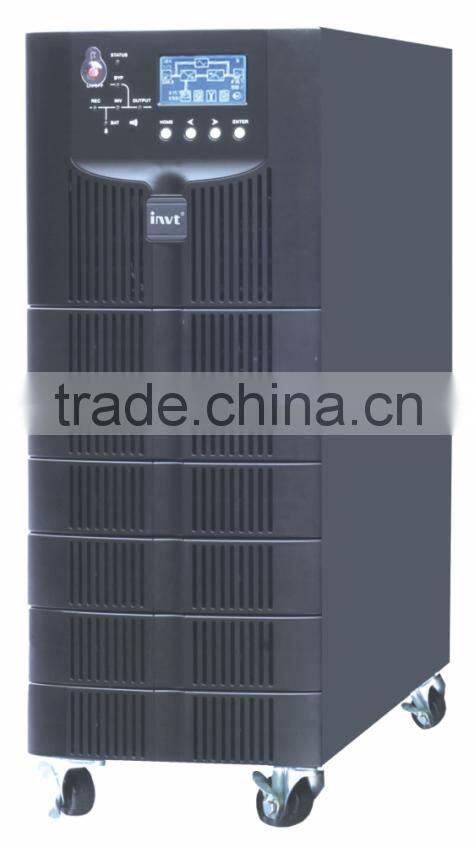

15kva Three Phase in Single Phase Out Online Ups Power for Computer Application
US$ 1,000 - 1,800
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
INVT & OEM
Model Number:
HT3115L
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian Shekou Huangpu HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10kva 220V/230V/240V Three Phase in Single Phase Out Long Back up Online Ups PowerUS$ 800 - 1,500MOQ: 1 Unit -
10kva 220V/230V/240V Three Phase in Single Phase Out Online Ups PowerUS$ 800 - 1,500MOQ: 1 Unit
-
3kva 3000va 220v 230v 240v Long Back up Online Ups Power SupplyUS$ 150 - 200MOQ: 1 Unit
-
3kva 3000va Internal Battery Online Ups Power SupplyUS$ 150 - 250MOQ: 1 Unit
-
2kva 48VDC 2000va 220v 230v 240v Long Back up Online Ups Power SupplyUS$ 100 - 200MOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
INVT & OEM
Model Number
HT3115L
Phase
Three Phase
Protection
Short Circuit
Weight
27kg
Output Voltage
220/230/240VAC
Type
On-line
Application
Networking
15kva three phase in single phase out online ups power for computer application
Product Specifications:
| HT3115L | HT3120L | |
| INPUT | ||
| Cold Start | YES, default frequency=50Hz or settable | YES, default frequency=50Hz or settable |
| Acceptable Input Voltage | 50%~125%(380VAC/400VAC/415VAC) | 50%~125%(380VAC/400VAC/415VAC) |
| 100% load@80%~125% | 100% load@80%~125% | |
| 90% load@70%~80% | 90% load@70%~80% | |
| 80% load@60%~70% | 80% load@60%~70% | |
| 65% load@50%~60% | 65% load@50%~60% | |
| Phase | Three phase in,single phase out | Three phase in,single phase out |
| Transfer Voltage Range | line-neutral | line-neutral |
| -Line low transfer | 110VAC/115VAC/120VAC | 110VAC/115VAC/120VAC |
| -Line low recovery | 116VAC/122VAC/127VAC | 116VAC/122VAC/127VAC |
| -Line high transfer | 275VAC/288VAC/300VAC | 275VAC/288VAC/300VAC |
| -Line high recovery | 268VAC/279VAC/291VAC | 268VAC/279VAC/291VAC |
| Input Frequency Range | 40Hz - 70Hz | 40Hz - 70Hz |
| Generator | Support Any Generator | Support Any Generator |
| OUTPUT | ||
| Frequency adaptable | Settable | Settable |
| Power | ||
| -Power(kVA) max | 15 | 20 |
| -Power(kW) max | 13.5 | 18 |
| Output Voltage | ||
| -Waveform | Pure sine wave | Pure sine wave |
| -Nominal voltage | 220/230/240VAC | 220/230/240VAC |
| -Voltage regulation | ± 1 % | ± 1 % |
| Output Frequency | ||
| -Synchronization range | settable,±3Hz default | settable,±3Hz default |
| -Slew rate | 0.5~5Hz/s,2Hz/s default | 0.5~5Hz/s,2Hz/s default |
| -Battery mode | (50±0.05) Hz | (50±0.05) Hz |
| Transfer Time | ||
| -Line mode to battery mode | 0 | 0 |
| -Inverter to bypass | 0 | 0 |
| Efficiency | ||
| -Line mode with battery full charged | 93.5% | 93.5% |
| -ECO mode | 98.0% | 98.0% |
| -Battery mode | 92.0% | 92.0% |
| Overload Capability (Line Mode) | 110%: Transfer to bypass after 10 mins | 110%: Transfer to bypass after 10 mins |
| 130%: Transfer to bypass after 1 min | 130%: Transfer to bypass after 1 min | |
| 150%: Transfer to bypass after 30s, shutdown after 1 min.(Line mode) | 150%: Transfer to bypass after 30s, shutdown after 1 min.(Line mode) | |
| Overload Capability (Battery Mode) | 110%: Shutdown after 10mins (Battery mode) | 110%: Shutdown after 10mins (Battery mode) |
| 125%:Shutdown after 10s(Battery mode) | 125%:Shutdown after 10s(Battery mode) | |
| >125%: Shutdown after 1s (Battery mode) | >125%: Shutdown after 1s (Battery mode) | |
| Crest Ratio | 3:1 | 3:1 |
| BATTERY | ||
| Rating/Type | Depend on the capacity of external batteries | Depend on the capacity of external batteries |
| Quantity | 16 | 16 |
| DC Voltage | 192/240VDC | 192/240VDC |
| Back-up Time | Depend on the capacity of external batteries | Depend on the capacity of external batteries |
| Battery-Low Voltage | (176±3)VDC | (176±3)VDC |
| Charger | ||
| -Charging voltage | (220±1%)VDC | (220±1%)VDC |
| -Charging current (max) | 5A | 5A |
| -Charging time | Depend on the capacity of external batteries | Depend on the capacity of external batteries |
| Leakage current | <1mA | <1mA |
| INDICATOR & ALARM | ||
| Display | LED+LCD | LED+LCD |
| Smart RS232 | Standard Cable support INVT Power Monitor Software | |
| B type USB(optional) | Standard Cable support INVT Power Monitor Software | |
| EPO | Remoted EPO function for customer. Short to activate | |
| Dry Contactor(optional) | DB9 type and phoenix terminal type for selection. (6 output ports, 1 input port) UPS fault alarm, general alarm, bypass mode, UPS normal mode, battery low voltage alarm, utility failure alarm, remoted shutdown. | |
| SNMP(optional) | Power Managment from SNMP Manager and Web Browser | |
| Option | SNMP, USB, Dry Contactor(AS400),Parallel Kit, ECO Kit, External Battery Cable(standard model), Maintenance Bypass, Maintenance Bypass Detecting Kit | |
| Reserved function | Can be designed as deffirent function according to customer's appliction | |
| MECHANICAL | ||
| W*D*H (mm) | 250*562*770 | 250*562*710 |
| Net Weight (KG) | 75 | 33 |
| Color | Black | Black |

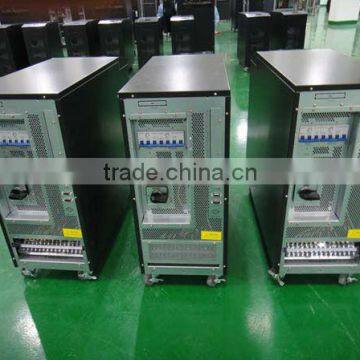

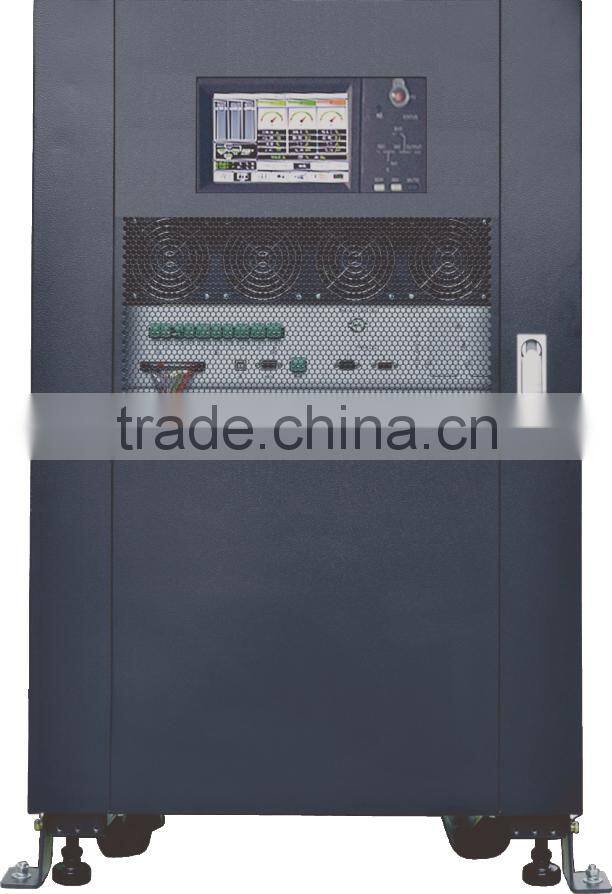

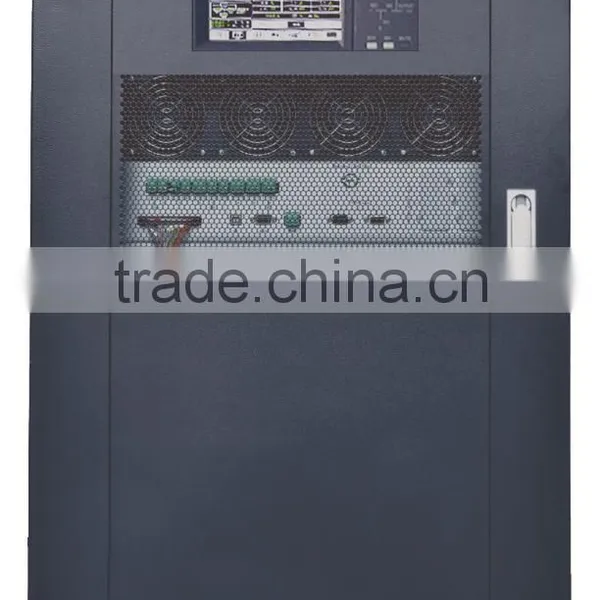

Product Images:

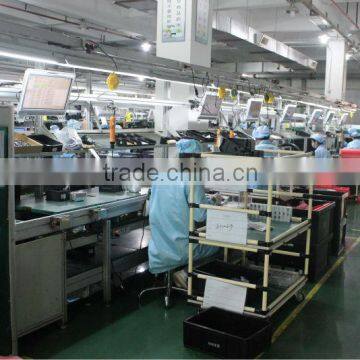

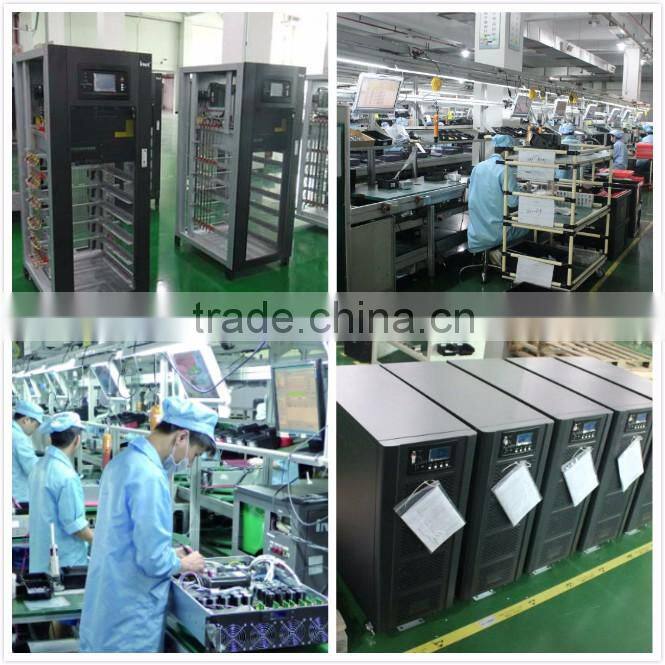

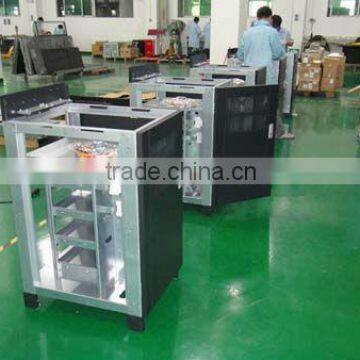

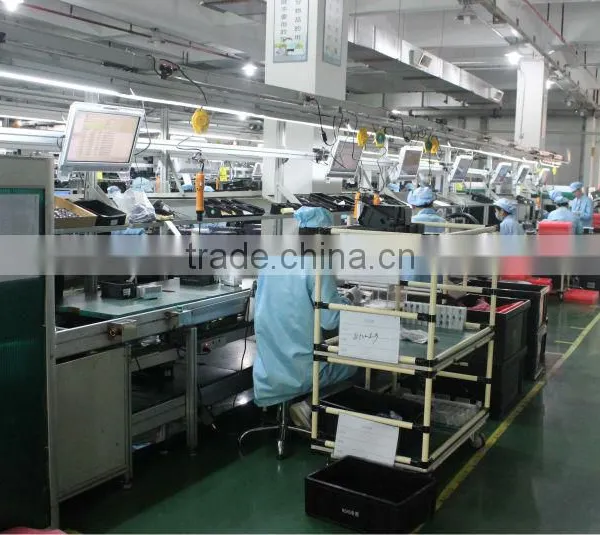

Our Factory:
Our Exhibitions:

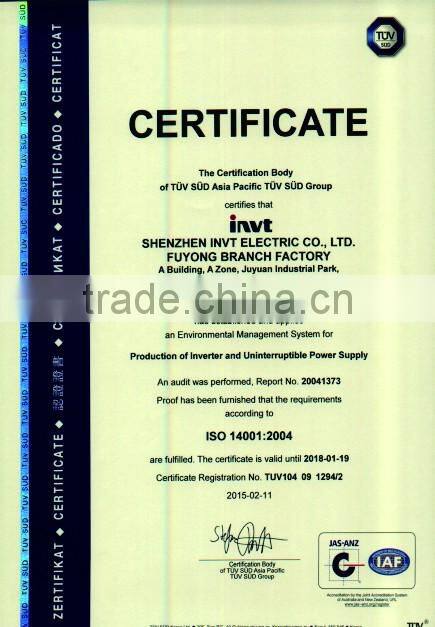

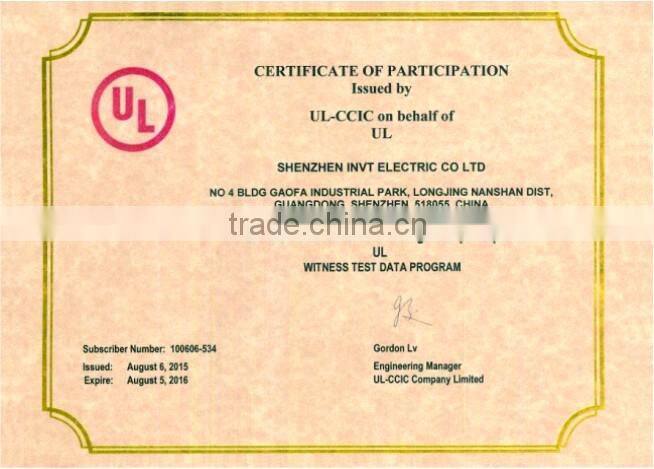

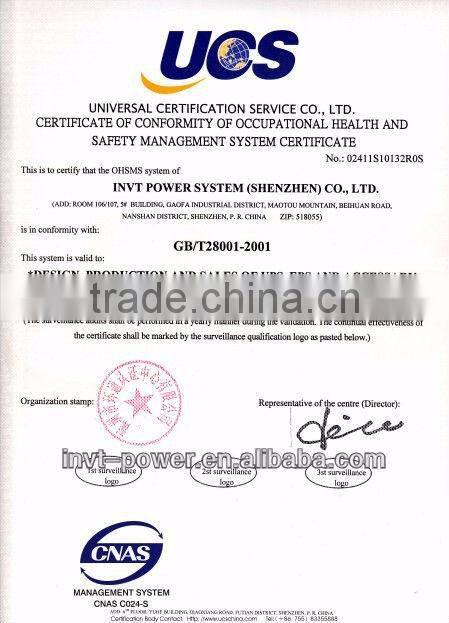

Product Certifications:

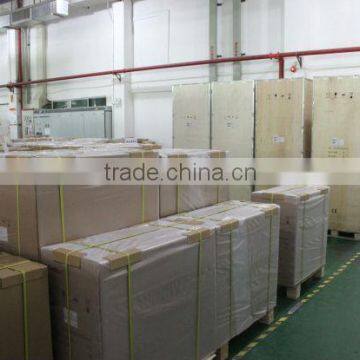

Shipping:
FAQ:
Product Quality: We are a public company(stock code: 002334) and owned 800-900 engineers for the control of product quality.
Delivery Time: Usually 15-20days, it depends to your specific order information.
Package: We have professional wooden package for large machine.
Quotation: Please leave your message,and I will send you a formal quotation via email.
