Post Porcelain Insulators For High Voltage ANSI Insulator 57-2 Manufactures Porcelain Insulators
US$ 1 - 10
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YIKA
Model Number:
57-2
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wenzhou Yika Long Rod Insulator Electrical Insulators Porcelain Insulator ManufacturersUS$ 1 - 10MOQ: 10 Pieces -
Wenzhou Yika 33KV Porcelain Insulator ANSI 55-4 Insulators Pin Type PorcelainUS$ 1 - 10MOQ: 10 Pieces
-
Ceramic Electrical Insulator Porcelain Long Rod Insulator Types of Electrical InsulatorsUS$ 1 - 10MOQ: 10 Pieces
-
Wenzhou Yika Porcelain Pin Insulators ANSI 56-2 Porcelain Insulator Manufacturers in ChinaUS$ 1 - 10MOQ: 10 Pieces
-
Wenzhou Yika Pin Insulator Porcelain 56-3 ANSI Pin Type Ceramic InsulatorUS$ 1 - 10MOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
YIKA
Model Number
57-2
Type
Insulator
Material
Porcelain
Application
High Voltage
Rated Voltage
22KV
Tensile Strength
12.5KN
Post Porcelain Insulators For High Voltage ANSI Insulator 57-2
Manufactures Porcelain Insulators
Specifications

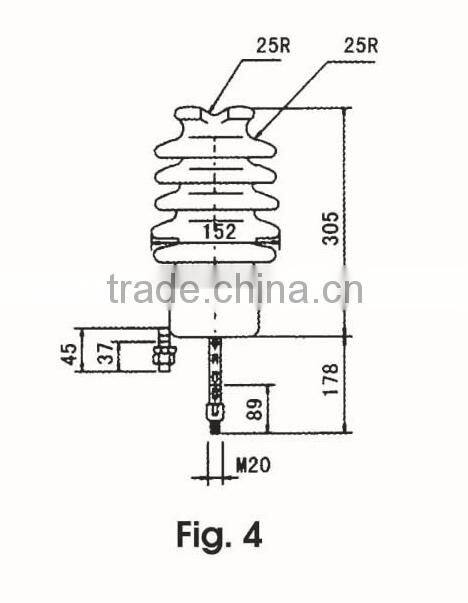

The Main Dimensions and Characteristics:
| Creepage distance | mm | 559 | |||
| Drying arcing distance | mm | 241 | |||
| Cantilever strength | KN | 12.5 | |||
| Power frequency flashover voltage | Dry | KV | 100 | ||
| Wet | KV | 70 | |||
| Critical impulse flashover voltage | Postive | KV | 160 | ||
| Nagetive | KV | 205 | |||
| Radio interference voltage | Test to the ground | KV | 15 | ||
| Max. RIV at 1 MHz | KV | 100 | |||
| Net weight | kg | 9 | |||
| Applicable standard | ANSI | ||||
