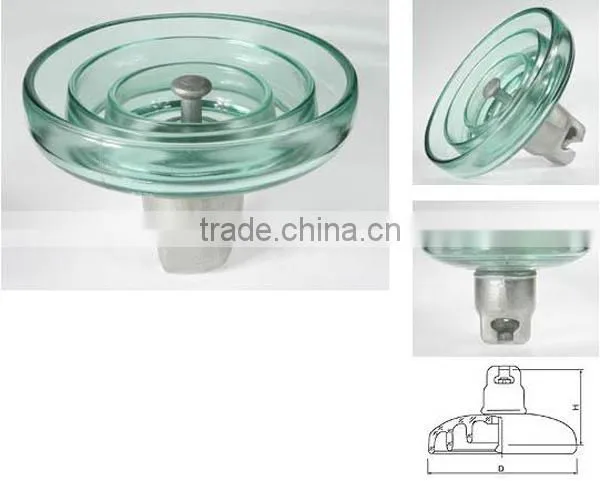

Wenzhou Yika IEC 120KN Glass Disc Insulators U120B Glass Insulator
USD $5 - $15
/ Piece
10 Pieces(Min.Order)
- 5000000 Piece / Pieces per Month
- NINGBO SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Wenzhou Yika IEC Insulating Glass Insulators U70BS-70KN
-
Wenzhou Yika IEC Toughen Glass Insulator U160B 160KN Glass Suspension Insulator
-
Wenzhou Yika IEC Insulator Glass Disc Toughened Glass Insulator U70BS
Quality Choice
-
Yika Green Glass Discs 160KN Glass Insulator U160
-
Wenzhou Yika IEC Glass Insulator U70BL Insulator
-
Wenzhou Yika IEC Electrical Insulator Glass U120BS Insulator
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | YIKA | Model Number: | U120B |
| Type: | Insulator | Material: | Other, glass | Application: | High Voltage |
| Rated Voltage: | 130KV | Tensile Strength: | 120KN |
Packaging Details
Wooden box
Product Description
120KN Glass Disc Insulators U120B Glass Insulator
Specifications
The 120KN Glass Disc Insulator Specifications:
| Universal Model | U120B/146 | U120B/127 | |
| other model | LXP-120 | LXP2-120 | |
| ( mm ) Dimaeter | 255 | 255 | |
| ( mm ) Height | 146 | 127 | |
| ( mm )Leakage distance | 320 | 320 | |
| ( mm )Coupling | 16 | 16 | |
| ( kN ) SML | 120 | 120 | |
| ( kN )Tension Load Test | 60 | 60 | |
| ( kV )Power frequency Withstand wet | 40 | 40 | |
| ( kV )Lightning Impulse Withstand | 100 | 100 | |
| ( P.U )Puncture Impulse Voltage | 2.8 | 2.8 | |
| ( kV )Puncture power frequency voltage | 130 | 130 | |
| ( μV )Radio Interference( 10kV,1MHz) | 50 | 50 | |
| ( kV )Visual Corona (foot / cap) | 18/22 | 18/22 | |
| Power Frequency Arc Test | 0.12s/20kA | 0.12s/20kA | |
| ( kg )Unit weight | 4 | 4 | |
Packaging
Company Profile
Wenzhou Yika Electric Co., Ltd.
Wenzhou Yika Electric Co.,Ltd. is a manufacturer of Fuse Cutout, Lightning Arrester, Insulator, Disconnector Switch, Circuit Breaker, Ring Main Unit etc. with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in Electricity Distribution System and Substation and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
