Home > Products > Composite Insulator > Wenzhou Yika IEC 33KV Pin Type Polymer Insulator 33KV Silicon Line Post Insulator
Wenzhou Yika IEC 33KV Pin Type Polymer Insulator 33KV Silicon Line Post Insulator
- 5000000 Piece / Pieces per Month
- NINGBO SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Wenzhou Yika IEC 33KV High Voltage Insulator Composite Type Polymeric Insulator Pin Type
-
Wenzhou Yika IEC 11KV Suspension Composite Insulator 10KV Insulator 45KN 70KN
-
Wenzhou Yika IEC 220KV Silicone Rubber Insulators 70KN 100KN
-
Wenzhou Yika IEC Composite Insulator 24KV Ball Socket Insulator Manufacturing Polymeric Insulators
-
Wenzhou Yika IEC 28KV Line Post Polymer Insulator Porcelain Head
-
Wenzhou Yika IEC 11KV 70KN Suspension Composite Insulator 15KV Polymer Deadend Insulator Price
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YIKA | |
| Model Number | FP-33 | Type | Insulator | |
| Material | Composite Polymer | Application | High Voltage | |
| Rated Voltage | 33KV | Tensile Strength | 8KN |
Carton for FCL shipment / pallet for LCL shipment
Product Description

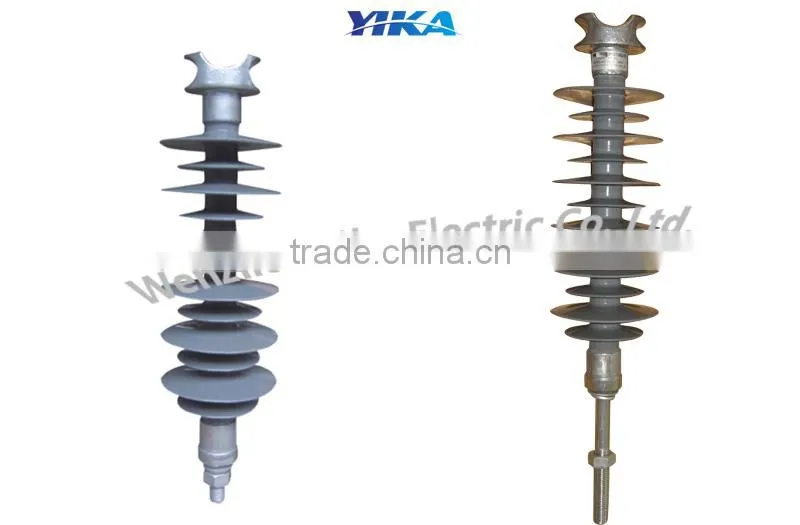

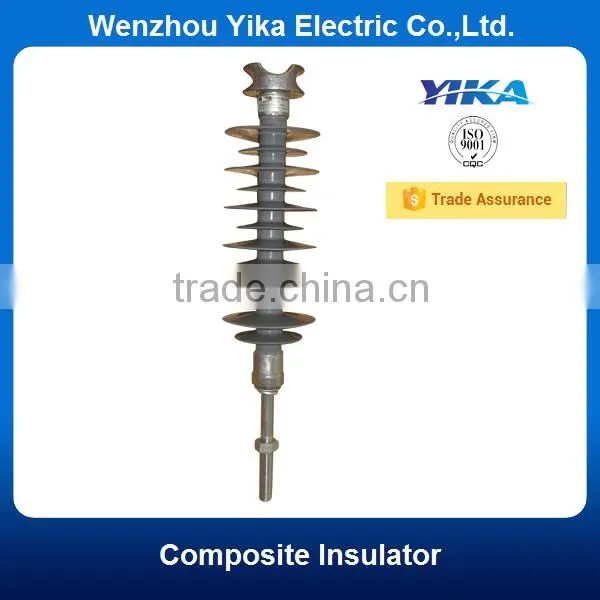

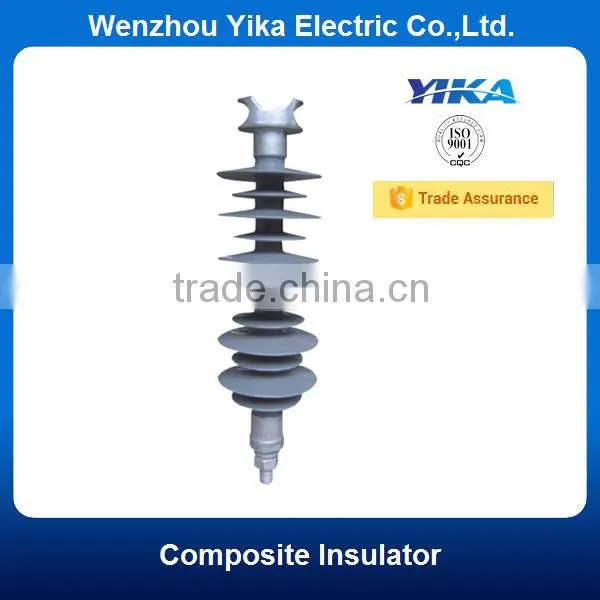

33KV Pin Type Polymer Insulator 33KV Silicon Line Post Insulator
The Polymer Insulator are made of glassfiber epoxy core rod, silicone rubber shed and metal fittings.
The silicon rubber shed adopt the whole packing pressure technique, and then to solve the key problem – interface electric spark puncture, which would affect the reliability of composite insulator.
Connection of the glassfiber rod and metal fittings, adopts the pressure welding technique of the international advanced level, and have the full automatic sound wave detection of defects system, high intension, beautiful outline, small volume, light weight, and the metal fitting of galvanization can corrosion prevention and exchange used with porcelain insulator.
This product is reliable structure, can’t damage the core rod, and take full advantage of the mechanical strength.
The dimension can be customized as per client's requirement.
| Key Specifications/Special Features: | |
| Rating Voltage | 36KV |
| Specialized mechanical tension load: | 4-8KN |
| Structure height | 430mm |
| Min Arc Distance | 318mm |
| Min creepage distance | 1060mm |
| Lightning impulse voltage: | 230KV |
| Power frequency wet withstand voltage | 95KV |
Company Profile
Wenzhou Yika Electric Co.,Ltd. is a manufacturer of Fuse Cutout, Lightning Arrester, Insulator, Disconnector Switch, Circuit Breaker, Ring Main Unit etc. with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in Electricity Distribution System and Substation and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
