110KV Composite High Tension Insulators Polymer
Insulator Electrical Product

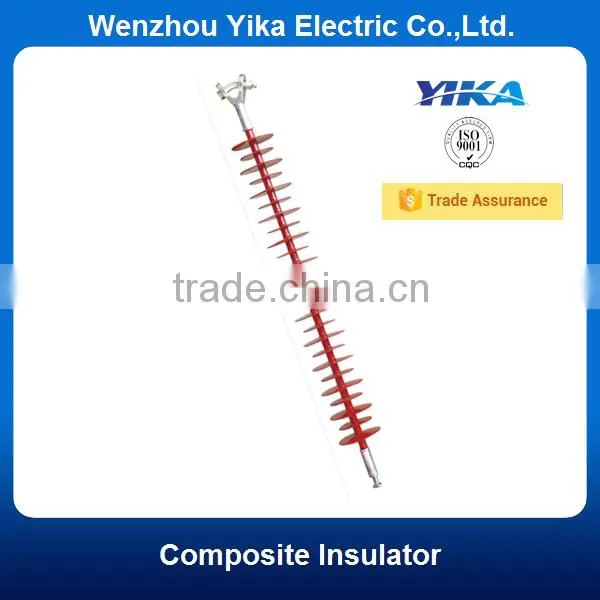

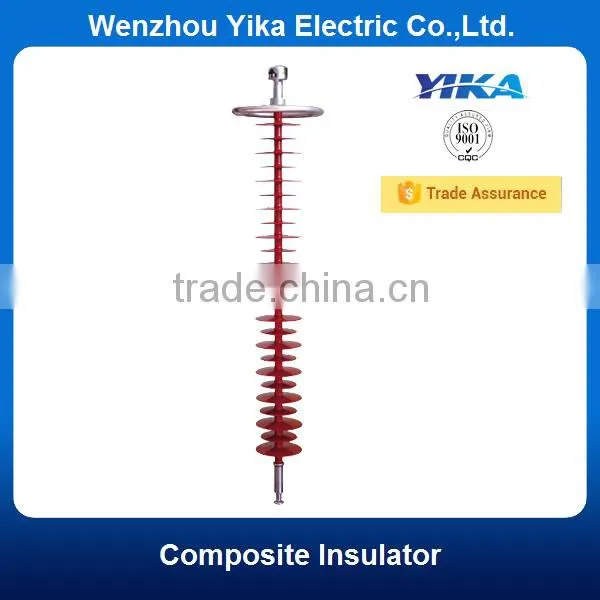

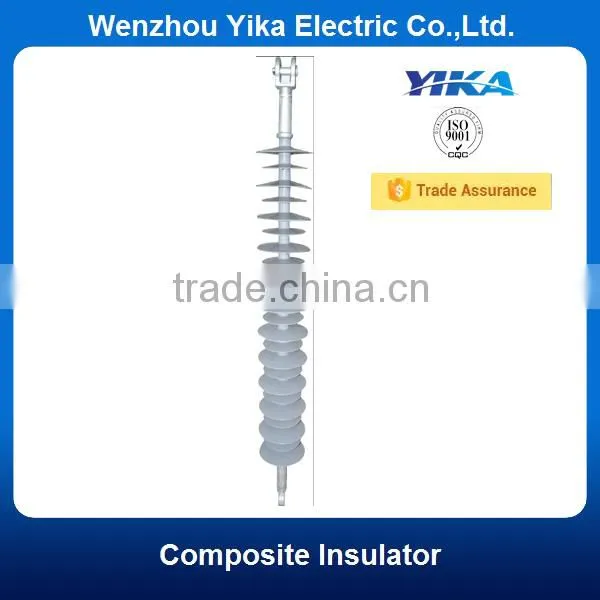

The Polymer Insulators are made of glassfiber epoxy core rod, silicone rubber shed and metal fittings.
The silicon rubber shed adopt the whole packing pressure technique, and then to solve the key problem – interface electric spark puncture, which would affect the reliability of composite insulator.
Connection of the glassfiber rod and metal fittings, adopts the pressure welding technique of the international advanced level, and have the full automatic sound wave detection of defects system, high intension, beautiful outline, small volume, light weight, and the metal fitting of galvanization can corrosion prevention and exchange used with porcelain insulator.
This product is reliable structure, can’t damage the core rod, and take full advantage of the mechanical strength.
The dimension can be customized as per client's requirement.
| Technical Specifications: | |||||||
| Model | Rated Voltage |
Rated mechanical load |
Structure height |
Min. Arc distance |
Min. Creepage distance |
Lightning impulse withstand voltage |
1 min P.F. withstand voltage (wet) |
| FXBW-110/70 | 110 | 70 | 1200 | 1050 | 3150 | 550 | 230 |
| FXBW-110/100 | 110 | 100 | 1240 | 1050 | 3150 | 550 | 230 |
| FXBW-110/120 | 110 | 120 | 1240 | 1050 | 3150 | 550 | 230 |
| FXBW-110/160 | 110 | 160 | 1250 | 1015 | 3200 | 550 | 230 |
- 1. Professional Manufacturer
- 2. Standards: ANSI, IEC, BS, DIN
- 3. A wide range of low and high voltage electrical products:
Fuse Cutout |
Lightning Arrester |
Composite Insulator |
Glass Insulator |
Porcelain Insulator |
Epoxy Insulator |
Fuses |
Disconnector Switch |
Circuit Breaker |
Ring Main Unit |
Insulated Sheath |
Terminals |
4. Factory Direct Price
5. Enough ability to meet buyers fresh designed items.
1. Payment : Irrevocable L/C at sight or TT
2. Delivery time and method: Usually within 30 days
3. Port of loading: NINGBO, SHANGHAI, FUZHOU (CHINA)
4. MOQ: 100PCS
5. Package: Standard export packing or as per your requirement.
OEM/ODM can be acceptable by us. We will open a mould as per your sample.
If you discovers defects in workmanship and /or material and so notifies us promptly in writing. we shall with all reasonable speed remedy such defects of non-conformance to the specifications at our expense by replacement at the option of you.
