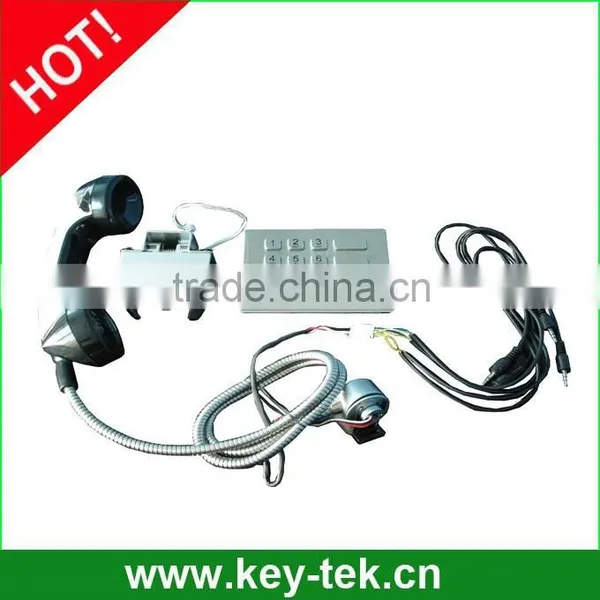

Help CenterPUBLIC TELEPHONE SET
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Key-Tek
Model Number:
PUBLIC TELEPHONE SET
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen Zhen and HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Metal Phone Fork for Prison ApplicationNegotiableMOQ: 1 Set -
Metal Phone Fork for Public ApplicationNegotiableMOQ: 1 Set
-
Metal Phone Fork With Anti-vandal Robust Black Phone Handle for Public ApplicationNegotiableMOQ: 1 Set
-
Anti-vandal Proof Phone Connector for Public Phone SetNegotiableMOQ: 1 Set
-
Anti-vandal Proof Phone Handle for Public ApplicationNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Key-Tek
Model Number
PUBLIC TELEPHONE SET
Type
Payphone
Voice Mail
Yes
1.Vandal Proof IP65 Stainless Steel Telephone Keypad
MAIN FEATURE
- Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.
- Internet friendly key layout, key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available.
- With firm tactile key feel, full long key travel switches, with unique double over-travel protection.
- Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.
MECHANICAL DATA
- Actuation Force: 0.6N+/-0.1N (pressure point).
- Key Travel: 2.0mm.
- Lettering: laser engraving, or raised letters.
- Front panel: brushed stainless steel.
- Actuator/keys materials: stainless steel.
- Dimensions: 120.0mm x 98.0mm.
- G.W. 1.0KGs.
ELECTRICAL DATA
- Switching material: Gold-on-Carbon.
- Power supply voltage: 5.0V DC.
- Power Consumption: Under 300.0mW for operation, under 200.0mW for non-operation.
- Electrical lifetime: > 5 years.
- EMC:EN55022(B).
- Communication interface: PS2, or USB available.
ENVIRONMENTAL ADAPTABILITY
- Operating temperature:-20°C to +60°C.
- Storage temperature:-30°C to +70°C.
- Operating RH: 3090%.
- Atmospheric pressure: 60106Kpa.
RELIABILITY
- RoHS Compliant, CE and FCC,ESD
- Protection Level: IP65(front panel)
- Vandal resistant IK09.
- Key Lifespan >10 million actuations.
- MTBF >20000H.
- MTTR <30min.
2.Metal phone fork
MAIN FEATURE
- It adopts quality alloy material.
- Its salt mist test conforms with national standard.
- Lifespan>300,000 times
3.Anti-vandal Phone Handle Set
MAIN FEATURE:
- Its handle is manufactured by high intensity PC material.
- It has strong anti-destruction capability.
- It can't be romoved without special tool.
- Metal rotative tube employs stainless steel, it has fine elasticity, flexibility and tensile performances.
- The handle tensile strength>180KGs.
4.Anti-vandal phone connector
MAIN FEATURE:
- It adopts super quality alloy material.
- Its salt mist test conforms with national standard.
