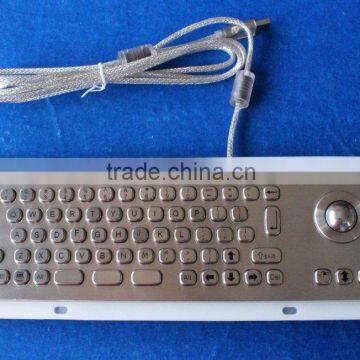

MINI Vandal Proof IP65 Stainless Steel Keyboard

Dimension:293.0mm x 87.0mm (front panel)

Description:MINI Vandal proof IP65 stainless steel industrial keyboard with 25mm diameter trackball, carbon-on-gold key switch technology with long stroke (2.0mm) for fast and accurate data input, one compete silicone rubber along mounting aluminum plate for easy mounting & sealing with cabinet, rear panel mounting solution.

APPLICATION

This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, airports, railway stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
MAIN FEATURE

Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers.
Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions,
water proof/dirt proof operation under hostile environments.
Waterproof execution according to degree of protection IP65 from the front panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.
The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
Internet friendly key layout, key-tops are laser etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Metal keys are protected against twisting and evering which can not be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.
MECHANICAL DATA

Key: 71keys, super quality brushed stainless steel
Key top style: Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
Key Size: 11.0mm x 10.0mm for normal keys,10.0mm x 20.0mm for enter key.
Key travel: 2.0mm
Tracker ball: 25mm (1.0' )diameter, Resolution 440 edges/revolution. Black Phenolic Trackballs are available.
Switch life: more than 10 million of operations.
Actuation Force: 0.5N +/-0.1N for key 11.0mm x 10.0mm (pressure point) 1.0N +/-0.1N for key 10.0mm x 20.0mm (pressure point)
Mounting Rack: Aluminum alloy
Front Plate: Super quality brushed stainless steel
Lettering: Sunk laser legends & characters in high quality ink
Actuator/keys materials: stainless steel
G.W.:1.20KGs

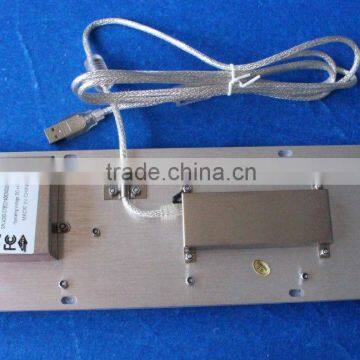

Dimensions: 293.0mm x 87.0mm (front panel), 317.0mm x 111.0mm (back panel)
ELECTRICAL DATA

Supply Voltage: +5V DC +/-5%
Current Rating: appr. 20mA
EMC Standard: It is compliance with the council EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003 EN55024: 1988+A1:2001+A2:2003
Emission EN 50081-1
Immunity: EN 50082-1
Lifespan> 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB available.
OS, DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILITY

Operating temperature:-20oC to +60oC
Storage temperature: -30oC to 70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY

RoHS Compliant, CE and FCC, ESD
Protection Level: IP65(front panel)
Vandal resistant IK09
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
