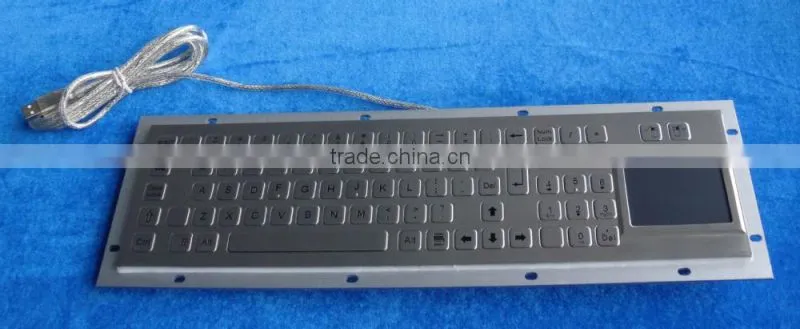

Metal Short Travel vandalism proof ruggedized metal keyboards

81 keys compact format vandal proof IP65 ruggedized metal industrial keyboards with integrated numeric keypads and ruggedized touchpad, with gold-on-gold key switch technology with short  stroke 0.45mm,rear panel mounting solution.

APPLICATION

• This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

MAIN FEATURE

• Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers.
• Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
• Waterproof execution according to degree of protection IP65 from the front panel, the keyboard is sealed against the ingress or liquid and dirt when mounted in a suitable enclosure.
• Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
• Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
• With firm tactile key feel, short key travel 0.45mm switches
• Ease of customizing with multiple languages, to accommodate foreign or custom variants.
• Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.
• The numeric keypad integrated between keyboard and trackball can be with encryption module supporting DES/TDES for bank usage of CDM/ATM.

MECHANICAL DATA

• Key: 81 tactile feel keys in super quality brushed stainless steel
• Key top style: Plain/Non-Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
• Touchpad cover: Composite
• More than Lifetime 10 million strokes
• Mutual Capacitance sensing
• - X/Y position sensing resolution: 40 counts/mm
• - X/Y position reporting: Relative
• - Output (self-detectable depending on cable): PS2 or USB
• - Tracking speed: Maximum 1,016 m/sec
• - Power supply voltage: 5 VDC ±0.25V
• - Current rating (active mode): 17 mA
• Front Plate: Super quality brushed stainless steel
• Short key travel: 0.45mm
• Switch Life: more than 5 million operations.
• Actuation Force: 2.0N for key 14mmx 14mm(pressure point)  4.0N for key Number14mmx 28mm(pressure point)
• Lettering: Sunk laser legends & characters in high quality ink
• Actuator/keys materials: stainless steel
• G.W.: 2.0KGs
• Dimensions:392.0mm x 110.0mm (front panel), 416.0mm x 134.0mm (back panel)

ELECTRICAL DATA

• Supply Voltage: +5V DC +/-5%
• Current Rating: appr. 20mA
• EMC Standard:It is compliance with the council EMC directive 89/336/EEC
• EN55022: 1988+A1:2000+A2:2003
• EN55024: 1988+A1:2001+A2:2003
• Emission: EN 50081-1
• Immunity: EN 50082-1
• Lifespan> 5 years
• Switch Contact Material: Gold-on-Gold key switch technology with metal dome PCB.
• Interface: PS2, USB available, RS232 for EPP.
• OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

• Operating temperature:-20^oC to +60^oC
• Storage temperature: -30^oC to +70^oC
• Operating RH: 30-90%
• Atmospheric pressure: 60-106Kpa.
• Saline mist: 96 hours, IEC 60512-6
• Damp heat test at + 40^oC: 21 days, IEC 60512-6
• Dry heat test at + 85^oC:10 days, IEC 60512-6

RELIABILITY

• RoHS Compliant, CE and FCC
• Protection Level: IP65(front panel)
• Vandal resistant IK10
• Key Lifespan >5 million actuations
• Touchpad lifespan > 10 million of times
• MTBF >50000H
• MTTR <30min
