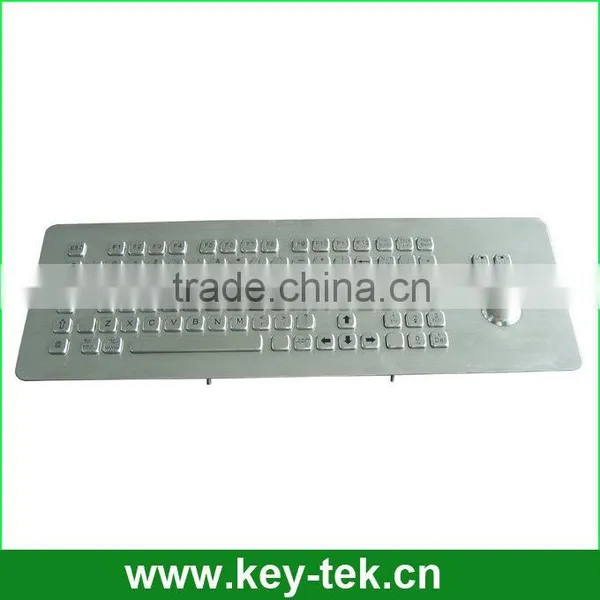

Vandal-proof Metal Kiosk Protected Keyboard With Optical Trackball

Vandal-proof Metal Kiosk Protected Keyboard With Optical Trackball thumbnail-1
Vandal-proof Metal Kiosk Protected Keyboard With Optical Trackball photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Brand Name:
Key-Tek
Model Number:
K-TEK-A432TB-KP-FN
Contact Supplier Request Quote Chat Now
Key Technology (China) Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Key-Tek
Model Number K-TEK-A432TB-KP-FN
Application Other, Kiosk application
Keypad Button Material Metal

MODEL NO.: K-TEK-A432TB-KP-FN





DESCRIPTION:

97 Keys Compact Format IP65 static Vandal Proof Stainless Steel industrial Keyboard with full keyboard functionalities, with 38.0mm trackball module, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, numeric keypad (optional PINPAD with Encryption Electronics Controller supporting DES/TDES), function keys F1, F2..F10, F11, F12 are on the top line for easy operation, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, one complete silicone rubber under the top stainless steel plate for easy mounting & sealing tightly with cabinet, stainless steel top plate with threaded bolts for top panel mounting solution.3 optional trackball modules: IP65 static mechanical trackball module with 400 DPI, IP68 dynamic optical trackball module with 800 DPI, IP68 dynamic laser trackball module with 1200 DPI, pls.see below table.



DIMENSIONS: 432.0mm x 155.0mm (top panel)



Product Classifications and Descriptions

IP Rated TB

K-TEK-A432-MTB-KP-FN

Keyboard;

IP65 static Mechanical Trackball with 400 DPI;

Numeric Keypad;

FN Keys (4-in-1, all-in-one)



PS/2;USB



IP65 static



K-TEK-A432-LTB-KP-FN



Keyboard;

IP65 dynamic Laser Trackball with 1200 DPI;

Numeric Keypad; FN Keys (4-in-1, all-in-one)



PS/2;USB



IP65 dynamic

K-TEK-A432-OTB-KP-FN

Keyboard;

IP68 dynamic washable Optical Trackball with 800 DPI;

Numeric Keypad; FN Keys (4-in-1, all-in-one)



PS/2;USB



IP68 dynamic



APPLICATION

This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.



MAIN FEATURE

Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

Waterproof execution according to IP65 protection from top panel, top stainless steel plate with threaded bolts for easy tightly mounting to enclosure or panel.

An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation

Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.

Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.

Ease of customizing with multiple languages, to accommodate foreign or custom variants.

Complete electronic modules including controller in close consultation with our customers are available.

PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.

The numeric keypad between keyboard and trackball is available with encryption module supporting DES/TDES for bank usage of CDM/ATM.



MECHANICAL DATA

Actuator/keys: 97 keys, super quality SUS304 brushed stainless steel

Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.

Key travel: 2.0mm

Actuation Force:  0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Switch life: more than 10 million of operations.

Front Plate: 1.5mm thickness super quality brushed stainless steel

Back Plate:3.0mm thickness brushed & oxidized aluminium

Tracker ball: 38.1mm (1.5’) diameter, IP65 static 400DPI mechanical trackball, IP68 dynamic washable 800DPI optical trackball, IP68 dynamic 1200DPI laser trackball are all available.

G.W.: 2.50KGs

Dimensions:432.0mm x 155.0mm (front panel) , 400.0mm x 125.0mm (back panel)



ELECTRICAL DATA

Supply Voltage: +5V DC +/-5%

Current Rating: appr. 30mA

EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004

EMI: EN 55022: 2010

EMS: EN 55024:2010

Lifespan > 5 years

Switch Contact Material: Carbon-on-Gold key switch technology PCB.

Interface: PS2, USB available, RS232 for EPP

If needed, numeric keypad is available to be with encryption electronics controller supporting DES/Triple DES.

OS: All windows, Linux, Unix, Mac OSX



ENVIRONMENTAL ADAPTABILITY

Operating temperature:-20oC to +60oC

Storage temperature: -30oC to +70oC

Operating RH: 30-90%

Atmospheric pressure: 60-106Kpa.

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40oC: 21 days, IEC 60512-6

Dry heat test at + 85oC: 10 days, IEC 60512-6



RELIABILITY

RoHS Compliant, CE and FCC, ESD

Protection Level: IP65(front panel)

Vandal resistant IK09

Key Lifespan >10 million actuations

MTBF >50000H

MTTR <30min
