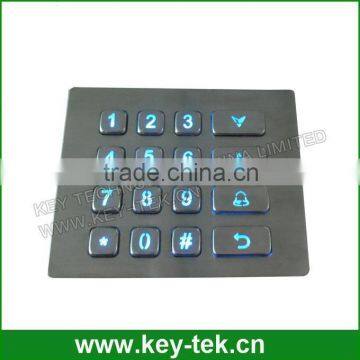

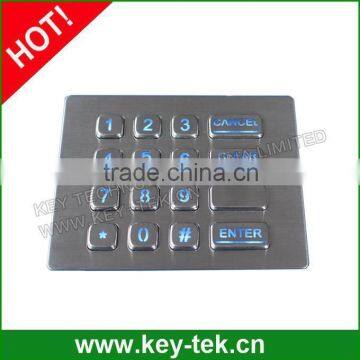

16 Keys Vandal proof IP65 metal kiosk illuminated numeric keypad
Quick Details:
1. 16 Keys Vandal proof IP65 Stainless Steel dot matrix keypad
2. carbon-on-gold key switch technology
3. Top panel mounting
4. With adjustable indsutrial backlight
5. CE, FCC, RoHS, IP65, ESD
Descriptions:
1. 16 keys IP65 dynamic compact format vandal proof Stainless Steel industrial numeric keypad with industrial PCB electronics controller shieded & protected by stainless steel housing
2. industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise
3. top stainless steel plate with sealing gasket for easy & tight sealing and mounting to enclosure or panel
4. threaded bolts under top stainless steel plate for top panel mounting solution.
5. with adjustable industrial backlight
Special Features:
1. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
2. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
3. Waterproof execution according to IP65 protection from top panel, top stainless steel plate with threaded bolts and sealing gasket for easy tightly mounting to enclosure or panel.
4. An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
5. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
6. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
7. Complete electronic modules including controller in close consultation with our customers are available. OS:
8. OS: All windows, Linux, Unix, Mac OSX
Applications:
This industrial keypad is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:
MECHANICAL DATA | |
Actuator/keys |
16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel |
Switching material |
carbon-on-Gold key switch technology PCB |
Actuation Force |
0.6 N+/-0.1N (pressure point) |
Key travel |
2.00mm |
Lettering |
laser engraving, or raised letters |
Front plate |
Super quality SUS304 brushed stainless steel |
Back plate |
Super quality SUS304 brushed stainless steel |
Actuator/keys materials |
stainless steel. |
Dimensions |
120.0mm x 98.0mm (L x W ) |
G.W. |
0.8KG. |
Key top style |
Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
Key Size |
14.0mm x 14.0mm for normal keys;14.0mm x 28.0mm for function keys |
Switch life |
more than 5 million of operation |
ELECTRICAL DATA | |
Power supply voltage |
5V DC+/-5% |
Current Rating |
appr. 20mA |
Power Consumption |
Under 300mW for operation, under 200mW for non-operation. |
Electrical lifetime |
> 5 years |
EMC Standard |
It is compliance with the council IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004 |
EMI |
EN 55022:2010 |
EMS |
EN 55024:2010 |
Communication interface |
PS2, USB or RS232 are all available. |
OS |
All windows, Linux, Unix, Mac OSX |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature |
-20oC to +60oC |
Storage temperature |
-30oC to +70oC |
Operating RH |
30-90% |
Atmospheric pressure |
60-106Kpa |
Saline mist |
96 hours, IEC 60512-6 |
Damp heat test at + 40oC |
21 days, IEC 60512-6 |
Dry heat test at + 85oC |
10 days, IEC 60512-6 |
RELIABILITY | |
Certification |
RoHS Compliant, CE and FCC, ESD |
Protection Level |
IP65(front panel) |
Vandal resistant |
IK09 |
Key Lifespan |
>10 million actuations |
MTBF |
>50000H |
MTTR |
<30min |
