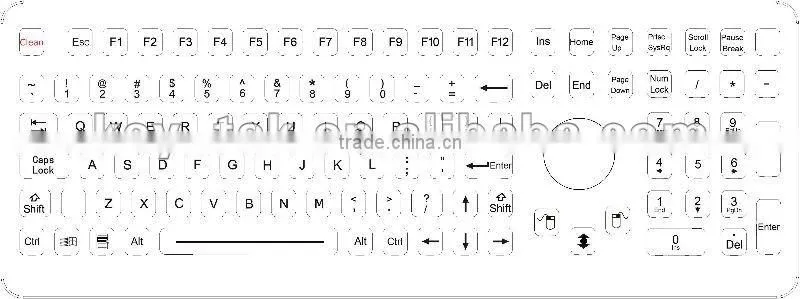

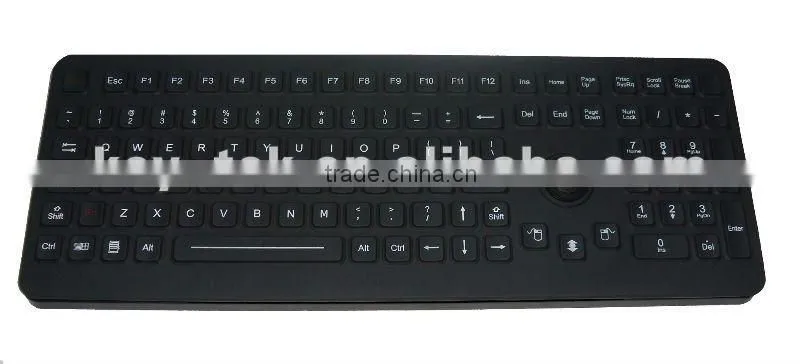

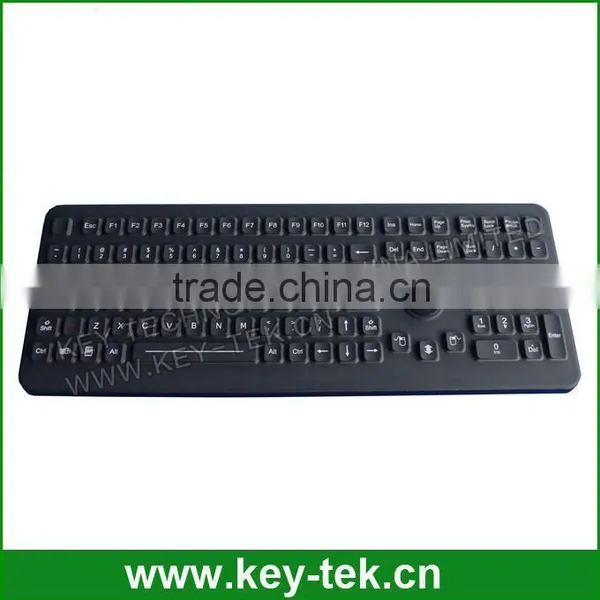

Industrial keyboard with optical trackball compact design and custom layout
Model NO:K-TEK-M396TB-KP-FN-DT

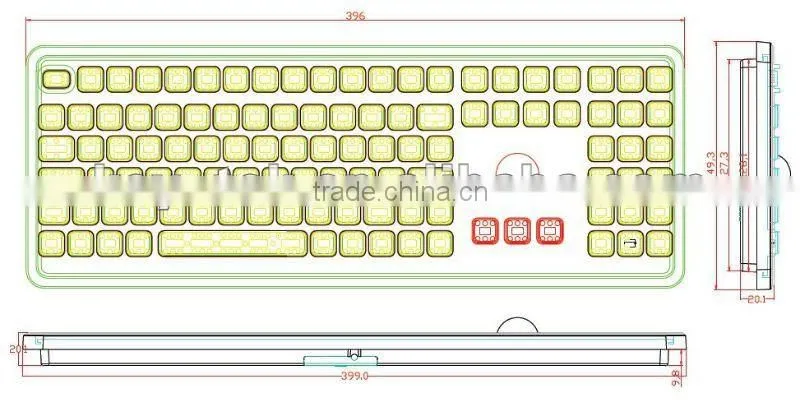

DIMENSIONS : 396.0mm x 150.0mm x 23.0mm (L x W x H)
DESCRIPTION: IP68 rated ruggedized industrial silicone rubber keyboard with full keyboard functionalities with 109keys, integrated numeric keypad, IP68 dynamic rated optical trackball module with 800 DPI resolutions, function keys and carbon-on-gold key switch technology with stroke 1.50mm, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, Clean key for easy cleaning, mountable desk top version with robust polycarbonate case, adjustable industrial backlight optional.
APPLICATIONS:
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
MAIN FEATURES:
keyboard has NVIScompliant red adjustable backlighting, while NVIS backlighting makes this keyboard ideal for aviation or vehicle applications where night vision goggles are necessary.
The trackball pointing device is a completely sealed 38-mm laser unit, featuring a removable ball for convenient cleaning, as well as an adjustable tension ring. The trackball is operated using sealed switches with left and right click functions.
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
Special dura-coating for excellent mechanical and chemical resistance
With firm tactile key feel, key travel 1.2mm.
Integrated numeric keypad.
Optical IP68 mouse available

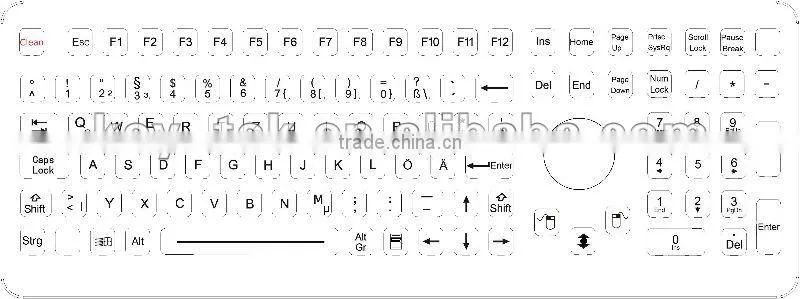

Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Enclosure: industrial silicone, Aluminum (rear side)
MECHANICAL DATA
Key: 109 keys
Key top style: Protuberant rectangular keys with tactile feeling.
Key Size: 12.0mm x 13.0mm for normal keys, 23.4.0mm x 13.0mm for enter key and space bar key.
Switch life: more than 10 million of operations.
Tracker ball: 38mm 1.5’ diameter.
Actuation Force: 0.8 N+/-0.1N for normal key with 12.0mm x 13.0mm(pressure point), 1.6 N+/-0.1N for
key 23.4.0mm x 13.0mm (pressure point)
Cable Length: 2.5m
G.W.: 1.5KGs
Dimensions: 396.0mm x 150.0mm x 23.0mm (L x W x H)
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 20mA
EMC Standard: It is compliance with the council EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003
EN55024: 1988+A1: 2001+A2:2003
Emission: EN 50081-1
Immunity: EN 50082-1
Lifespan> 5 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
Interface: PS2, USB available.
OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-30oC to +55oC
Storage temperature: :-40oC to +65oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa
Saline mist: 96 hours, IEC 60512-6
Damp heat test at +40oC: 21 days, IEC 60512-6
Dry heat test at +85oC: 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP68, NEMA 6P
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
