Model No.: K-TEK-D379TP-KP-FN
DIMENSIONS: 389.3mm x 179.2mm (top panel)
DESCRIPTION:

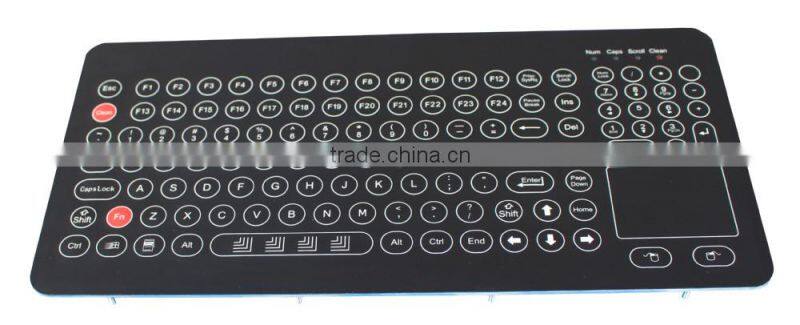

118 keys IP65 dynamic rated industrial membrane keyboard with full keyboard functionalities with integrated numeric keypad and 24 function keys (F1, F2...F11, F12...F22, F23, F24) on the upper line, IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with extremely tactile feeling for reliable data input, with Clean key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized and backed with 3.0mm alumium plate with sand blasting & oxygenation treatment, top panel mounted.
APPLICATIONS:
This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.
lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses etc
OTHER INDUSTRIES
MAIN FEATURES:
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The foil-covered aluminum front plate is mounted flush for easy cleaning.
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
This stylish, rugged medical keyboard is ideal for any application requiring a rugged enclosure and low profile.
Clean key
-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime.
SPECIFICATION KEYBOARD:
Number of Keys: 118
Key switch Technology: metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys
Actuation Force: 1.0N for key 11.0mm x 11.0mm (press point)
Key Travel: 0.45mm
Key switch Lifetime: 3 mil. operations
Protection Level: IP65, NEMA 4x
Mounting Type: Top panel mounting or Desk Top.
Operating Temperature: -20 °C to +50 °C;
Colors: 4 (Blue, white, grey, black)
G.W.: 1.20KGs
Key Dimensions (print area): 11.0mm x 11.0mm
Dimensions: 389.3mm x 179.2mm (top panel)
TOUCHPAD:
Touchpad cover: Composite
Motion Detection
Method: capacitive
Resolution: 40 counts / mm
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5 V DC ±0.25V
Current rating (active mode): 17 mA
ELECTRICAL DATA:
Supply Voltage: +5V DC +/- 5%
Current Rating: appr. 30mA
EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
EMI: EN 55022: 2010
EMS: EN 55024:2010
Lifespan> 3 years
Interface: PS2, USB available.
OS: All windows, Linux, Unit, Mac OSX
RELIABILITY
RoHS , CE, FCC, ESD
Protection Level: IP65 (front panel)
Key Lifespan >3 million actuations
Touchpad lifespan > 10 million of times
MTBF >50000H
MTTR <30min
